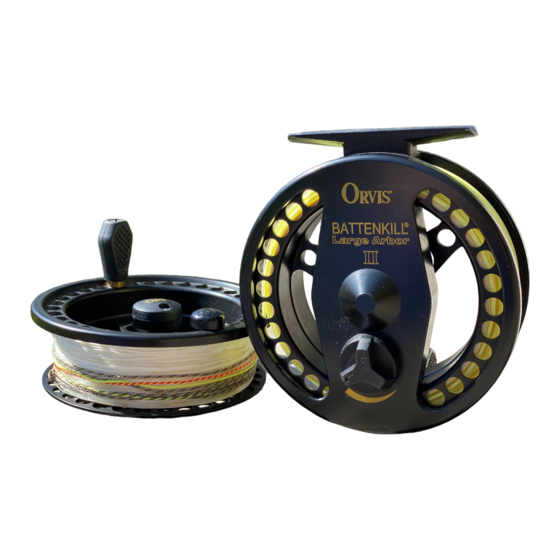

ORVIS Battenkill Large Arbor Trout Quick Start Manual

IntroductIon

With the proven drag system of our Battenkill Mid Arbor Trout
Reel and the benefits of a large arbor reel, the BLA reel offers
maximum line pick up, optimum drag consistency, and superior fish-
stopping power.
• Centre line drag with a carbon and stainless steel surface to fight big
fish
• Precision-machined and anodised from 6061 aircraft-grade aluminum
• Heavily ventilated for optimum weight and balance on your fly rod
• Indexed and numbered drag knob for repeatable drag adjustment
• Easily interchangeable spool

drag operatIon

BLA Trout reels feature a dependable cen-
tre line drag system. To adjust the drag, turn
the knob (figure 1) clockwise to increase
resistance, and counterclockwise to decrease
it. The minimum drag setting should never
be less than the pressure required to pre-
vent over-running of the line on fast runs.
Additional drag may be applied by palming
the spool rim with your fingers or palm. The
easy drag adjustment is infinitely variable,
providing wide-ranging and controllable set-
tings.

SpooL reMoVaL

The spool release is located in the middle
of the reel spool. To remove, depress the
spool release latch while simultaneously lift-
ing the spool out of the reel body.

retrIeVaL conVerSIon

All Battenkill Large Arbor reels have the
drag factory installed for left-hand wind
(figure 2). To change your reel to right-hand
wind, unclip the one-way retainer (part #20)
by squeezing the retaining tags. Remove
one-way bearing (part #21) and flip over. Replace clutch retainer.

routIne MaIntenance

Your new Battenkill Large Arbor reel has been properly lubricated
prior to shipping. However, it should be cleaned and lubricated after
extensive use or after contact with dirt or sand. Your reel should
receive routine cleaning and maintenance at least twice each year.
Lightly lubricate all moving components—handle, centre spindle, and
gear shaft with all-purpose grease, which is available in tackle shops.
Do not put the reel away wet, or into a wet reel case or tackle box.
For extended storage, remove both line and backing and loosen the
drag.
THE ORVIS COMPANY, INC. | CLEARWATER HOUSE | UNIT 28 NORTH WAY
Battenkill Large arbor trout

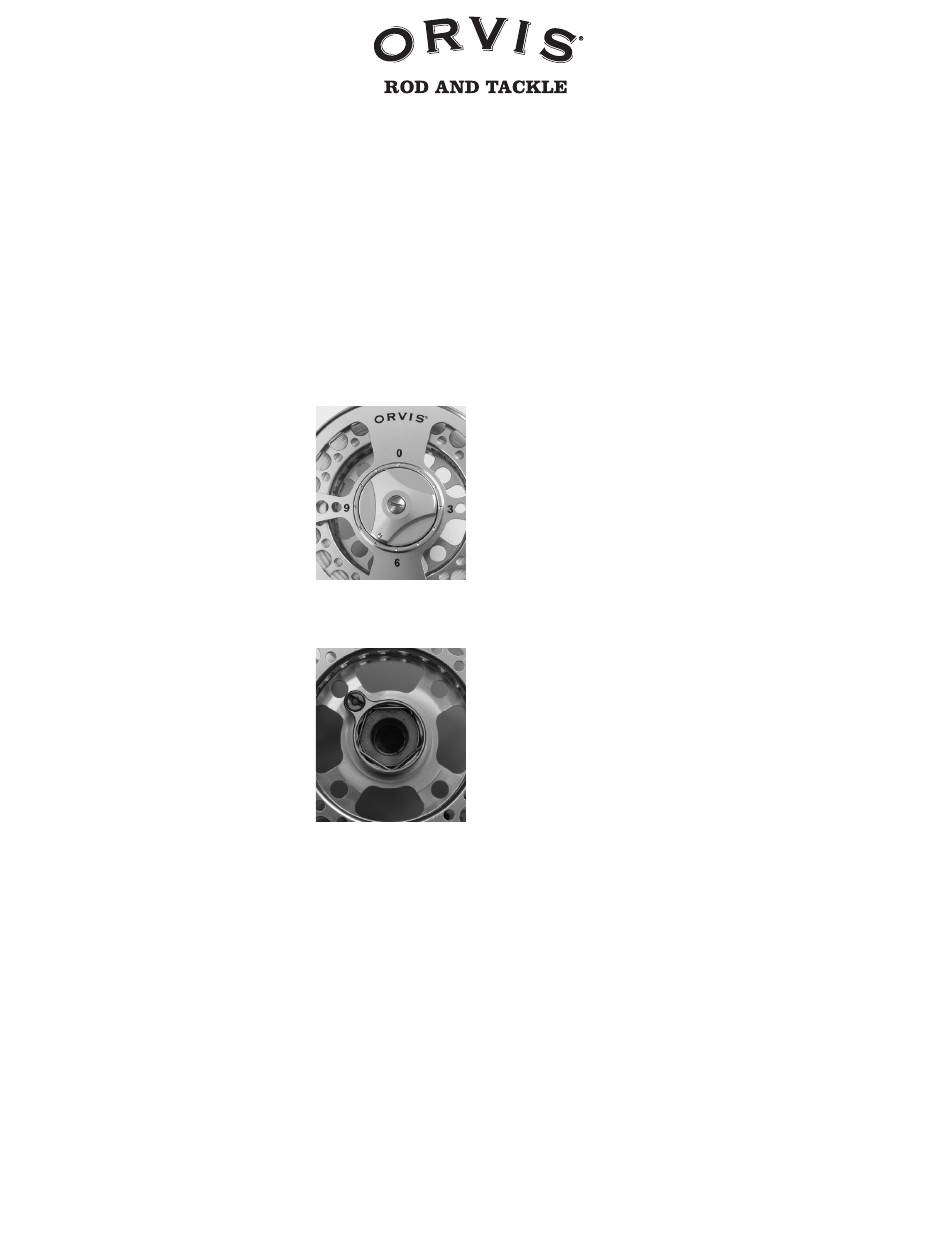

FIGURE 1
