IntroductIon

Features of the Clearwater Classic reel include:
• Corrosion-resistant aluminum alloy construction.
• A reliable disc drag.
• Easily interchangeable spool.
• Left- to right-hand changeover in seconds with absolutely no tools
required.
• Quick switch to silent operation.

drag operatIon

Clearwater Classic reels feature a dependable disc drag system.
To adjust the drag, turn the knob clockwise to increase resistance, and
counter-clockwise to decrease it.The minimum drag setting should
never be less than the pressure required to prevent over-running of the
line on fast runs. Additional drag may be applied by palming the spool
rim with your fingers or palm.
The easy drag adjustment is infinitely variable,
providing wide-ranging and controllable settings.
The drag assembly has been factory-adjusted but
may require some fine tuning after continued use
and wear of the drag components. If drag pressure is
insufficient, the range may be adjusted by using the
following procedure:
1.Turn the drag adjustment knob fully
counter-clockwise.
2. Remove screw A from the outside of the drag knob B.
3. Remove the drag knob.
4.Turn the drag adjustment nut clockwise to increase drag, counter-
clockwise to decrease it.
5. Replace the drag knob in the same position it was when you
removed it and replace screw.
6.Test the drag. If the pressure is still incorrect, the above procedure
may be repeated until the desired range is obtained.

SpooL reMoVaL

The spool release is located in the middle of the
reel spool (figure 1).To remove, depress the spool
release latch, while simultaneously lifting the spool out
of the reel body.

retrIeVaL conVerSIon

All Clearwater Classic reels have the drag factory
installed for left-hand wind (figure 2).To change
your reel to right-hand wind, unclip the drag gear
by squeezing the retaining tags. Remove the gear,
flip it over, and reclip. Arrows on the drag gear
indicate direction of wind. Arrows facing clockwise
indicate left-hand wind. Arrows facing counter-clock-
wise indicate right-hand wind.
THE ORVIS COMPANY INC. | CLEARWATER HOUSE | UNIT 28 NORTH WAY
clearwater classic reel
A
B

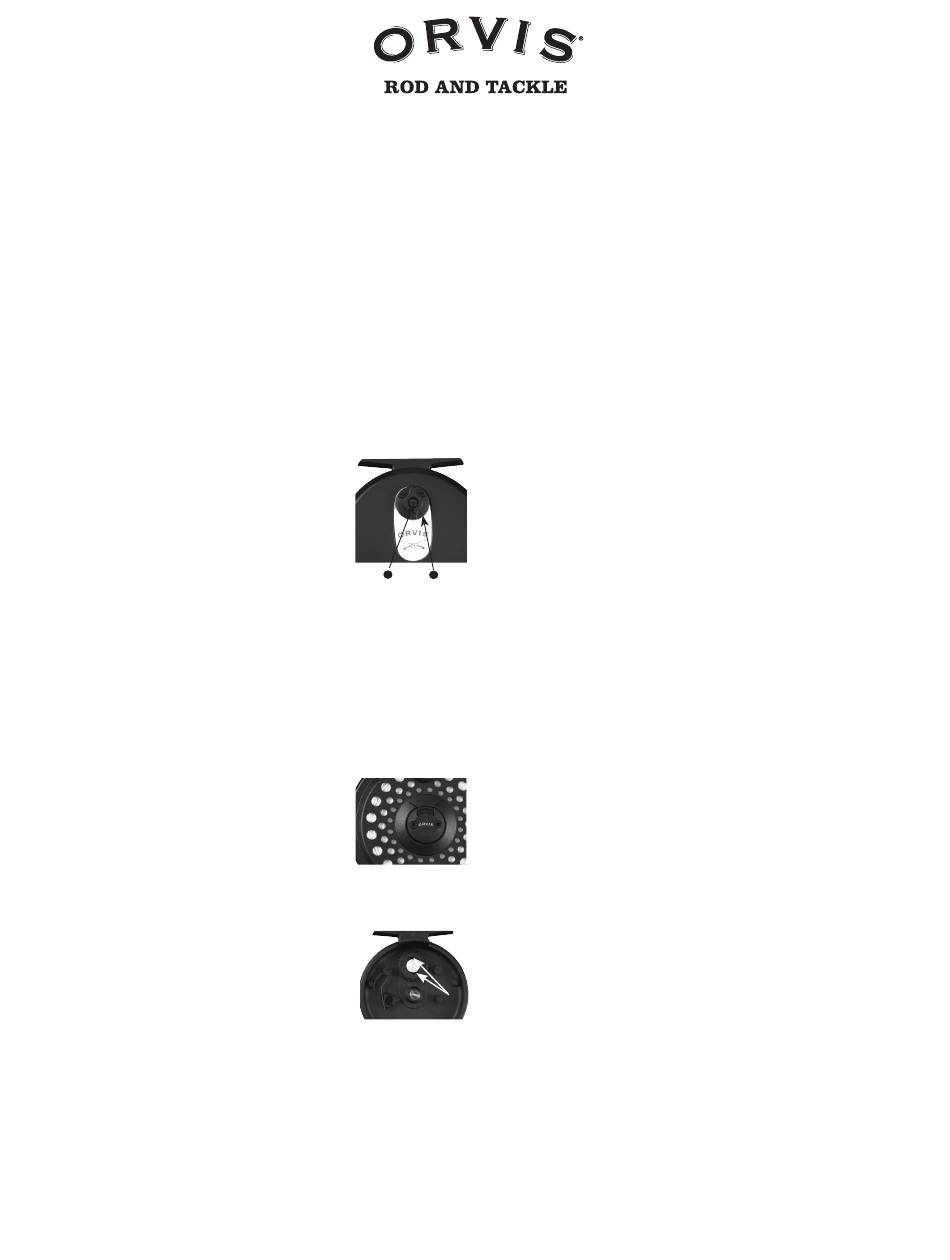

Figure 1
Figure 2
ANDOVER, HAMPSHIRE SP10 5RW | www.orvis.co.uk

routIne MaIntenance

Your new Clearwater Classic reel has been properly lubricated prior
to shipping. However, it should be cleaned and lubricated after extensive
use or after contact with dirt or sand. Your reel should receive routine
cleaning and maintenance at least twice each year. Lightly lubricate
all moving components—handle, centre spindle, and gear shaft with all-
purpose grease, available in tackle shops. After lubrication, check screws
for proper tightness. Do not put the reel away wet, or into a wet reel case
or tackle box. The Clearwater Classic is not recommended for use in salt
or brackish water. For extended storage, remove both line and backing
and loosen the drag.

guarantee

Your Orvis Clearwater Classic reel is unconditionally guaranteed
against defects in materials and workmanship.
If you have any problems, simply send your reel and a
to the following address:
The Orvis Company Inc., Clearwater House, Unit 28 North Way,
Andover, Hampshire SP10 5RW
Your reel will be completely serviced (cleaned, lubricated, and
returned to you postpaid) for a fee of
Damaged reels can be repaired on an individual basis and repair
work will be billed at the hourly shop rate, plus parts. We will provide
a written estimate upon receipt of the reel prior to any work being
done.
QueStIonS?
If you have any questions about the operation and maintenance of
your new reel, Orvis Technical Advisors are always available.
Email: reel_repair@orvis.co.uk
check
£7.95
, plus cost of parts.
£7.95
