ORVIS Vortex V02 Reel Quick Start Manual

INTRODUCTION
Vortex V0 fly reels features include:
2
• Fully machined from 6262 T6 bar stock aerospace-grade aluminum
with an anodised finish for durability.
• More drag surface than any other reel in its class.
• Easily interchangeable spool.
• Left- to right-hand changeover in seconds with absolutely no
tools required, just a coin.
• Smooth and dependable drag system.
• Generous backing capabilities.
DRAG OPERATION
Vortex V0 reels feature a unique external radius drag system to ensure
2
the most surface area in its class.
To adjust the drag, turn the knob clockwise to increase resistance,
and counterclockwise to decrease it.The minimum drag setting should
never be less than the pressure required to prevent over-running of
the line on fast runs. Additional drag may be applied by palming the
spool rim with your fingers or palm.
SPOOL REMOVAL
*Note: Spools for original Vortex reels ARE NOT compatible with
V0 reels.
2
The spool releases with the turning of the screw in the middle of the
reel. (figure 1).To remove, use a coin or appropriately-sized screwdriver
and rotate counterclockwise.The screw will remain in the spool housing
even when fully unthreaded. Lift the spool out of the reel body.
1
RETRIEVAL CONVERSION
Vortex V0 reels have the drag factory installed for left-hand wind.
2
To change your reel to left-hand wind, remove the spool as above.

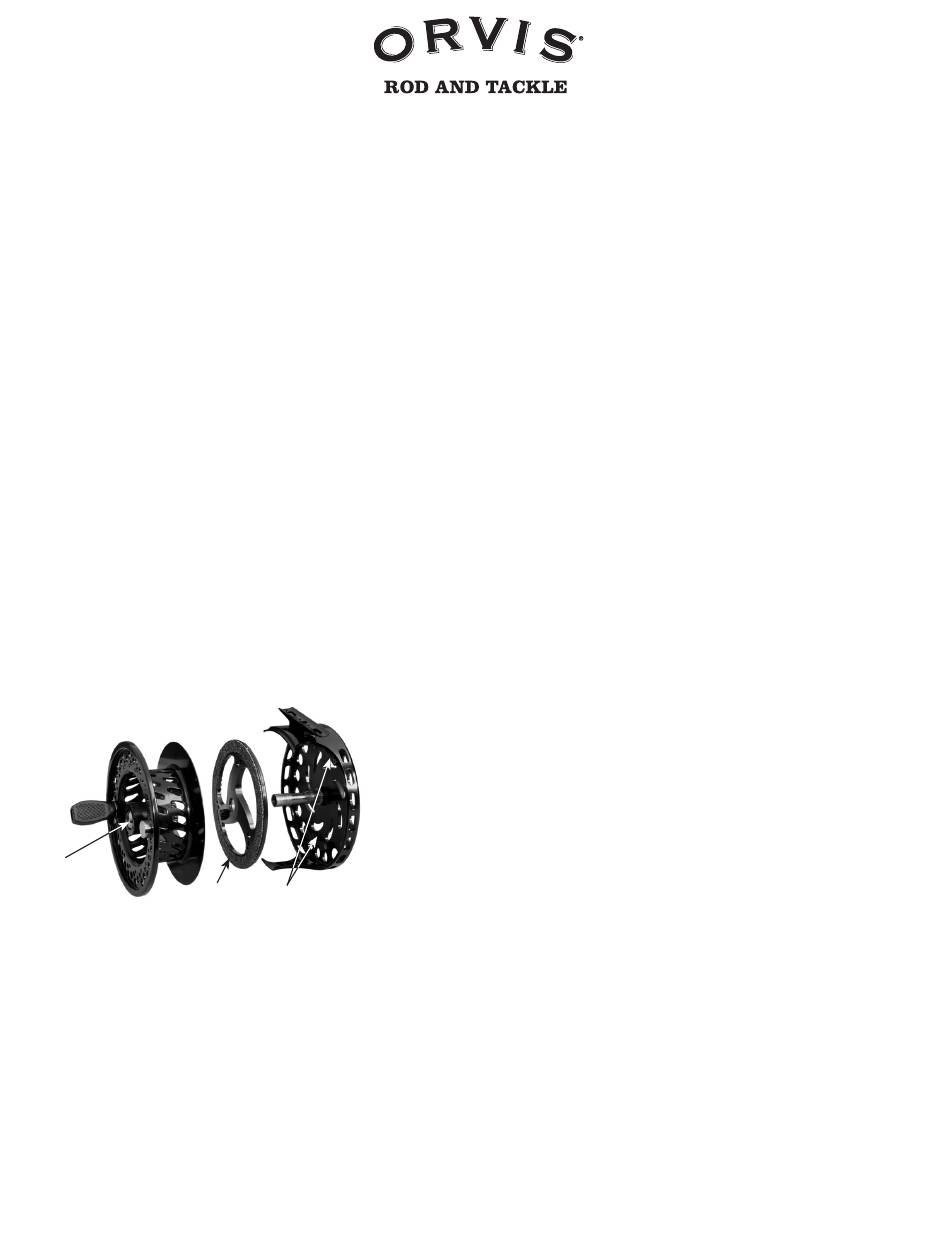

Lift the cork composite drag surface disk (figure 2) off the centre spindle.
You will see two drag engage pawls, one on top and one on bottom
(figure 3). Move the pawl from "L" to "R" on both as indicated on the
pawl housing. Return the cork composite drag surface disk back onto
the spindle.
THE ORVIS COMPANY INC. | CLEARWATER HOUSE | UNIT 28 NORTH WAY
Vortex
2
3
ANDOVER, HAMPSHIRE SP10 5RW | www.orvis.co.uk
Reel
V0
2
ROUTINE MAINTENANCE
Your new Vortex V0
ping. However, it should be cleaned and lubricated after extensive use
or after contact with dirt, sand, or saltwater.Your reel should receive rou-
tine cleaning and maintenance at least twice each year. Lightly lubricate
all moving components—handle, centre spindle, and gear shaft with all-
purpose grease, available in tackle shops. After lubrication, check screws
for proper tightness. Do not put the reel away wet, or into a wet reel case
or tackle box.
Following use in saltwater, the reel should be rinsed in fresh water and
all parts, except drag surfaces, lightly oiled.The body and spool should be
wiped with a lightly oiled cloth.
For extended storage, remove both line and backing and loosen
the drag.
GUARANTEE
Your Orvis V0
materials and workmanship.
If you have any problems, simply send your reel and a
the following address:
A
The Orvis Company Inc., Clearwater House, Unit 28 North Way,
Andover, Hampshire SP10 5R W
If the reel is in any way defective in materials or workmanship, your
repair check will be returned to you at once.
£7.95
Your reel will be completely serviced (cleaned, lubricated, and
returned to you postpaid) for a fee of
Damaged reels can be repaired on an individual basis and repair work
will be billed at the hourly shop rate plus parts.We will provide a written
estimate upon receipt of the reel prior to any work being done.
QUESTIONS?
If you have any questions about the operation and maintenance of
your new reel, Orvis Technical Advisors are always available.
Email: reel_repair@orvis.co.uk
reel has been properly lubricated prior to ship-
2
reel is unconditionally guaranteed against defects in
2
plus cost of parts.
£7.95
check to
£7.95
