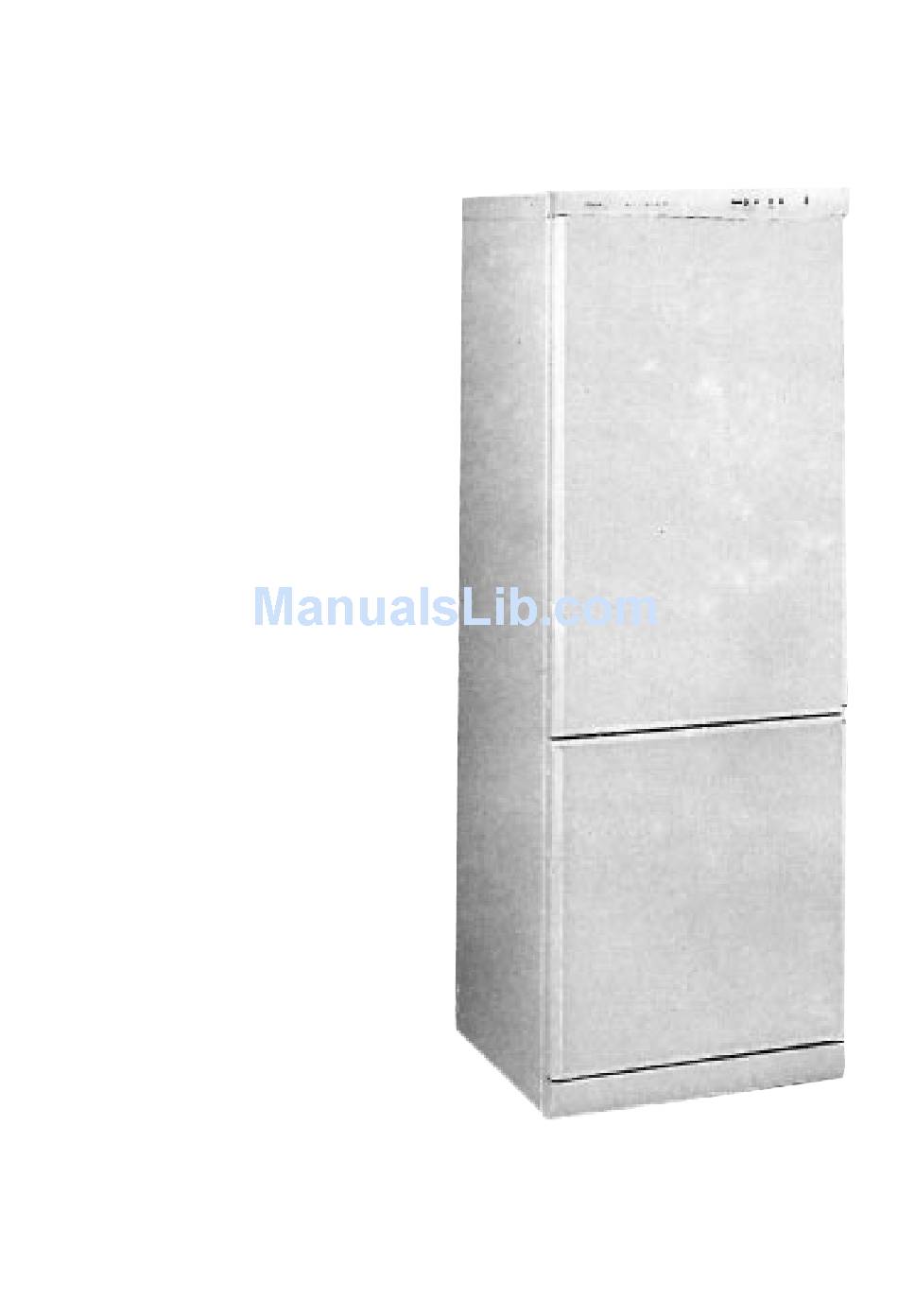

- Page 1 • Manual de instrucciones. • Manual de instruções. • Mode d’emploi. • Operating instructions • Bedienungsanleitung. • Manuale di istruzioni.
-
Page 3: Table Of Contents
Installation ... 2 General Description... 3 Starting up ... 4 Using the refrigerator... 5 Using the freezer ... 7 Cleaning and Maintenance ... 11 Changing the direction of the doors ... 12 Problems ...15 Electrical diagram ... 16 Specifications... 16 If your old refrigerator has a manual or automatic door locking device DO NOT FORGET TO DESTROY OR INCAPACITATE THE LOCKING SYSTEM before throwing it away, in order to... -
Page 4: Installation
INSTALLATION RECOMMENDATIONS Allow air to circulate behind the refrigerator. Do not cover the front grill or top of the refrigerator with any object. If the refrigerator is placed underneath a cupboard, leave a space for air to circulate. Your refrigerator’s climate classification is stated on the specifications plate, and defines the room temperature range for which the cooling unit is designed, at which the apparatus is guaranteed to operate correctly. -
Page 5: General Description
GENERAL DESCRIPTION REFRIGERATOR On/Off buttom Thermostat Specifications Plate NOTE: It is possible that the internal distribution of your appliance does not correspond to the Ventilation grill. figure. FREEZER Pilot light On/Off Super freezing super buttom buttom Thermostat Alarm Ligth bouton Control panel. -
Page 6: Starting Up
REFRIGERATOR Press the on/off buttom The refrigerator will begin operating and the pilot light Pull out the thermostat control, select a colder (MAX) or less cold (MIN) temperature inside the refrigerator. An intermediate position is initially recommended. FREEZER Press the on/off button freezer will begin operating and the pilot light, alarm,... -
Page 7: Using The Refrigerator
USING THE REFRIGERATOR FOOD LEAST COLD AREA INTERMEDIATE AREA COLDEST AREA ATTENTION • The temperature inside the refrigerator can be selected by turning the thermostat control. • Remenber that the temperature is not totally uniform within the interior as a whole and different sections are more suitable for different types of food (as shown in the diagram). - Page 8 USING THE REFRIGERATOR DEFROSTING The refrigerator has an automatic defrosting system and it is not therefore necessary to take any action. The back wall of the refrigerator is normally covered with drops of water or ice. This is completely NORMAL and is part of the automatic defrosting process.
-
Page 9: Using The Freezer
USING THE FREEZER FREEZING FRESH FOOD Place food to be frozen inside the freezer. Press the superfreezing button, (SUPER). The pilot light, light up. 24 hours later press the button , again to disconnect the superfreezing system. The pilot light, , will go off. - Page 10 DIRECTIONS FOR USE YOUR FREEZER FROZEN FOOD PRESERVATION A FEW HINTS • When you buy frozen food in your shop, try to introduce the products into the freezer as soon as possible. • Observe the preservation time that appear on the product packing, taking into account this a •...
- Page 11 USING THE FREEZER DEFROSTING FOOD Fill the trays inside the freezer three quarters full of water. Place the trays in the freezer, preferably in the top section. Once frozen, the ice cubes can be removed by gently twisting the trays. The same method should not be used for defrosting all types of food.
- Page 12 USING THE FREEZER DEFROSTING AND CLEANING Press the on/off button. The pilot light will go out and the freezer will be turned off. Remove frozen food, wrap it in newspaper and place it in the refrigerator as an excessive rise in temperature could reduce the food conservation period.
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE ADVICE The refrigerator should be disconnected before cleaning the inside. Avoid cleaning the top with cloth which is excessively wet or spilling water onto the top part. This could damage the refrigerator. TEMPORARILY TURNING OFF THE REFRIGERATOR If you wish to disconnect the refrigerator for a prolonged period, when going on holiday or for any other reason, remenber that the refrigerator and freezer operate completely independently and either of them can be disconnected... -
Page 14: Changing The Direction Of The Doors
CHANGING THE DIRECTION OF DOOR OPENING Remove the control panel casing by inserting the point of a screwdriver into the retaining grooves and exerting leverage until the rim is freed. Remove the upper hinge after first removing the retaining screw. Grasp the upper door with both hands and remove it from the refrigerator. - Page 15 CHANGING THE DIRECTION OF DOOR OPENING Replace the lower skirting. Locate the lower door spindle and placing it on the lower hinge spindle. Remove the cover of the left-hand side lower door spindle and place it on the right-hand side (panellable models do not have this cover).
- Page 16 Fit the cabinet control panel housing over the attachment lugs and press it into place. Release the opening regulator on the right door and place it on the left door by screwing carefully into the holes drilled into the door. Hold the top with both hands and fit it on to the middle hinge shaft, then fit the top hinge shaft into its housing.
-
Page 17: Problems
PROBLEM The refrigerator is not working The refrigerator does not get properly cold Drops of water on the rear wall of the refrigerator Water shows up of the bottom of the refrigerator A large amount of ice forms on the walls and shelves of the freezer The refrigerator light does not come on... -
Page 18: Electrical Diagram
ELECTRIC DIAGRAM 1.- REFRIGERATOR BUTTON SWITCH. 2.- REFRIGERATOR PILOT LIGHT. 3.- REFRIGERATOR THERMOSTAT. 4.- REFRIGERATOR LIGHT SWITCH. 5.- REFRIGERATOR LIGHT. 6.- THERMAL PROTECTOR (LOCATED INTERNALLY IN DANFOSS COMPRESSOR). 7.- REFRIGERATOR COMPRESSOR. 8.- PTC STARTER. 9.- FREEZER BUTTON SWITCH. 10.- FREEZER PILOT LIGHT. 11.- FREEZER THERMOSTAT.
