OPERATION MANUAL
SM52-B
(
)
Bread Slicer

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM52-B and is the answer not in the manual?

Questions and answers

Related Manuals for sinmag SM52-B

Summary of Contents for sinmag SM52-B

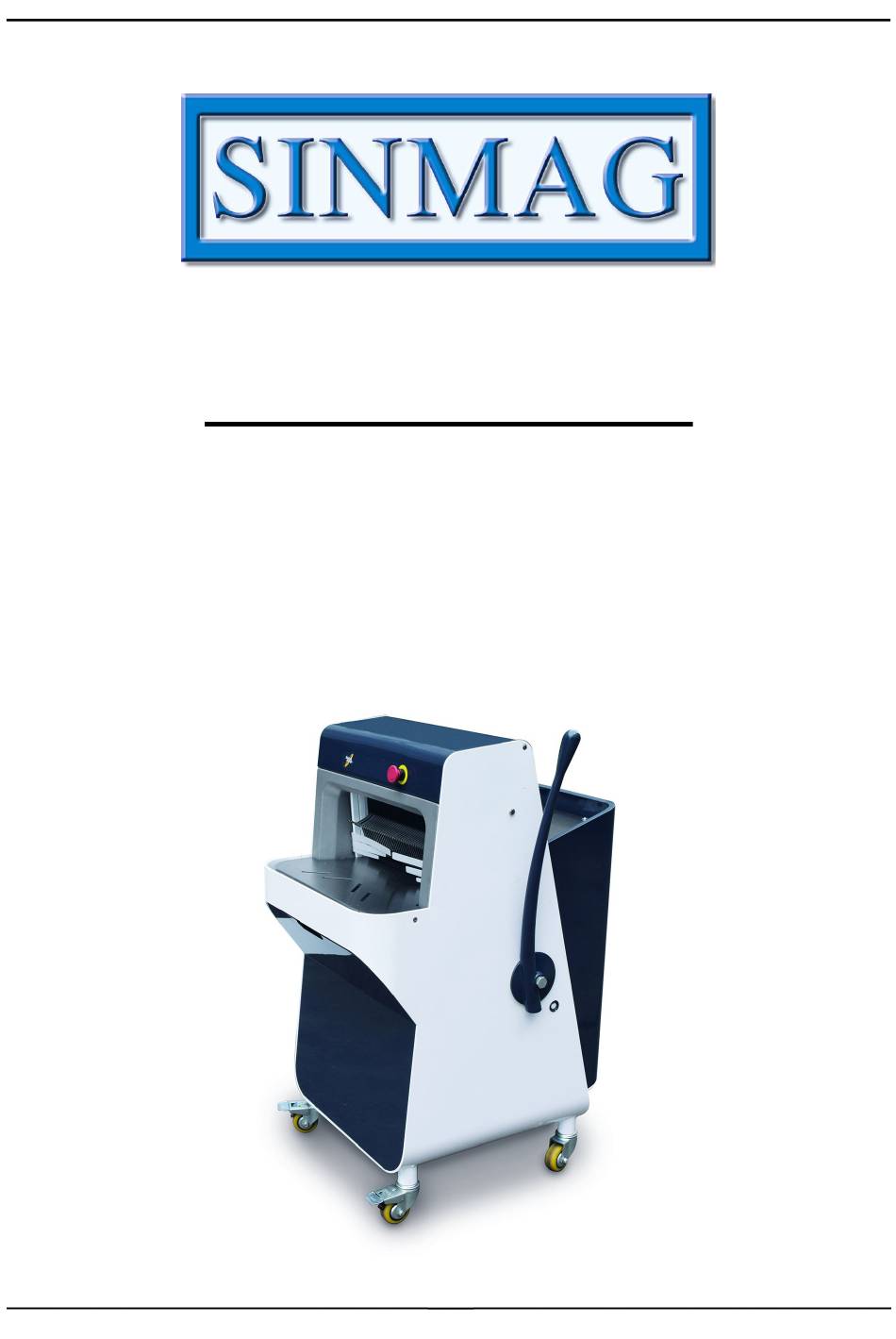

  • Page 1 OPERATION MANUAL SM52-B Bread Slicer...
  • Page 2 NOTICE The use of this or any industrial equipment may involve hazards such as hot surface, sharp object, or danger from exposure to the electrical power. This manual is provided to assist you in the safe and efficient use of our equipment. All equipments, whether considered hazardous or not, should be used in accordance with principles of good manufacturing practice.

  • Page 3: Table Of Contents

    CONTENTS LIST 1. Introduction•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(3) 2. Safety Informations•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(5) 3. Installation••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(9) 4. Operation•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(11) 5. Cleaning and Maintenance••••••••••••••••••••••••••••••••••••••••••••••••••••••••(14) 6. Troubleshooting••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(17) 7. Spare Parts List••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(18) 8. Wiring Diagram••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(24) - 2 -...

  • Page 4: Introduction

    This handbook aims to introduce how to install, operate and maintain the Bread Slicer SM52-B. Thanks for choosing SINMAG as your supplier. Any question, please contact our local office or distributor that will provide you with instant and ideal service.
  • Page 5 1. INTRODUCTION 1.3 Production Description This Bread Slicer has been carefully designed to service today’s modern bakery. This machine is used for slicing the toast and baguette etc. It saves labor that only one person is needed for operation. And it can avoid unevenness slicing made by manual work to ensure that bread is neatly and accurately sliced up.

  • Page 6: Safety Informations

    2. SAFETY INFORMATIONS 2.1 Safety Symbols For your safety, please pay attention to the following symbol as marked on the machine: This label warns that only qualified service person can access this position and the operator must disconnect the power before carrying out any cleaning or servicing.
  • Page 7 2. SAFETY INFORMATIONS 2.2 Safety Precautions User Instructions and Precautions The manufacturer declines all responsibility for any injury to persons or animals or damage to objects resulting from the failure to observe any of the previous or following information and instructions on the use or maintenance of the machine: 1.
  • Page 8 2. SAFETY INFORMATIONS 2.3 Definitions According to this manual, the following definitions are used: 1. "Danger Area" Any area inside or near the machine which might be dangerous for a bystander. 2. "Bystander" Any person entirely or partly situated in a ‘Danger Area’. 3.
  • Page 9 2. SAFETY INFORMATIONS 11. Do not use machine with temporary electrical connections or non-insulated cables. 12. Periodically check the state of the power cable and the cable clamp on the machine body, replace it as soon as is necessary by qualified personnel. 13.

  • Page 10: Installation

    3. INSTALLATION 3.1 General Installation Requirements NOTE: It is most important that this machine is installed correctly and that the operation is correct before use. Installation shall comply with local electrical, fire, health and safety requirements. This Slicer is designed to provide years of satisfactory service. Correct installation is essential to achieve the best performance, efficiency and trouble-free operation.
  • Page 11 3. INSTALLATION 3.4 Location 1. Select a location for the Slicer with a minimum of 0.6m space around the machine for operating, cleaning and servicing. 2. Position the slicer in its approximate working position. The slicer must be installed on a flat, solid and dry floor. 3.

  • Page 12: Operation

    4. OPERATION 4.1 Operational Safety Precaution The machine must be placed on flat level floor. Cleaning of machine should only be carried out with damp cloth. Buckets of water or a hose should not be used. 3. Take all possible precautions against the risk of creating dust: 1).
  • Page 13 4. OPERATION 6. Cleaning should not take place during operation. The machine must be connected to the correct power outlet. 8. Stop the operation immediately in the event of an accident, breakdown or blockage. 9. Observe and carry out all preventative maintenance as shown in ‘Cleaning and Maintenance’...
  • Page 14 4. OPERATION 4.2 Before Operation Before starting the machine, carry out a general safety check: 1. Check the slicer is clear of any objects, all switches are off and any danger area is clear of bystanders. 2. Area must be clean and free from obstructions, e.g. nothing placed on the rear plate.

  • Page 15: Cleaning And Maintenance

    5. CLEANING AND MAINTENANCE Warning Ensure the machine is isolated from the power supply before commencing cleaning or maintenance. Caution This unit is not water proof. Do not use water jet spray to clean interior or exterior of this unit. 5.1 Daily Cleaning It must be done by a trained user: 1.
  • Page 16 5. CLEANING AND MAINTENANCE 5.3 How to change the blades: 1. Unscrew the bolts on both sides of the machine: 2. Remove the front platform. 3. Unscrew the bolts as shown in following photos. - 15 -...
  • Page 17 5. CLEANING AND MAINTENANCE 4. Lift the top cover. 5. Unscrew the bolts on the bottom of the knives frame. 6. Unscrew the top bolts to take down the knives frame. 7. Unscrew the bolts to take down and change the blades. - 16 -...

  • Page 18: Troubleshooting

    6. TROUBLE SHOOTING Note: Always get an authorized dealer to carry out maintenance work on your machine. The machine is completely stopped: 1. Did you plug it in? 2. Is the power supply coming to the socket? The slice thickness is irregular: 1.

  • Page 19: Spare Parts List

    7. SPARE PARTS LIST - 18 -...
  • Page 20 7. SPARE PARTS LIST - 19 -...
  • Page 21 7. SPARE PARTS LIST - 20 -...
  • Page 22 7. SPARE PARTS LIST Part Number Part Name Part Code Qty. Machine Body 11PC16-100-00A Back Cover 11PC16-101-01 Front Cover 11PC16-104-01 Back Plate 12PC16-130-03 Top Cover 11PC16-103-01 Control Panel 16MBLB52-A Emergency Stop 16KGLZA2-BS54 Platform 12PC16-122-01 Rear Clamp Plate 12PC16-111-01 12PC16-122-01(9.5) 12PC16-122-01(10.5) Rear Tilt Plate 12PC16-122-01(11.5) 12PC16-122-01(12.5)
  • Page 23 7. SPARE PARTS LIST 11PC16-114-00(9.5) 11PC16-114-00(10.5) Knives Frame 11PC16-114-00(11.5) 11PC16-114-00(12.5) 11PC16-114-00(13.5) 11PC16-115-00(9.5) 11PC16-115-00(10.5) Knives Frame 11PC16-115-00(11.5) 11PC16-115-00(12.5) 11PC16-115-00(13.5) 12PC16-6-05F(9.5) 12PC16-45-09(10.5) Screw Fixing Plate 12PC16-45-10(11.5) 12PC16-45-11(12.5) 12PC16-45-12(13.5) Knives Fixing Plate 12RA18-11-01TA Knives Fixing Plate 12RA18-11-01TB Threaded Rod 13RA18-11-07 Knife 14PC16-6-9J-1 Bearing House 14PC16-470-01 Bearing 15ZCL6204VV...
  • Page 24 7. SPARE PARTS LIST Pulley Base 14PC16-13-02 Belt 15PDL-RECMF6310 Small Pulley 14PC16-3-05 Motor 16MDLB52-B Motor Plate 11PC16-126-01 Contactor 16JCQS-P12 Overload Relay 16JDQSDF Bearing 15ZCLZ2012 Bush 13PC16-54-01 Connection Rod 11PC16-107-00 Pusher Assembly 11PC16-124-00 Slide Block 13PC16-110-01 Spring 14PC16-5-07 Microswitch 16KGLWLD2 Pusher Fixer 12PC16-109-01T Fixing Plate 12PC16-22-01L...

  • Page 25: Wiring Diagram

    8. WIRING DIAGRAM - 24 -...
