OPERATION MANUAL FOR SPIRAL MIXER
MODEL SM-120a
1. BRIEF INTRODUCTION AND SPECIFICATION ······················· 2
2. TRANSPORTATION······································································ 4
3. INSTALLATION ············································································ 5
4. SAFETY INSTRUCTIONS···························································· 7
5. OPERATION PANEL····································································· 8
6. HYDRAULIC SYSTEM ······························································ 12
7. CLEANING AND MAINTENANCE··········································· 15
8. TROUBLESHOOTING································································ 15
9. ELECTRIC DIAGRAM ······························································· 17
10. PARTS LIST ··············································································· 18
1
Advertisement
Table of Contents
Related Manuals for sinmag SM-120a
Summary of Contents for sinmag SM-120a
-
Page 1: Table Of Contents
OPERATION MANUAL FOR SPIRAL MIXER MODEL SM-120a 1. BRIEF INTRODUCTION AND SPECIFICATION ······················· 2 2. TRANSPORTATION······································································ 4 3. INSTALLATION ············································································ 5 4. SAFETY INSTRUCTIONS···························································· 7 5. OPERATION PANEL····································································· 8 6. HYDRAULIC SYSTEM ······························································ 12 7. CLEANING AND MAINTENANCE··········································· 15 8. TROUBLESHOOTING································································ 15 9. -
Page 2: Brief Introduction And Specification

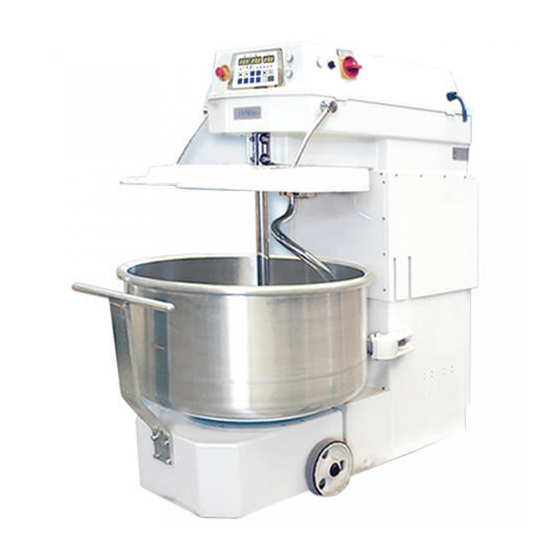

1. BRIEF INTRODUCTION AND SPECIFICATION The SM-200a and SM-120a are spiral mixer with removable bowl suitable for big production. The drawing below show: parts of the machine for your reference: Figure 1 item Item Top cover Hook Operation panel Trolley... - Page 3 1780×1020×1330 (Length×Width×Height) Table 2 Remark: SM-120a & SM120a-S ， SM-200a & SM-200a-S share the same transportation, installation, operation and components of machine. The difference between the two is: SM-120a&SM-200a have their operation panel and electric box in their top position while SM120a-S&SM-200a-S have their operation panel and electric box in a separate stand for easy approach.
-
Page 4: Transportation
2. TRANSPORTATION WOODEN PACKAGE WEIGHT: 1470Kg 1) Check wooden case to see if any damage before unpack the case. 2) After unpacking of wooden case top and sides, use strong nylon rope to tie to the four rings at bottom leveling screws as shown in Figure 2.Then use crane to lift the machine from bottom wooden board and move to the installation position. -
Page 5: Installation
3. INSTALLATION 1) Select a horizontal and plain floor to install the machine. 2) Make sure the bottom plate of the machine is parallel with floor, if not, you can adjust it by leveling screws. 3) Put plate washers to support the bottom plate of the machine. 4) Take our leveling screws. - Page 6 7) Push “UP” button. The head of the machine will move up to the top position and stop automatically. Loose the adjustment screws of the bowl position.(see Figure 5) Figure 4 8) Pull the bowl out of the machine and push the bowl into the machine. Repeat as above until the bowl can be pushed in and pulled out easily.
-
Page 7: Safety Instructions
4. SAFETY INSTRUCTIONS 1) Do not overload the mixer. If the dough is loaded with less water content than 58%, please reduce flour and dough capacity. 2) Please read this operation manual carefully before operation or maintenance. The nameplate should be taken attention as well. 3) All the safety cover and side panel should be closed during operation. -
Page 8: Operation Panel
5. OPERATION PANEL Figure 6 DESCRIPTION 5.1.1 TIMERS On top of the operation panel, there are two timers: Timer Ⅰ is for slow speed. Timer Ⅱ is for fast speed. Each Timers has there digits as below A and B is minutes. C is 10 seconds 0.1 is 10 seconds 0.2 is 20 seconds... - Page 9 When the key is pressed, timers will return to the set time. 5.1.2 INDICATION LAMPS To show the following operation condition of the spiral mixer. a) AUTO/MANUAL condition: When AUTO lamp lights up, it is in AUTO operation. When MANUAL lamp lights up, it is in MANUAL operation. b) Bowl direction condition: When lamp lights up, the bowl is in FORWORD direction, when...
- Page 10 speed. B) Press key below “Ⅱ” timer to set the desired time for fast speed. C) Press key until the AUTO lamp lights up. D) Press key until lamp lights up. E) Press key to start the machine. After the above procedure, the machine starts operation. It will run at slow speed until “Ⅰ”...
- Page 11 the mixing position. 4) Set the mixing time, and start the machine. 5) The mixer stops automatically when it finishes mixing cycle. Press “UP” to move the head up to the top position. 6) Pull out the bowl. 7) Push another bowl into the machine. Remark: 1) Move the head of the machine up and down at least once a time before daily use.
-
Page 12: Hydraulic System
6. HYDRAULIC SYSTEM Figure 8 hydraulic system Figure 7 hydraulic system 1. Start the machine and hydraulic system Turn on the power, press “UP” or “DOWN” button, the motor will run and the hydraulic system start to work. 2. Head up Press “UP”... - Page 13 3. Head down Press “DOWN” button. The cylinder move downward to bring down mixer head to mixing position. 4. How can I do if the head move neither up nor down? Check the oil whether it is enough in oil tank. Open the throttle valve.
- Page 14 pressure gauge showed 200 Kg/cm above, and keep it for half an hour, if the pressure does not go down below 170 Kg/cm within half an hour, it is indicated that the check valve work well, if the pressure go down below 170 Kg/cm within half an hour, it is indicated that the check valve work with problems, we suggest you should fix or change it.
-
Page 15: Cleaning And Maintenance
7. CLEANING AND MAINTENANCE Use the wet cloth to clean the machine after daily use, do not wash it with water directly. Clean the splashed flour thoroughly which may lie in the top of the clamping block, safety cover, etc. Clear the dust in the top cover of the spiral mixer very often. - Page 16 8. Main shaft can not stop Check if there any damage on Should carried on professional emergency button. electricians Check if there is short circuit on contactor. 7. Main shaft can not work Check if any damage on contactor Should carried on professional continuously Check if any abnormal on motor.
-
Page 17: Electric Diagram
9. ELECTRIC DIAGRAM... -
Page 18: Parts List
10. PARTS LIST...
