INIM Flex5/DAC Quick Start Manual

Alternating current output expansion

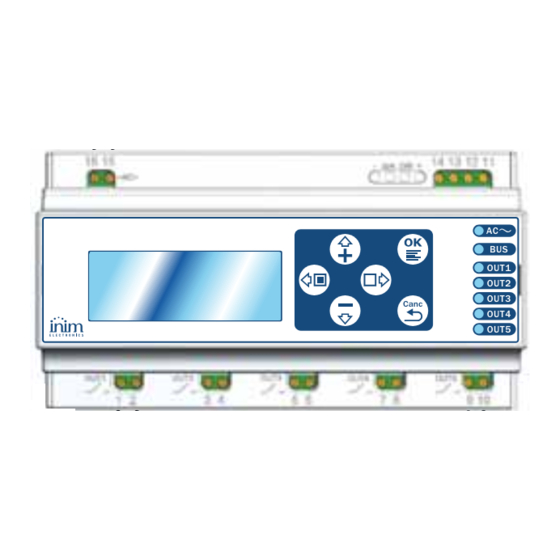

The Flex5/DAC provides 5 terminals for controlling both AC and DC loads.
Each terminal can be configured as an output with the following attribute type:
• Relay, dry contact for AC or DC devices of up to 10A
• TRIAC ON/OFF, electronic contact that functions as a relay for AC devices up to 3.5A
maximum
• TRIAC dimmer, dimmer contact for power-choke type AC devices of up to 3.5A
Each terminal has a sensor that measures the current (both AC and DC) absorbed by
the load and ensures that the terminal is galvanically isolated from the rest of the
board.
From the measurements performed on the board and for each of the terminals, the usable
electrical parameters are provided both on the Flex5/DAC display (by navigating with the
right/left keys) and on the Alien user interface (through the "Commands" section) and via
management software for INIM systems:
• Supplied voltage to external load
• Power absorption from external load
The electrical power value is calculated using the measure of the current drawn and
the values of the set or effective voltage, as in the case of the connection with the
primary power-supply network.
• Phase displacement or power factor (PF), measured exclusively for AC loads with
non-dimmable mains voltage and only when phase and neutral are connected to
expansion through terminals 15 and 16
• Percentage of the supplied power with respect to the maximum possible, measured
exclusively for dimmable loads.
• Consumption, in KWh
The consumption can be viewed only on the FLEX5/DAC display and is supplied as a
total ("KWh TOT"), as partial ("KWh Pr1" and "KWh Pr2", two partials resettable from
the menu) for each terminal and for all devices ("BOARD TOT").
For a detailed description of the functionality and configuration of a FLEX5/DAC in a
INIM intrusion control system please refer to the installation manual of the control
panel.
Power supply voltage
Range of the voltage
connectible to the OUTx
output
Maximum sustainable load
from each output
Operating environmental
conditions
Dimensions including enclosure (W x H x D)
DCMIINIEFLEX5DAC-R110-20160912
Flex5/DAC
Table 1: Flex5/DAC - electrical and mechanical features
Voltage connectible to the AC~ input
Continuous Current (relay
Pollution Degree
Maximum current draw
Isolation class
DIN-rail mount
Weight including enclosure

Technical description

nominal
range
Alternating Current
use)
relay output
triac ON/OFF output
triac dimmer output
temperature
relative humidity
FLEX5/DAC
TERMINAL 01
VOLTAGE [V] 218
POWER [W] 0050
POWER FACTOR 1.0
TERMINAL 01
KWh Pr1 00000012
KWh Pr2 00000344
KWh TOT 00003814
1
13.8V
from 9 to 16V
115/230V~ -15% +10%
50/60Hz
from 0 to 253V~, 50/60Hz
from 0 to 253V @0.35A
from 0 to 28V @10A
10A, PF=1
3.5A, PF=1
3.5A, PF=1
from -10 to +40°C
75% without condensation
2
200mA
II
9 module enclosure
158 x 88 x 58.5 mm
300g
