Netzsteckdose auf CPS-Experimentierplatte zur Spannungsver-
sorgung von CPS-Experimentiergeräten, die 230 V Wechselspan-
nung benötigen. Die Steckdose ist schaltbar durch Brücken-
stecker, TTL-Signal, SPS (Speicherprogrammierbare Steue-
rung) und Kontaktthermometer.
1
Sicherheitshinweise
Vorsicht beim Experimentieren mit Wasser und aggressiven
Flüssigkeiten.
Maximale Belastbarkeit des Schaltrelais beachten!
Hauptschalter erst einschalten, wenn Gerät vollständig be-
schaltet ist
2
Beschreibung
2.1 Lieferumfang
Spannungsversorgung auf Experimentierplatte, bestehend aus:

Hauptschalter
Feinsicherung, T 6,3 A
!
4-mm-Buchsen zum Anschluß eines Brückensteckers oder
der SPS
"
Anschluß für Kontaktthermometer (666 195)
#
4-mm-TTL-Eingang (z. B. für Anschluß an digitalen Aus-
gang eines CASSY-Interfaces)
$
Leuchtdiode als Betriebszustandsanzeige
%
230 V-Steckdose zur Spannungsversorgung der zu schal-
tenden Endgeräte
&
Netzkabel auf der Rückseite der Experimentierplatte
2.2 Technische Daten
Spannungsversorgung: 230 V/50 Hz
Sicherung: Feinsicherung T 6,3 A
Schaltleistung des Relais: max. 1200 VA
Abmessungen (gesamt): 100 x 297 x 115mm
Gewicht: 0,7 kg
Technik
Gebrauchsanweisung
Instruction Sheet
CPS-Spannungsversorgung, schaltbar
CPS Voltage Supply, Switchable

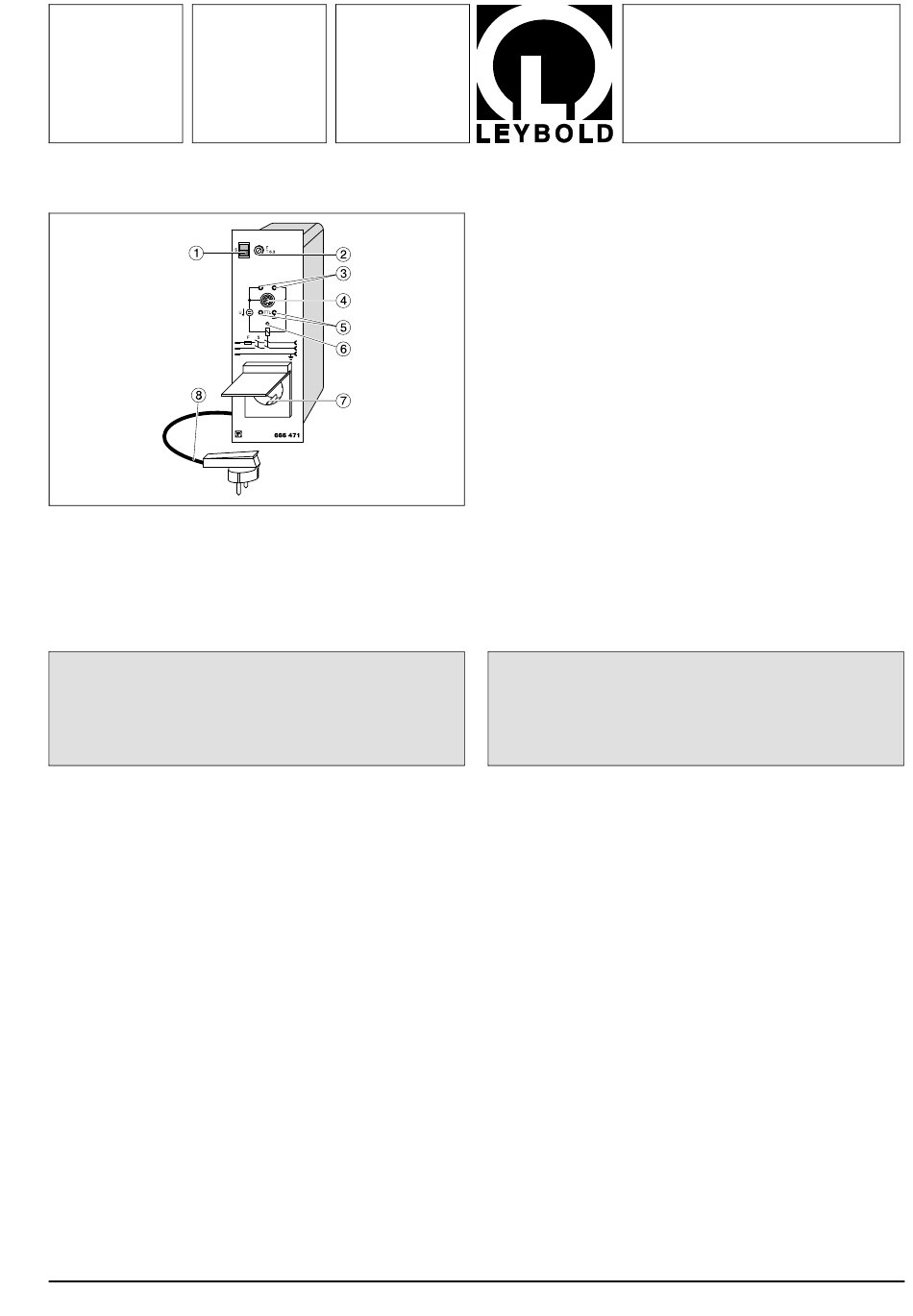

Fig. 1
Mains socket on CPS-panel for voltage supply of CPS-experiment
apparatus requiring 230 V AC. The socket is switchable using a
bridging plug, TTL-signal, programmable logic control (PLC) and
contact thermometer.
1
Safety notes
Use caution when experimenting with water and aggressive
liquids.
Observe the maximum load capacity of the switching relay.
Do not switch on the main switch until the device has been
completely connected.
2
Description
2.1 Scope of supply
Voltage supply on chemistry panel, consisting of:

Main switch
Miniature fuse, T 6.3 A
!
4-mm sockets for connecting a bridging plug or the PLC
"
Connection for contact thermometer (666 195)
#
4-mm TTL input (e.g. for connection to the digital output of
$
a CASSY interface)
LED as operating indicator
%
230 V socket for voltage supply of the end unit to be
&
switched
Power lead on rear of chemistry panel
2.2 Technical data
Voltage supply: 230 V/50 Hz
Fuse: miniature fuse T 6.3 A
Relay switching power: max. 1200 VA
Dimensions (overall): 100 x 297 x 115 mm
Weight: 0.7 kg
