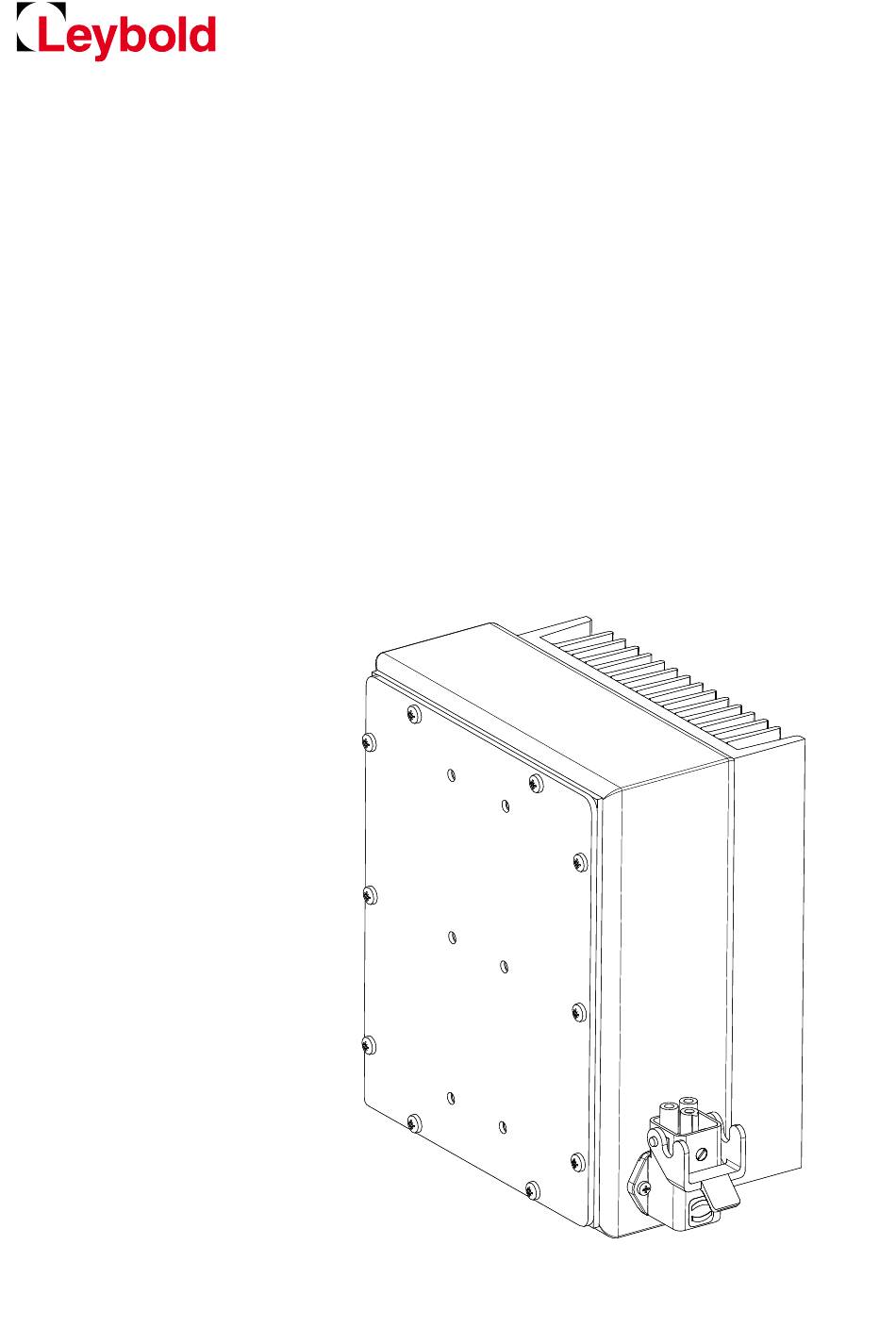

TURBO.POWER 800
Power supply
Operating instructions 300903162_002
Part No. 800100V0010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TURBO.POWER 800 and is the answer not in the manual?

Questions and answers
