LEYBOLD 737 01 Instruction Sheet

Gunn oscillator

Instruction sheet

Gunn Oscillator

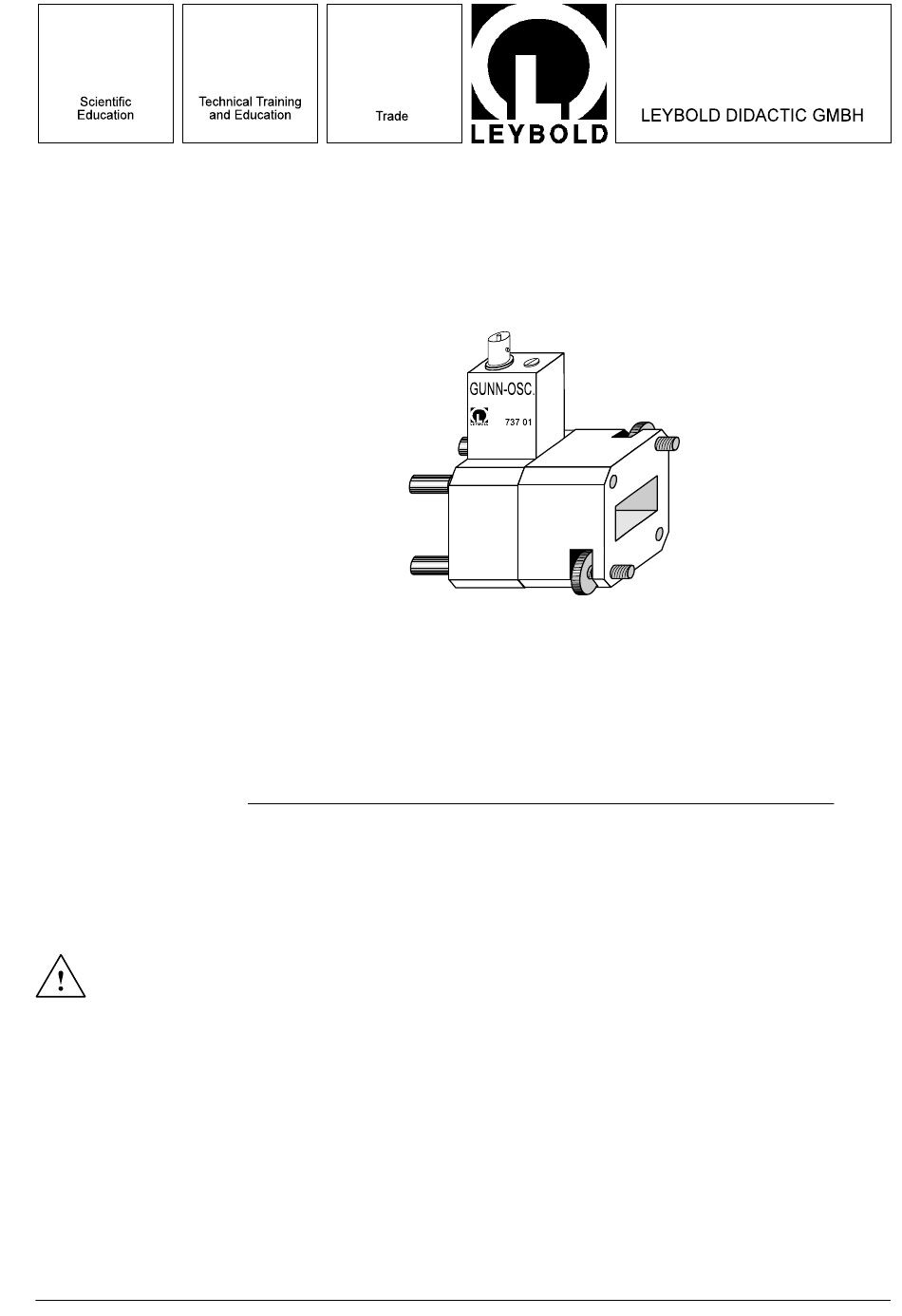

Fig. 1

Please read this instruction sheet carefully before putting the unit into operation!

Prescribed use

The Gunn oscillator is used to generate microwave power for experiment purposes in voca-

tional training and education.

• Avoid looking directly into the end of the radiating waveguide.

• Any eventual disassembly of the oscillator during experimentation into its 4 main com-

ponents is performed using the quick connectors and the thumb screws. Any further di-

sassembly of the componets may not be carried out.

• During operation make sure that all of the components of the Gunn oscillator are securely

fastened, i.e. tighten the thumb screws securely.

• The DC power supply of the Gunn oscillator may only be supplied using the LD power

supply equipment. This rules out any accidental interchanging of the polarity. Any excess

voltage – even in the form of a "brief voltage surge" – leads to irreparable damage to the

Gunn diode.

Bb 6/98

737 01

Table of Contents

Do you have a question about the 737 01 and is the answer not in the manual?

Page 1 Bb 6/98 Instruction sheet Gunn Oscillator 737 01 Fig. 1 Please read this instruction sheet carefully before putting the unit into operation! Prescribed use The Gunn oscillator is used to generate microwave power for experiment purposes in voca- tional training and education.
Page 2 Fig. 2: Components of the Gunn oscillator Gunn diode module with: Metal post (incl. Gunn diode) Dielectric tuning screw BNC socket Rear housing wall Diaphragm with aperture Adapter 2 Description The equipment set MTS 7.4.1 contains a completely assembled Gunn oscillator (c.f. Fig. 1) for a fixed frequency of 9.40 GHz.
Page 3 Fig. 3: DC circuit of the Gunn oscillator Gunn diode Upper and lower section of the metal post Low-pass filter Internal conductor of the BNC socket External conductor of the BNC socket 3 Technical specifications Operating DC voltage of the Gunn-diode: 8 bis 10 V Operating DC current: 115 bis 150 mA...
