Savant IP Audio Micro Aperature-4 Quick Reference Manual

IP Audio Micro Aperature-4: Speaker Set/Add-on Pair [EDG-4-AVB-x-00]
Quick Reference Guide
Products
IP Audio Micro Aperture 4: Speaker set (round)
IP Audio Micro Aperture 4: Speaker set (square)
IP Audio Micro Aperture 4: Add-on Pair (round)
IP Audio Micro Aperture 4: Add-on Pair (square)
Box Contents (EDG-4-AVB-x)
(1) IP Audio PoE Speaker with internal amplifiers
(1) IP Audio Satellite Speaker
(2) 4" Ceiling Mount (093-3105-00)
(1) Cutout Template (009-1769-00 or 009-1700-00)
(1) Product Regulatory Insert (009-1745-00)
Box Contents (EDG-4-SAT-x)
(2) IP Audio Satellite Speaker
(2) 4" Ceiling Mount (093-3105-00)
(1) Cutout Template (009-1769-00 or 009-1770-00)
(1) Product Regulatory Insert (009-1745-00)

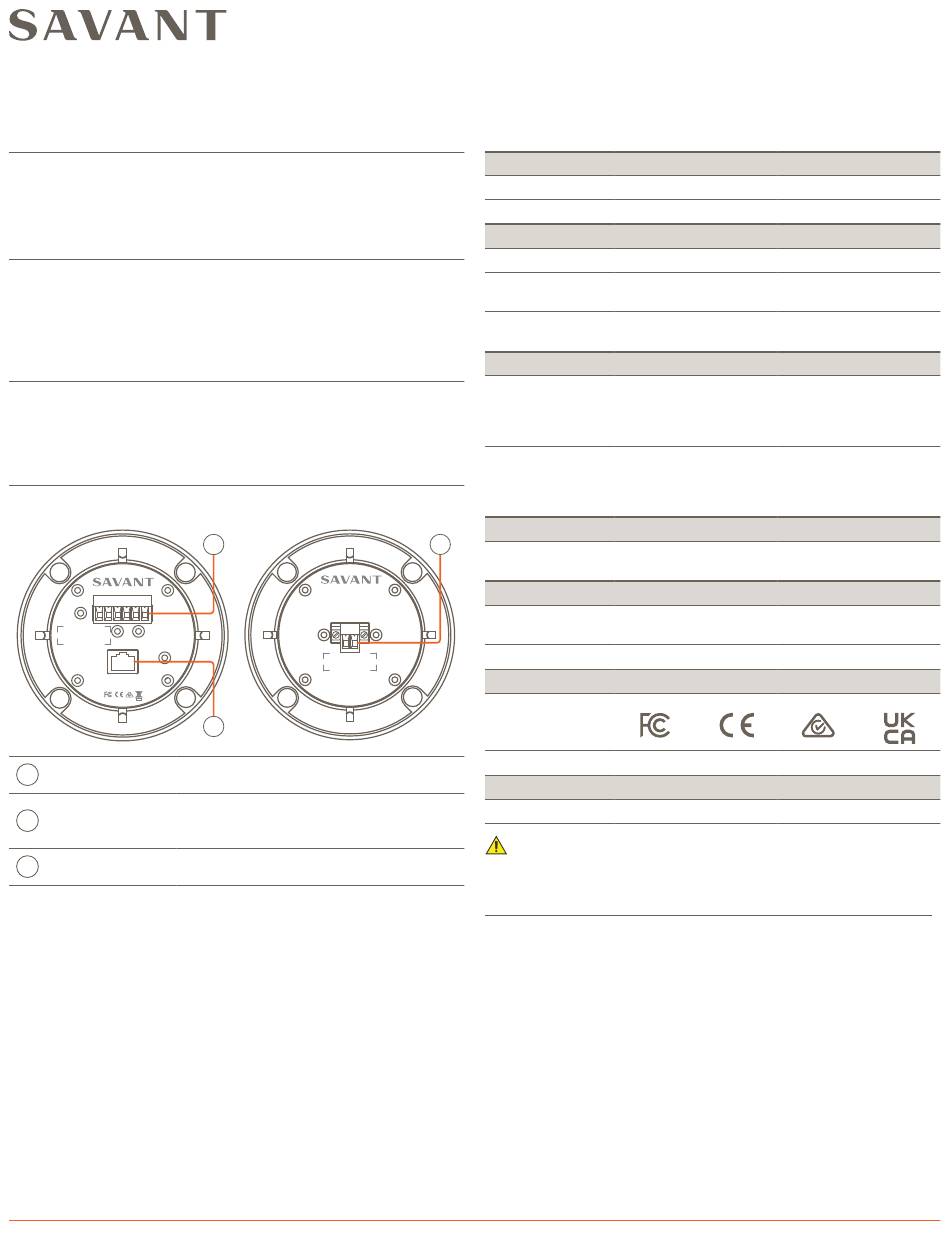

Top Panel
PoE Speaker
+R1- +L2- +R2-
PoE
A
Speaker Output (3) Speaker Outputs
8-pin RJ-45 port
B
PoE 10/100/1000 Base-T auto-negotiating port
Supports Audio Video Bridging (AVB)
C
Audio Input Audio input from a PoE speaker
EDG-4-AVB-x-00 Quick Reference Guide | 009-1789-03
Copyright © 2022 Savant Systems, Inc | 220817
Satellite Speaker
A
+ -
B
Specifications

Environmental

Temperature
Humidity

Dimensions and Weights

Device
Shipping

Power

PoE Type
Maximum
Power Draw

Networking

C
Supported
Standard

Operating Parameters

Frequency
Response
Sensitivity

Regulatory

Safety and
Emissions
RoHS
Minimum Supported Release
Software Release
IMPORTANT INFO! This device is not supported as a clock
master in a Savant AVB network.
Network Configuration
For networking guidelines and recommendations, refer to the Savant
Device Networking Guidelines available on the
Knowledge Base.
1 of 2
32° to 140° F (0° to 60° C)
10% to 90% Relative Humidity (non-condensing)
Height Width Depth
4.65 in 4.65 in 5.73 in
(11.80 cm) (11.80 cm) (14.57 cm)
7 in 11 in 13 in
(17.78 cm) (27.94 cm) (33.02 cm)
802.3af Type 1
802.at Type 2
802.3bt Type 3
802.3bt Type 4
12.95 W (Type 1)
25.5 W (Type 2)
51 W (Type 3)
71 W (Type 4)
IEEE 802.1 AVB/TSN switches
IEEE 802.3af, 802.3at, 802.3bt (PoE)
Acoustic: 80 Hz - 20 kHz +/- 3 dB
Amplifier: 20 Hz - 20 kHz +/- 1 dB
89 dB SPL (2.83V/1 meter)
CE Mark C-Tick
FCC Part 15B
Compliant
da Vinci 8.10
Savant Community
45 Perseverance Way, Hyannis, MA 02601
Savant.com
Weight
1.75 lbs
(0.79 kg)
5.35 lbs
(2.42 kg)
UKCA
| 508.683.2500
