Savant Smart SPK-SUR3WS Series Quick Reference Manual

Savant® Smart Series WiSA Surround Speakers [SPK-SUR3WSx-xx]
Quick Reference Guide
Box Contents
(2) WiSA Surround Speaker (SPK-SUR3WSx-xx)
(1) Speaker (093-3166-xx)
(1) Standard Grille (093-3173-xx)
(1) Power Cord (064-0480-xx)
(1) Quick Reference Guide (this document)
Optional Accessories (Sold Separately)
(1) Speaker Stand (SPK-SUR3STAND-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weight with Grille
Height 10.29 in (26.14 cm)
Width 4.84 in (12.29 cm)
Depth 4.68 in (11.89 cm)
Weight 5 lb (2.26 kg)
Power
Input Power 120/240V AC (50/60 Hz) 1.0A
Standby Power
1.5 W
Consumption
Max Operating Parameters
Sensitivity 87 dB
Frequency
80hz- 40kHz +/- 0.5 dB, speaker output
Response
Streaming Quality Up to 24 bit / 96kHz high-resolution audio
Networking
Supported
Standards
Regulatory
FCC Part 15B
Safety and
Emissions
RoHS Compliant
Minimum Support Requirements
Software
da Vinci 9.2
Release
SPK-SUR3WSx-xx | 009-1883-00 | 191106
Copyright 2019 Savant Systems, LLC
WiSA
C Tick UL

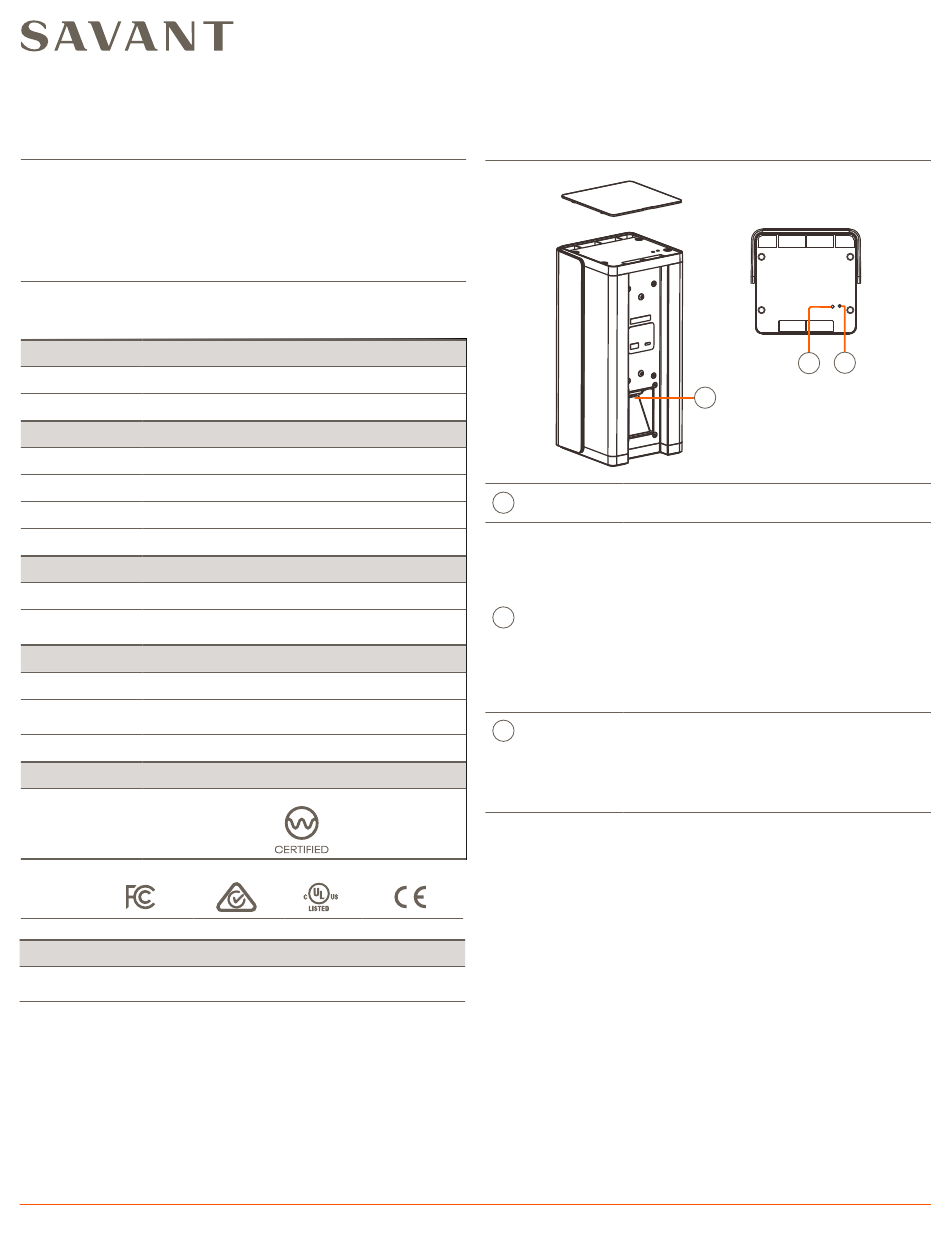

Rear and Top Panel
AC Power
A
Input
B
Status LED
Reset
C
Button
CE
1 of 2
B
A
120/240V AC Power input
Off: Resetting, or is powered up and is booting
the embedded firmware.
Green Fast Blinking: Ready for pairing.
Green Slow Blinking: Audio is being streamed.
Green: Connected to WiSA Soundbar.
Amber: Audio is muted.
Amber Slow Blinking: In Standby mode, or is
resetting.
Amber Fast Blinking: Reconnecting to WiSA
device.
Hold this button for 10 seconds to cause the
speaker to disconnect and forget any WiSA
device it is connected to.
Note: This puts the device into Associate
Mode.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
C
| 508.683.2500
