Savant Smart SPK-SUR3WS Series Quick Reference Manual

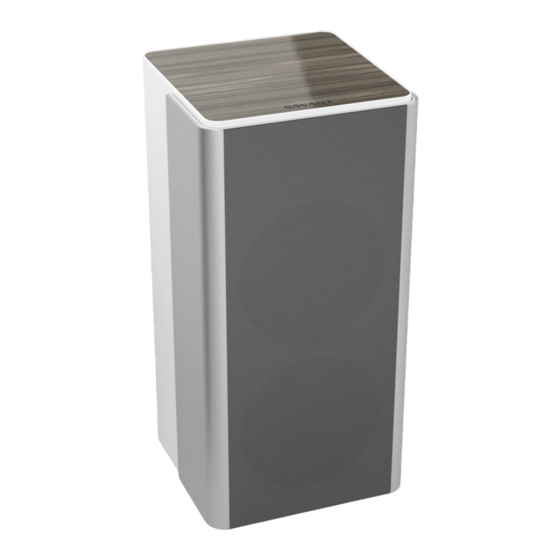

Savant® Smart Series WiSA Surround Speakers [SPK-SUR3WS
Box Contents
(2) WiSA Surround Speaker (SPK-SUR3WSx-xx)
(1) Speaker (093-3166x-xx)
(1) Standard Grille (093-3173x-xx)
(2) Power Cord (064-0519x-xx)
(1) Quick Reference Guide (009-1883-xx, this document)
Optional Accessories (Sold Separately)
(1) Speaker Stand Pair (SPK-SUR3STANDx-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weight with Grille
Height 10.29 in (26.14 cm)
Width 4.84 in (12.29 cm)
Depth 4.68 in (11.89 cm)
Weight 5 lb (2.26 kg)
Power
Input Power 120/240V AC (50/60 Hz) 1.0A
Standby Power
1.5 W
Consumption
Max Operating Parameters
Sensitivity 87 dB
Frequency
80hz- 40kHz +/- 0.5 dB, speaker output
Response
Streaming Quality Up to 24 bit / 96kHz high-resolution audio
Regulatory
FCC Part 15B
Safety and
Emissions
RoHS Compliant
Minimum Support Requirements
Software
da Vinci 9.2
Release
Associate Mode
Once the WiSA Speaker is intially powered on, the unit will be in Associate Mode (pairing mode). This mode is indicated by a Green, fast blinking
LED. Pairing any WiSA transmitting device can be accomplished through the Savant Pro App. For more information on how to pair the Smart
Audio WiSA Speaker with a WiSA transmitting device, review the
SPK-SUR3WSx-xx Quick Reference Guide | 009-1883-01
200225 | © 2020 Savant Systems, LLC
C Tick UL CE

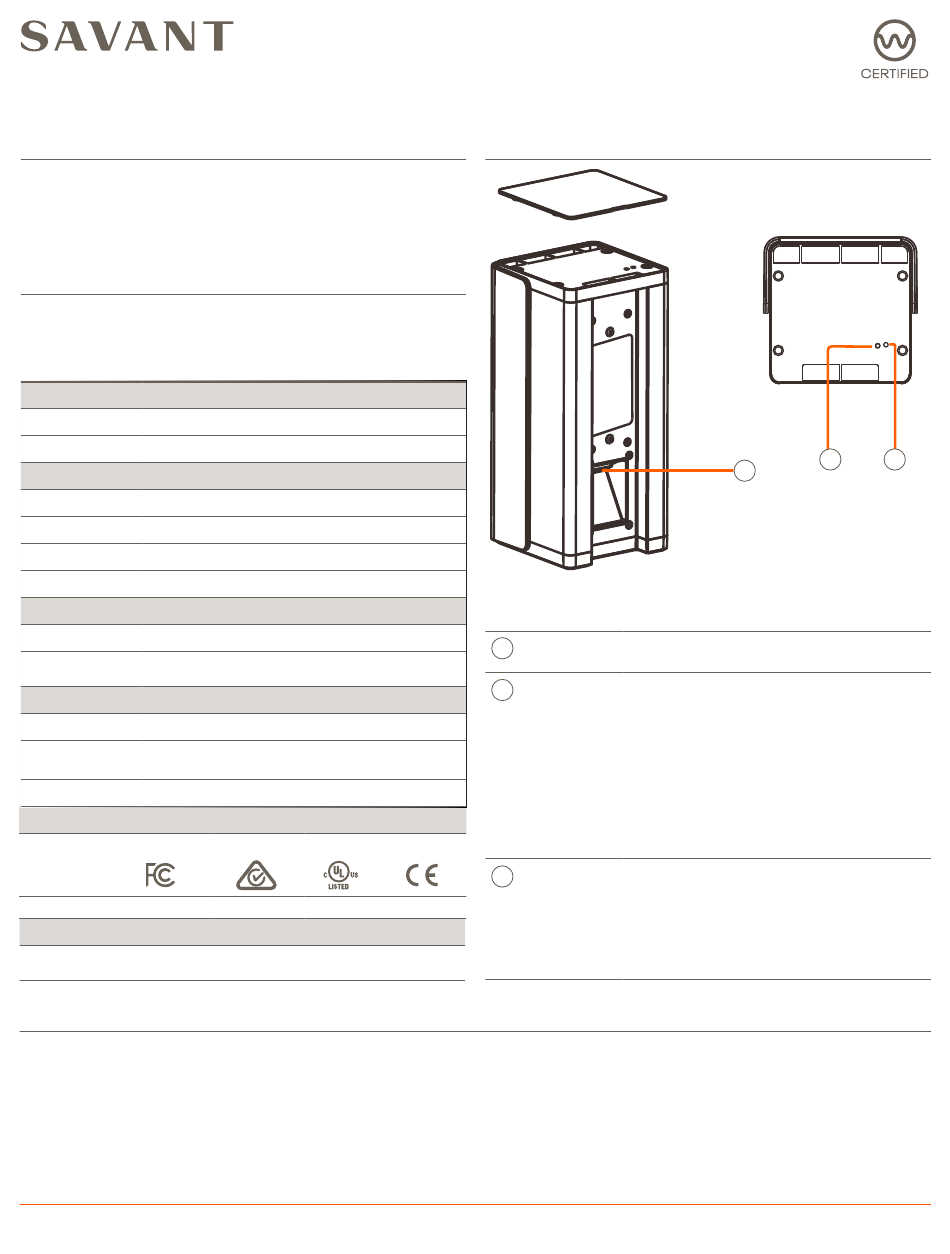

Rear and Top Panel
AC Power
A
Input
B Status LED
Reset
C
Button
WiSA Setup Guide (009-1903-xx).
1 of 2
Quick Reference Guide
x-xx]
A
120/240V AC Power input
Off: Resetting, or is powered up and is
booting the embedded firmware.
Green Fast Blinking: Ready for pairing.
Green Slow Blinking: Audio is being
streamed.
Green: Connected to WiSA Soundbar.
Amber: Audio is muted.
Amber Slow Blinking: In Standby mode, or
is resetting.
Amber Fast Blinking: Reconnecting to
WiSA device.
Hold this button for 10 seconds to cause
the speaker to disconnect and forget any
WiSA device it is connected to.
Note: When the Speaker is unbound, it will
be automatically placed in Associate mode
(pairing mode).
45 Perseverance Way, Hyannis, MA 02601
Savant.com
WiSA
B C
| 508.683.2500
