PROline Promass 80
#
Endress+Hauser
6.2.5

Current output 1: active/passive

The current output is configured as "active" or "passive" by means of various jumpers
on the I/O board.
Warning:
Risk of electric shock. Exposed components carry dangerous voltages. Make sure that
the power supply is switched off before you remove the cover of the electronics
compartment.
1. Switch off power supply.
Remove the I/O board → Page 73, 75
2.
3. Set the jumpers in accordance with Fig. 25.
"
Caution:
Risk of destroying the measuring device. Set the jumpers exactly as shown in
Fig. 25. Incorrectly set jumpers can cause overcurrents that would destroy either
the measuring device or external devices connected to it.
4. Installation of the I/O board is the reverse of the removal procedure.

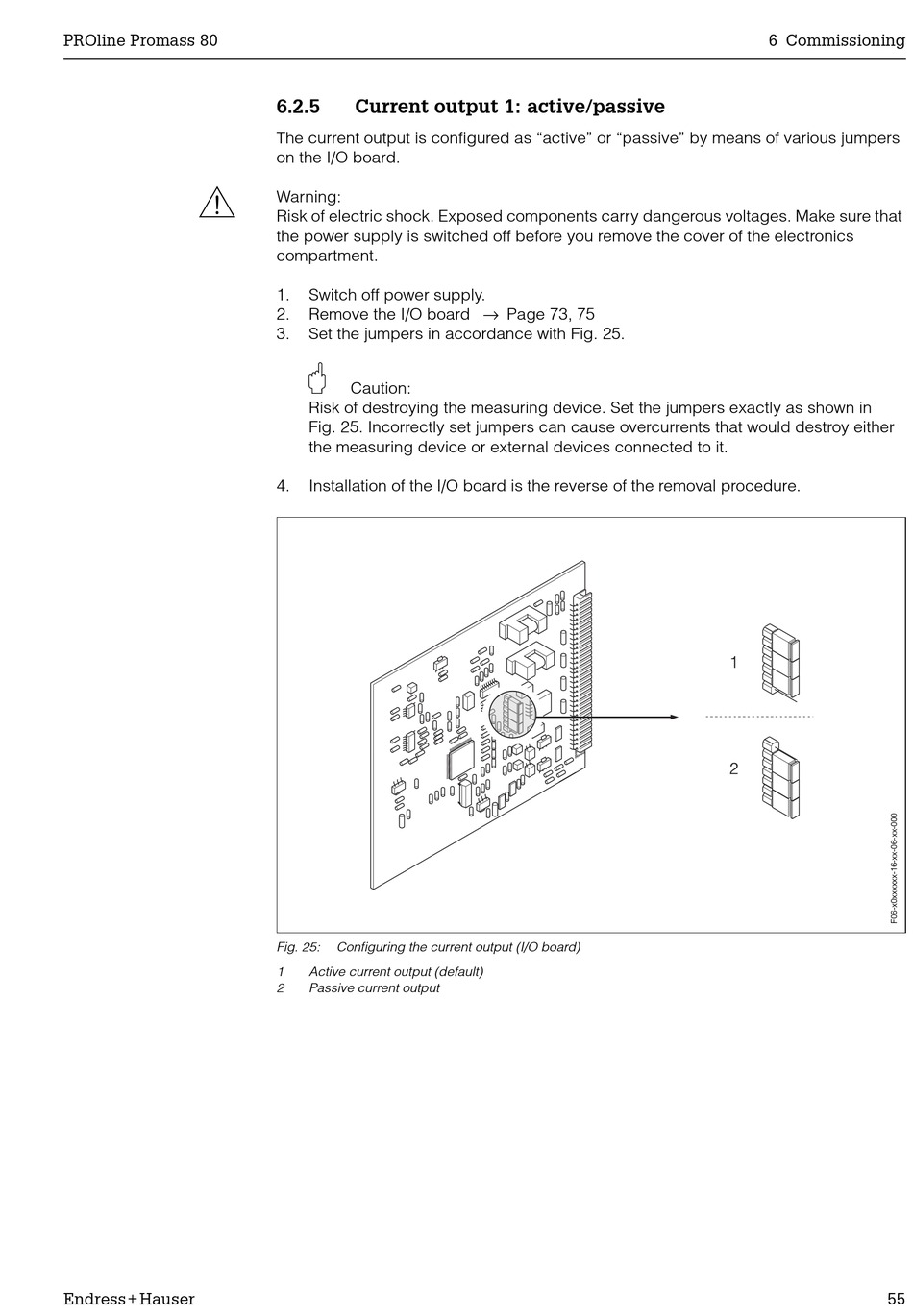

Fig. 25: Configuring the current output (I/O board)
1 Active current output (default)
2 Passive current output
