Robus OLYMPIC RP80LEDF-04 Instructions

Speci cation:

Installation:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE
marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for
waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is
important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste,
but should be disposed of according to local WEEE regulations
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 3 111213

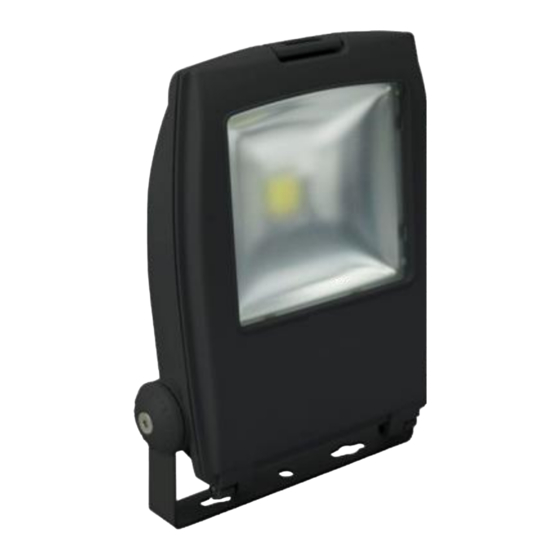

OLYMPIC LED FLOOD LIGHT
RP80LEDF-04 ; RP120LEDF-04
Please read instructions before commencing installation and retain
for future reference.
Model No.
Supply Voltage:
Power Consumption:
Lumen Output:
Colour Temperature:
CRI:
Beam Angle:
Power Factor:
Operating Temp Range:
IP Rating:
Safety Classification:
Dimensions(mm):
Weight:
Warranty:
! Electrical products can cause death or injury, or damage to property. If in any doubt
about the installation or use of this product, consult a competent electrician.
1.Ensure mains supply is switched off before commencing work.
2.Select suitable location for luminaire.
3.Mark wall with appropriate fixing positions.
Before drilling, ensure that the hole does not impinge on pipe work, cables or
other building services.
4.Mount luminaire on wall.
5.The luminaire is supplied with 0.5m of rubber cable. Using suitable IP rated
enclosure terminate Brown (Live), Blue (Neutral) and Green/ Yellow (Earth) to
switch supply.
6. Luminaire must be connected to a circuit controlled by an RCD.
7. This product has no user serviceable parts. If any part is damaged, disconnect
from mains and discontinue use.
Note: No "fixings screws provided", please use appropriate fixings screws.
Information for the Product user
The Installation must be carried out by an electrician
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
RP80LEDF-04
110-240V~50/60Hz
80W
5500lm
4500K
70
o
100
>0.95
o o
-15 C < Ta < 40
IP65
Class I,Must be Earthed
(W)385X(H)445X(D)125
7.2Kg
5 year
RP120LEDF-04
110-240V~50/60Hz
120W
9000lm
4500K
80
o
100
>0.95
o o
-15 C < Ta < 40
IP65
Class I,Must be Earthed
(W)385X(H)445X(D)125
7.2Kg
5 year
