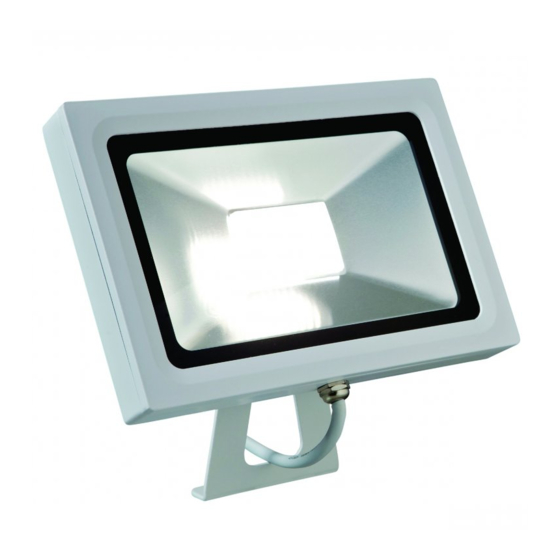

Robus RMA01040-01 Instruction Manual

MICRO ACTIVATE, 10W/20W IP65 SLIM
FLOOD, 4000K WITH 1M OF CABLE,
WHITE
RMA01040-01, RMA02040-01
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or
use of this product, consult a competent electrician
Product technical information and specification may change over time without prior notification For the latest technical
information please visit our web site www.ledgrouprobus.com or robusdirect.com

Specifications

Model No.： RMA01040
Voltage: 220-240V~50/60Hz
Power: 10W
Lumen: 650lm
CCT: 4000K
CRI: 80
PF: 0.9
o
Beam Angle: 120
o
Ta Range: -30 C < Ta < +50
IP Rating: IP65
Safety Class: Class I
Depth: 18.5mm
Width: 135mm
Height: 111mm
Weight: 0.52Kg
Warranty: 3 years

Information for the Product user:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with
crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical
equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is
separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste, but should be
disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 040315
RMA02040
220-240V~50/60Hz
20W
1300lm
4000K
80
0.9
o
120
o o o
-30 C < Ta < +50
IP65
Class I
23mm
190mm
145mm
0.91Kg
3 years
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
Note:

Installation

1. Ensure mains supply is switched off before commencing
work.
2. Select suitable location for luminaire.
3. Remove bracket from luminaire
4. Mark wall with appropriate fixing positions. Before
drilling, ensure that the hole does not impinge on pipe
work, cables or other building services.
5. Mount bracket on wall.
6. Attach luminaire to bracket, adjust to desired angle,
ensure that it is secure
7. The luminaire is supplied with 1m of rubber cable.
Using suitable IP rated enclosure terminate Brown (Live),
Blue (Neutral) and Green/Yellow (Earth) to switch
supply.
8. This product has no user serviceable parts. If any part is
damaged, disconnect from mains and discontinue use.
Note: No "fixings screws provided', please use
appropriate fixing screws.
INSTRUCTION MANUAL
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Page 1
