Robus OLYMPIC Instruction Manual

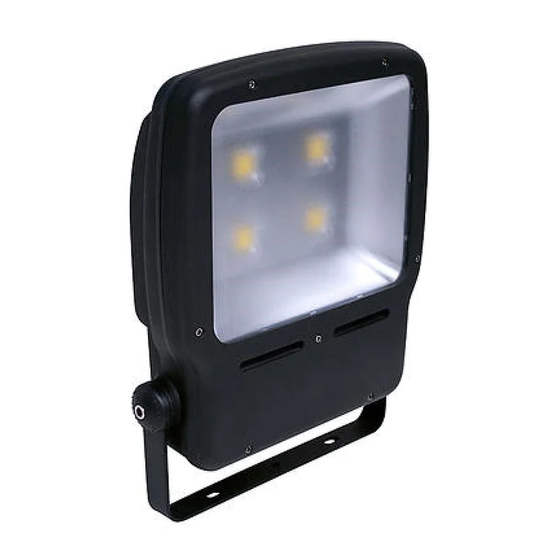

OLYMPIC LED FLOOD LIGHT
RP200LEDF-04
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or
use of this product, consult a competent electrician
Product technical information and specification may change over time without prior notification
For the latest technical information please visit our web site WWW. ledgrouprobus. com or robusdirect. com

Specifications

Model No.
Supply Voltage:
Power Consumption:
Lumen Output:
Colour Temperature:
CRI:
Beam Angle:
Power Factor:
Operating Temp Range:
IP Rating:
Safety Classification:
Dimensions(mm):
Weight:
Warranty:
Projection Distance:
Max Projection Area:
Mounting Height:
Complies with EN 60598-2-5, EN 60598-1, EN 62493,
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 61347-2-13, EN 61347-1

Information for the Product user:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with
crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical
equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is
separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste, but should be
disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 3 031114
RP200LEDF-04
100-240V~50/60Hz
200W
16,000lm
4500K
80
o
100
>0.9
o o
-15 C < Ta < 40
IP65
Class I,Must be Earthed
(W)435X(H)565X(D)150
14.2Kg
5 year
30m - 35m
35m x 18m
4m – 8m
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
Note:

Installation

1. Ensure mains supply is switched off before commencing
work.
2. Select suitable location for luminaire.
3. Mark wall with appropriate fixing positions. Before
drilling, ensure that the hole does not impinge on pipe
work, cables or other building services.
4. Mount luminaire on wall.
5. The luminaire is supplied with 0.5m of rubber cable.
Using suitable IP rated enclosure terminate Brown (Live),
Blue (Neutral) and Green/Yellow (Earth) to switch
supply..
6. This product has no user serviceable parts. If any part is
damaged, disconnect from mains and discontinue use.
Note: No "fixings screws provided', please use
appropriate fixing screws.
INSTRUCTION MANUAL
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Page 1
