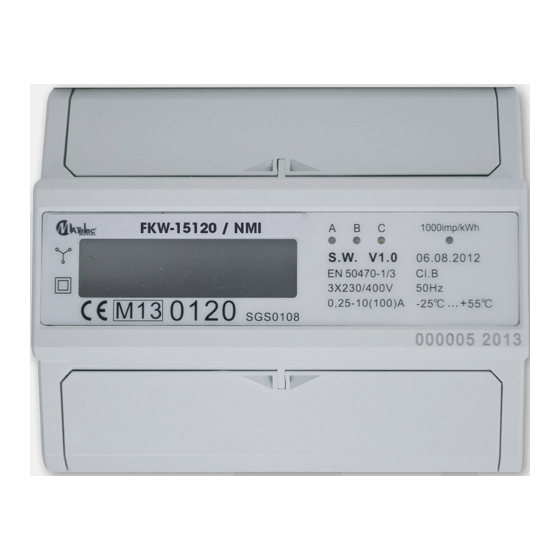

KWH METER - FKW-15120/NMI
INSTRUCTIONS
Congratulations on your purchase of the FKW-15120/NMI Three Phase. 4 wire, Kilowatt Hour Meter.
*

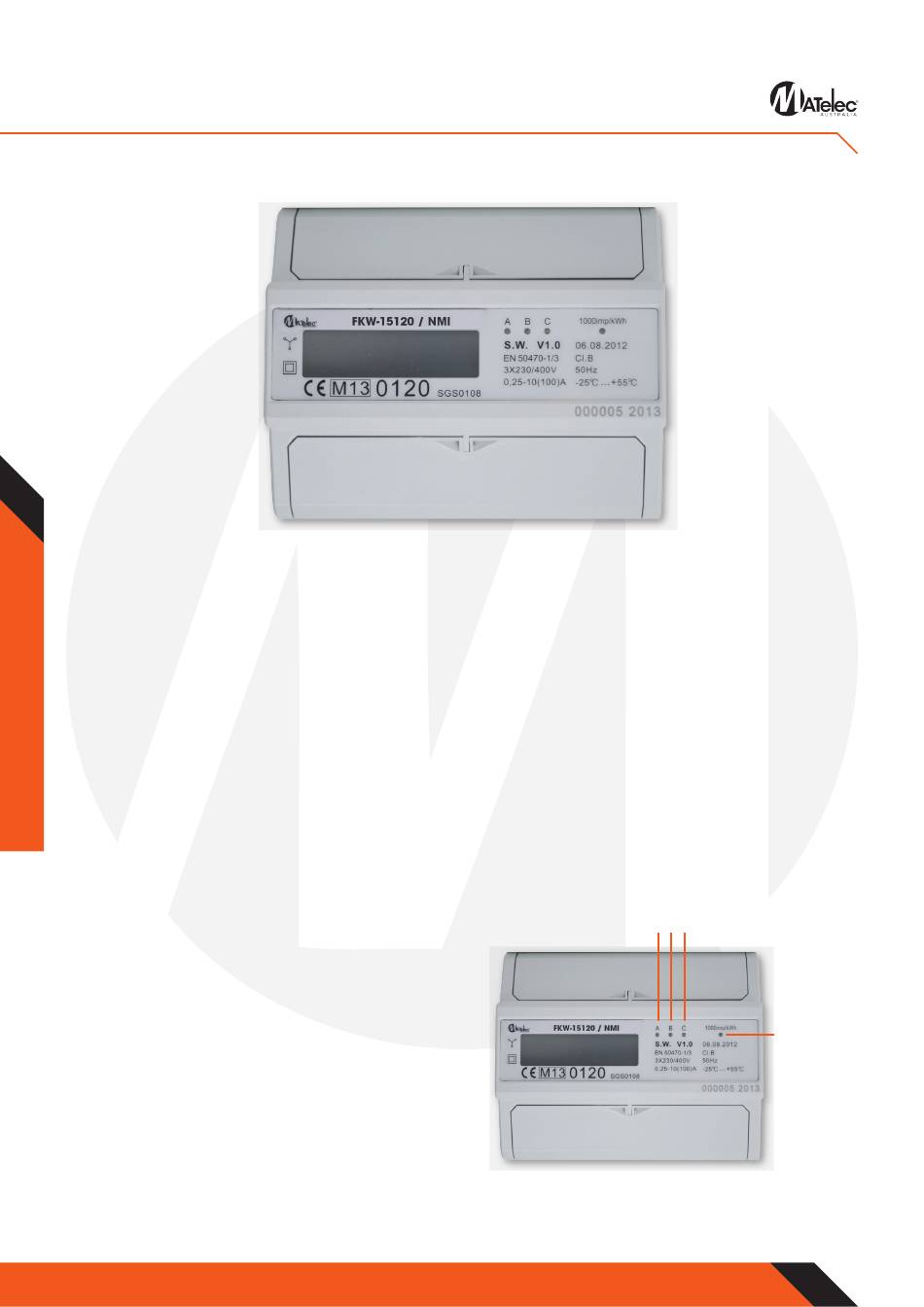

DESCRIPTION
A. Power Indication of Phase A
B.
Power Indication of Phase B
C. Power Indication of Phase C
D.
Pulse Output
Phase Lights
•
Solid Light = Normal Power Consumption
•
Flash Light = Small Power Consumption
•
No Light = No Power Consumption
Material
•
Case: Grey Flame Resistant ABS
•
Terminal Cover: Grey Flame Resistant ABS
•
Base Bottom: Grey Flame Resistant ABS
INFO@ MATELECAUSTR ALIA .COM. AU. W W W.MATELECAUSTR ALIA .COM. AU
TECHNICAL PARAMETERS
•
Accuracy Class: 1
•
Max Rated Current: 100A
•
Nominal Voltage:230/400Vac (3~)
•
Operational Current Range: 0.25A - 100A
•
Test Output Flash Rate: 1000 impulses per kWh
•
Consumption Indicator: Flashing on load
•
Display: Backlit Blue LCD
•
Maximum Cable Capacity: 1 Phase: 25mm
•
Operating Temperature: -20ºC to +65ºC
•
International Standard: IEC62052-11, IEC62053-21
•
Warranty: 1 year
•
Battery Backup: 3.6V Lithium
•
Weatherproof Rating: IP51
•
Polyphase: Suitable for 1,2 and 3 phase metering
•
NMI Approval: NMI 14-2-107
Please note this product is not suitable for solar applications
MATELEC AUSTR ALIA . P 18 0 0 281 282. F 13 0 0 281 282
(neutral 4mm
)
2
2
A B C
D
