OPERATION MANUAL
Liquid Level Alarm
Auto Pump Connection - FPC-12654

Introduction

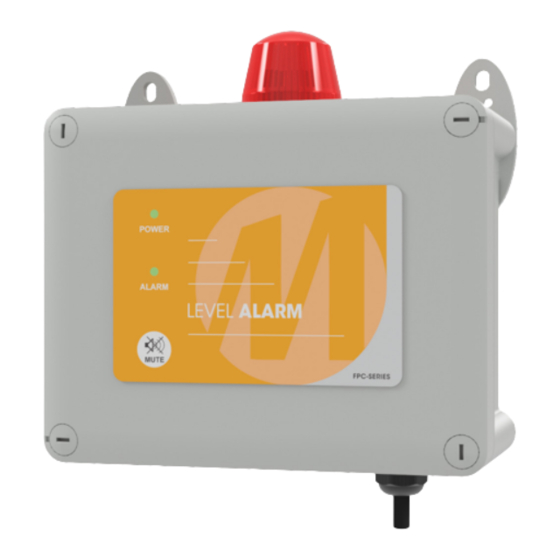

MATelec Australia's Liquid Level Alarm is designed to provide warning indication and alarm when a water storage tank is full. Housed
in a robust polycarbonate enclosure, the alarm features audible and visual alarms and a keypad interface with status indicator lights
and alarm mute button. The Auto Pump Connection version includes a 9006 Float Switch with quick plug connection and a GPO for
power supply to an automatic pump.

Safety

This Liquid Level Alarm panel has been designed and built for applications that are Commercial and/or Industrial in nature, operation,
function and location. If the control panel is to be used in Domestic/Residential applications, further consideration is required by the
installer to ensure its suitability. It is the responsibility of the installing electrician to ensure compliance with relevant standards.
Prior to installation, ensure power supply is isolated.
Electrical connection to the panel must be carried out in accordance with the following pages.
Additions or modifications to the control panel are not permitted and will void warranty.
The controller is not intended for use by children or infirm persons without supervision.
Repairs to the controller must only be carried out by a suitably qualified electrician.
This operation manual makes use of the following symbols to indicate warnings that must be paid specific attention to:
Damage to equipment or personal harm may occur if this instruction is not followed
Electrical risk (electrocution hazard) may occur if this instruction is not followed
1
P: 1800 281 282
|
F: 1300 281 282
|
E: info@matelecaustralia.com.au
|
W: www.matelecaustralia.com.au
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPC-12654 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matelec FPC-12654

  • Page 1 Introduction MATelec Australia’s Liquid Level Alarm is designed to provide warning indication and alarm when a water storage tank is full. Housed in a robust polycarbonate enclosure, the alarm features audible and visual alarms and a keypad interface with status indicator lights and alarm mute button.
  • Page 2 Functions & Fault Protection Level Alarm The level alarm is activated when the input receives a closed contact. The alarm indicator light and strobe will illuminate, the buzzer with sound, and the volt free relay output will change state. The buzzer can be muted by pressing the mute button on the keypad.
  • Page 3 ‘Continuous’ position. Step 3 - Powerup Close and secure enclosure door, connect the power lead into RCD protected GPO and switch on mains power. MATelec Australia reserves the right to alter technical data without notice...
  • Page 4 If the alarm activates, but the damaged. power on indicator does not, the keypad is damaged and needs replacing. If the alarm does not activate, the control module is damaged and needs replacing. MATelec Australia reserves the right to alter technical data without notice...
