Summary of Contents for Matelec KW15110

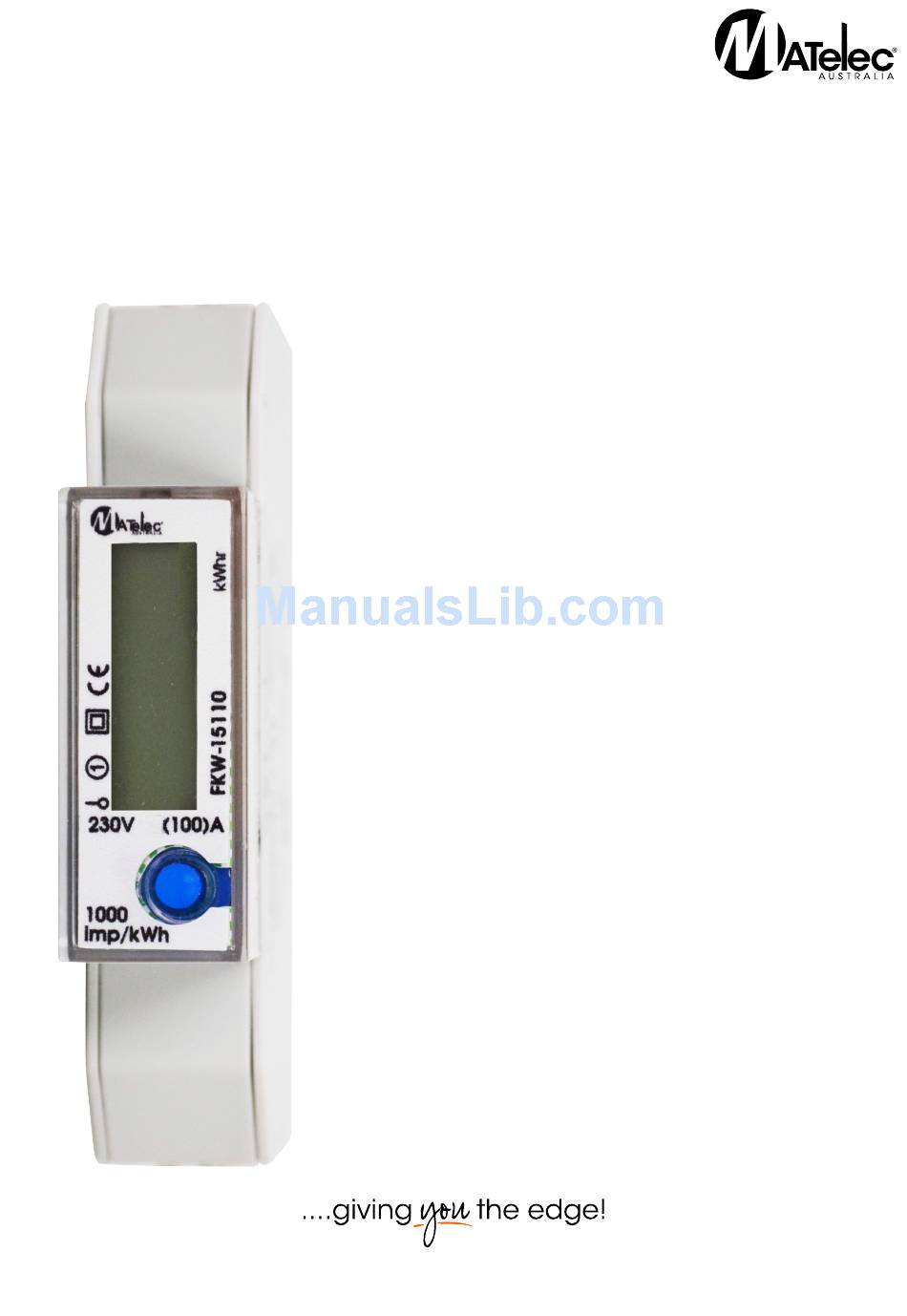

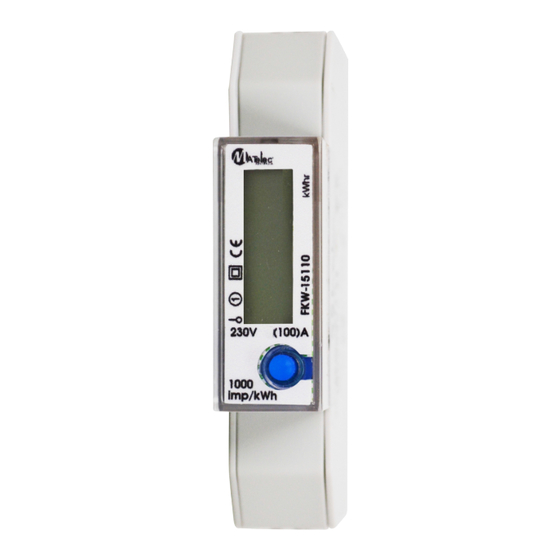

- Page 1 Single Phase KWH Meter – Din Rail Mount • U s e r M a n u a l f o r F K W 1 5 1 1 0 www.matelecaustralia.com.au...
- Page 2 1..Features and Technical Parameters 1.1 . Features ● DIN RAIL standard installation size. ● Only 18mm wide, can handle up to 100A. ● Meter has backup 3.6V Lithium battery. ● Blue LCD backlight allows the meter to be read in low light conditions. ●...
- Page 3 Description Impulse indication Turn Page Button L-Out L-In Neutral Wire LCD Display Materials Case: ABS、PC、Alloy material Hook: ABS material Height 95.3mm Width 18.2mm Depth 72mm Weight 0.10kg(Net) www.matelecaustralia.com.au...
- Page 4 3. Display Dimensions of LCD Screen 3.2 . Parameters show on the LCD screen Apparent Power 4. Connection Diagram Note: The Neutral wire can be connected to one of N ports or both. www.matelecaustralia.com.au...
- Page 5 The equipment (device, module) may only be used for the application cases specified in the catalog and the user manual and only in connection with devices and components recommended and approved by MATelec Australia. Exclusion of liability We have checked the contents of this publication and every effort has been made to ensure that the descriptions are as accurate as possible.
- Page 6 General Warning After removing the packaging make sure the integrity of the unit. If in doubt don't use the equipment and contact the supplier where the product was purchased. Mounting of electric appliances must be carried out only by suitably qualified electricians. It is imperative to observe the generally applicable safety measures.
Need help?
Do you have a question about the KW15110 and is the answer not in the manual?
Questions and answers
Partial active energy counter means what? I'm looking for the total amount of electricity used. Is that what this is? I need it as a tenant is to be charged using this meter.
