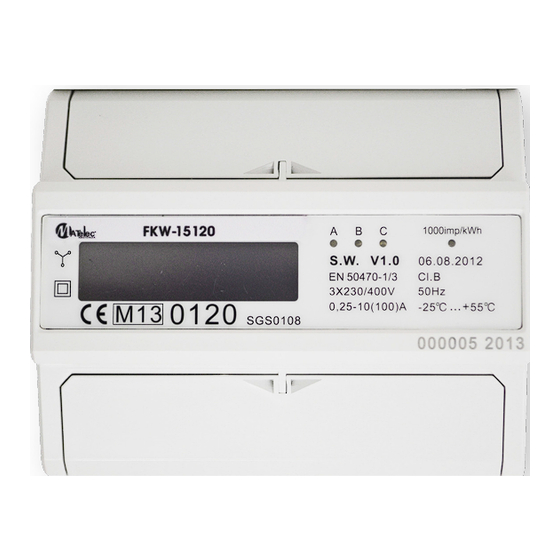

- Page 1 Three - Phase Four - Wire meter • U s e r M a n u a l f o r F K W 1 5 1 2 0 www.matelecaustralia.com.au...
- Page 2 1. Introduction This is a three phase seven module 100A meter, 2. Technical 2.1 Technical Parameters Voltage: 3*230/400V Current: 0.25-10(100) A Standard: EN50470-1/3 Frequency: 50Hz Impulse constant: 1000imp/kWh Display: LCD 6+1 Power consumption: ≤2W ＜10VA Temperature range: -25~55℃ Average humidity value of year: ≤95% www.matelecaustralia.com.au...
- Page 3 3. Description Power Indication of Phase A Power Indication of Phase B Power Indication of Phase C Pulse Output Phase Lights Solid light Normal power consumption Flash light Small power consumption No light No power consumption aterial Case Grey flame resistant ABS Terminal cover Grey flame resistant ABS Base Bottom...
- Page 4 5. Connection Diagram Note: 9 and 8 are for impulse output, used for remote power monitoring. 6. Meter Dimensions Height 100mm Width 122mm Depth 65mm Weight 0.3796kg(Net) www.matelecaustralia.com.au...
-
Page 5: Safety Instructions
Connect according to the wiring diagram, See Fig 1; Fig. 1 7. Safety Instructions Information for Your Own Safety This manual does not contain all of the safety measures for operation, however, it does contain information which must be adhered to for your own personal safety and to avoid damage to the equipment. -
Page 6: Technical Support
Qualified personel Installation and operation of this equipment described in this manual may only be performed by a suitably qualified person. Only people that are authorized to install, connect and use this equipment circuits and can do so according to safety and regulatory standards are considered qualified personnel in the manual.
