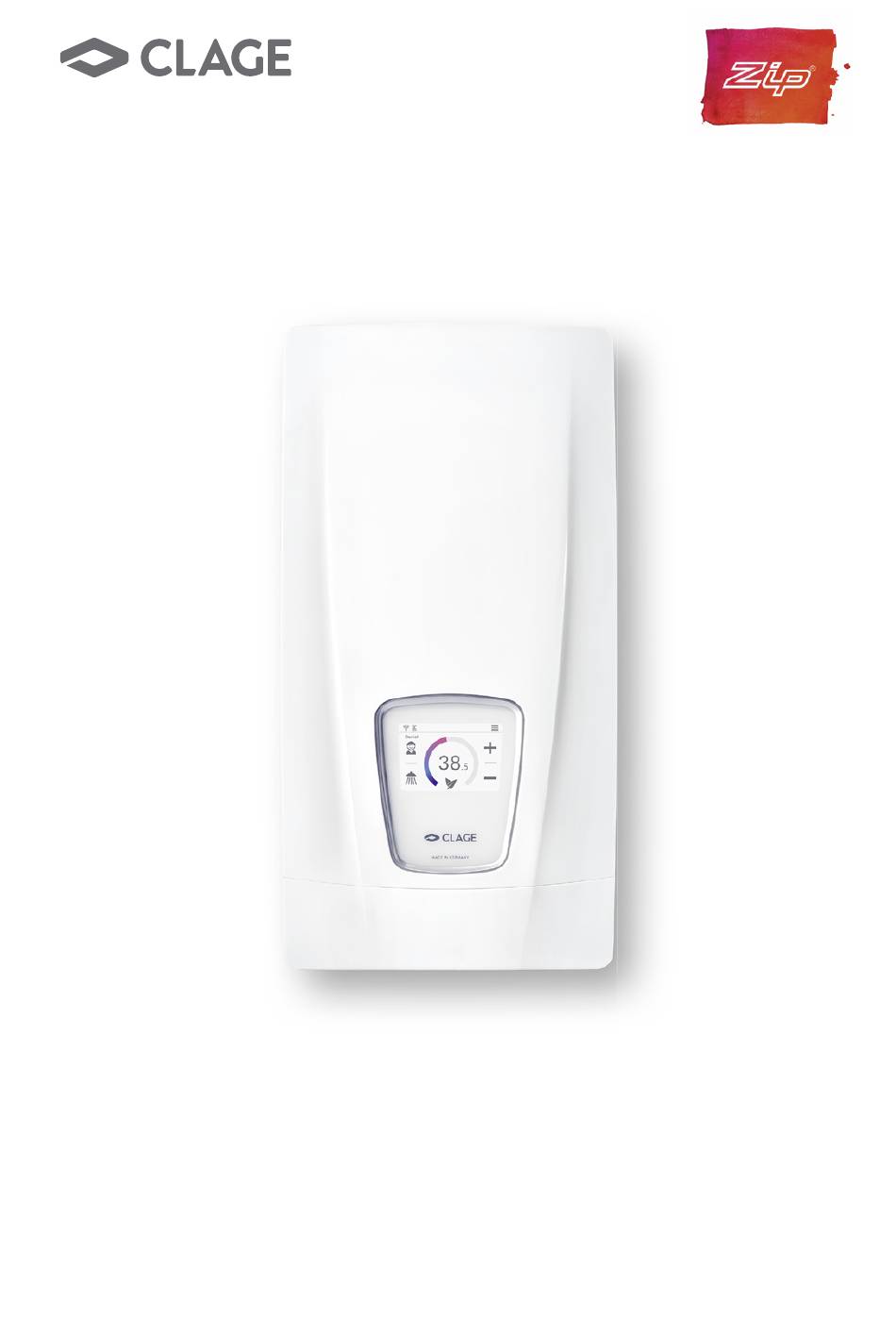

- Page 1 Instantaneous Hot Water Electronically controlled instantaneous water heater DSX Touch: 807121 - 50 °C User and installation instructions For 50 °C models, the appliance delivers water not exceeding 50 °C in accordance with AS3498...
-
Page 2: Table Of Contents
9. Maintenance work ........58 4. CLAGE app “Smart Control” ......42 Cleaning and replacing the filter strainer . - Page 3 1. Safety instructions Please read these instructions carefully before installing or using the appliance! Keep the instructions handy with the appliance for future use! Installation, initial operation and maintenance of this appliance must only be conduct- ed by an authorised professional, who will then be responsible for adherence to appli- cable standards and installation regulations.
-
Page 4: User Instruction
The required outlet temperature can be entered on the touch-sensitive display within a range between 20 °C and 50 °C and can be read off that digital display. Alternatively, the appliance can be conveniently controlled via the CLAGE app with a smartphone or tablet or via an optional Bluetooth remote control. -
Page 5: How To Use
The inlet temperature exceeds the target value (appliance does not heat up) Optional Bluetooth remote control registered Wi-fi is activated The appliance is connected to the CLAGE Cloud Status display, bottom Display area for functions which require confirmation from the user or which are of... -
Page 6: Main Menu
3. How to use Eco active: The outlet temperature for all applications and the water flow are limited to an energy-efficient value. If the temperature is set higher via the temperature setting, the symbol start to flash. Maintenance: Tap the symbol to open a status message with additional informa- tion. -
Page 7: Statistics
3. How to use When the fill quantity is reached, “0 l” flashes briefly on the display and the appliance stops the water flow by closing the motor valve. A long acoustic signal can also be heard and an instruction message appears on the display. The motor valve stay closed until the message is confirmed at the appliance or via app. - Page 8 3. How to use Enter PIN: Numbers from 0 to 9 can be selected via the keypad. If you have selected four digits, confirm by tapping on “OK”. The PIN must then be entered again and con- firmed for security reasons. If both entries match, you access the section “Protected Sections”.
-
Page 9: User
Synchronize Statistics: Use this function to reload the statistical data. Devices: All settings for operation with the app and for integrating the DSX-Touch into a Wi-Fi network are made here. For more information, see chapter: “4. CLAGE app Smart Control”. -
Page 10: How To Save Energy
3. How to use How to save energy Set the exact temperature you need on the appliance and open the hot water tap. Once you feel that the water is too hot, do not add any cold water and, instead, enter a lower temperature on the appliance. -
Page 11: Initial Operation
1. Make sure that the instantaneous water heater is supplied with voltage. 2. Install the control app on your tablet / smartphone. Search the Apple AppStore or the Google Playstore for »CLAGE Smart Control« and install the app. Do not start the control app yet. -
Page 12: Software Update
Updating the Smart Control app We recommend using the latest software in order to ensure the impeccable and secure operation of the CLAGE Home Server. Any new control app version will be indicated in the app store. • Updating iOS-devices: For updating your control app, select the “Updates“ tab in the appstore and tap on the “Update“... -
Page 13: Trouble-Shooting And Service
5. Trouble-shooting and service This instantaneous water heater was manufactured conscientiously and checked sev- eral times before delivery. Should malfunctions nevertheless occur, it is usually only due to a bagatelle. First attempt to switch the house fuses off and on again in order to reset the electronics. -
Page 14: Installation Instruction
Installation instruction 1. Overview When ordering spare parts, please always specify the appliance model and serial number. Pos. Description Pos. Description Bottom part PCB cover Safety thermal cut-out (STB) Motor valve PCB DSX / DEX thermal sensor set 2.1 Non-return valve Motor valve Flow sensor Connecting terminal... -
Page 15: Technical Specifications
2. Technical specifications Model DSX Touch 50 °C Part no. 809508 Energy efficiency class Rated capacity / rated current 18 kW..27 kW (26 A..39 A) Chosen capacity / current 18 kW / 26 A 21 kW / 30 A 24 kW / 35 A 27 kW / 39 A Electrical connection 3~ / PE 380..415 V AC... -
Page 16: Dimensions
4. Dimensions Dimensions in mm 468 363 5. Installation The following regulations must be observed: • e.g. VDE 0100 • EN 806 • Installation must comply with all statutory regulations, as well as those of the local electricity and water supply companies. •... -
Page 17: Installing The Wall Bracket
5. Installation Installing the wall bracket Note: If you install this instantaneous water heater in exchange for a conventional instantaneous water heater, there is generally no need to drill holes for the wall brack- et, in this case step 2 would not be necessary. Thoroughly rinse the water supply pipes before installation to remove soiling from the pipes. -
Page 18: Installing The Appliance
5. Installation Installing the appliance • The electrical power supply cable may be connected in the upper part or is surface mounted. Only in such case, first follow the steps one through three according to the description “Electrical connection from above” in chapter “Electrical connec- tion”. -
Page 19: Direct Connection
6. Direct connection Note: Fasten the screw nuts with caution, to avoid damage to the valves or the piping system. For direct connection, the two ½ inch screw-in nipples and the ½ inch seals must be screwed into the ½ inch union nuts of the hot-water and cold-water connectors. The two ½ inch caps of the side outlets of the hot-water and cold-water connectors must be removed and screwed onto the open end of the screw-in nipples. -
Page 20: Electrical Connection
7. Electrical connection Wiring diagram Only by a specialist! Please observe: • e.g. VDE 0100 • The installation must comply with current IEC and national local regulations or any particular regulations, specified by the local electricity supply company • The rating plate and technical specifications •... -
Page 21: Electrical Connection From Above
7. Electrical connection Electrical connection from above Check that the power supply is switched off prior to electrical connection! 1. Open the prepared breaking point (S) in the upper part of the appliance by press- ing with a blunt implement (e.g. srewdriver).For surface-mounted connection cable additional open the breakout at the right side of the bottom part. -
Page 22: Initial Operation
8. Initial operation Before making the electrical connection, fill the mains and the appliance with water by carefully opening and closing the hot water tap in order to vent completely. To ensure a maximum flow, remove any existing aerator from the faucet. Flush the warm and cold water pipes each at least for one minute. -
Page 23: Maintenance Work
9. Maintenance work Maintenance work must only be conducted by an authorised professional. closed Cleaning and replacing the filter strainer The cold water connection of this instantaneous water heater is equipped with an inte- grated shut-off valve and a strainer. Soiling of the strainer may reduce the warm water output. - Page 24 Head Office As Zip’s policy is one of continuous product improvement, changes to specifications may be made without Zip Water (Aust) Pty. Ltd prior notice. Images in this booklet ABN: 46 000 578 727 have been modified and may not be 67-77 Allingham Street true representations of the finished Condell Park NSW 2200...
