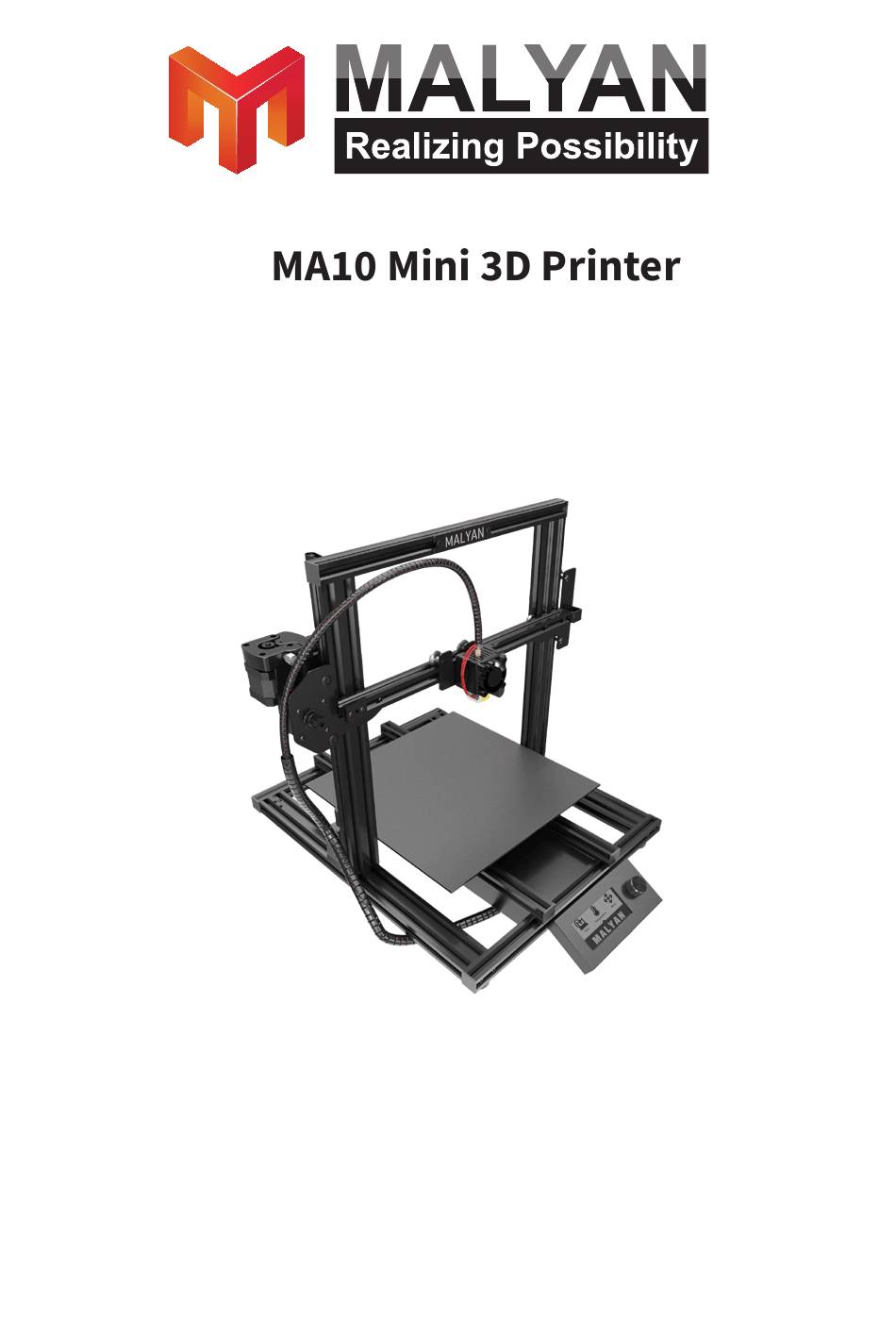

  • Page 1 User’s Manual...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES INTRODUCTION FEATURES CUSTOMER SERVICE PACKAGE CONTENTS PRODUCT OVERVIEW INSTALLATION SETUP OPTIONAL WI-FI SETUP SOFTWARE INSTALLATION AND SETUP INSTALLING Cura Repetier-Host TECHNICAL SUPPORT REGULATORY COMPLIANCE NOTICE FOR FCC EU DECLARATION OF CONFORMITY...

  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Be careful not to damage the PC paper on the build plate. Take care to avoid touching hot parts, including heat blocks, extruder nozzle, extruded lament, and the heated build plate. Do not wear gloves when operating or repairing to avoid entanglement. Keep the printer and all accessories out of reach of children.

  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing this 3D printer from MALYAN! This printer features a single extruder, which is capable of printing in PLA, ABS, and other materials. You can print from a Windows® or Mac® PC using a USB connection or can print from 3D model les stored on a memory card, without the need for a PC connection of any kind.

  • Page 5: Customer Service

    CUSTOMER SERVICE The MALYAN Customer Service department is dedicated to ensuring that y our ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a MALYAN Customer Service representative through our website http://malyansys.com or our email at support@malyansys.com.

  • Page 6: Product Overview

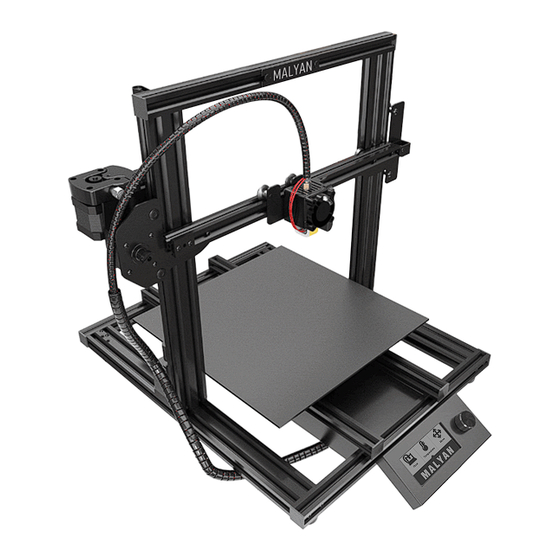

    PRODUCT OVERVIEW 1. Extruder 2. LCD screen 3. Filament rack 4. Feed Mechanism 5. Micro USB and microSD™ ports 6. Power switch 7. AC power connector...

  • Page 7: Installation

    INSTALLATION All instructions assume you are looking at the front of the printer during assembly. 1. Use the packaging material to lay the printer on its side so that you can see the holes on the bottom. Position the vertical portion of the frame opposite the holes in the bottom, align the holes on the bottom of the vertical frame with those on the horizontal frame, then use the included 2.5mm hex wrench and 4x M5x20 screws to secure the vertical frame...

  • Page 8: Setup

    Screw from the Left Y Axis Carriage Bar, then replace the plastic brackets and tighten the screws to secure them in place. Using the included 3mm hex wrench, loosen the screw in the top of the motor coupling, so that the Z Axis Lead Screw can be inserted. Insert the Z Axis Lead Screw through the hole in the top of the frame, then thread the it through the hole on the extruder housing until the unthreaded portion of the screw is fully inserted into the motor coupling.
  • Page 9 printer, then plugthe other end into a nearby AC power outlet. Flip the Power Switch to the ON position. Insert the included memory card into the slot on the right side of the LCD module, the main menu will display on the screen. Press the center of control wheel and the contents as the following picture will display on the screen.
  • Page 10 Rotating the control wheel clockwise to move the highlight to Nozzle and press the center of control wheel to enter the menu, Rotating the control wheel to set the temperature of the nozzle to your target value, it depends on the lament you plan to use.
  • Page 11 Rotating the control wheel clockwise to move the highlight to Print from SD will read the contents of the memory card and display them on screen. Rotating the control wheel to choose the le to start printing the model. When the printing is in progress, compare the rst layer with the images in the table below to determine whether the build platform needs to be leveled or not.

  • Page 12: Optional Wi-Fi Setup

    OPTIONAL WI-FI SETUP You can connect the printer wirelessly to a 2.4GHz Wi-Fi® network to print models from your Android™ phone or tablet. Perform the following steps to setup the Wi-Fi connection for your device. 1. Open Notepad on your PC to create a new le. 2.

  • Page 13: Software Installation And Setup

    M550 SSID M551 PASSWORD G1 X150 Y150 F1000 ; CENTER bed to signify completion M106 S0 ; turn fan o to signify completion M84 ; disable motors Note that in the above gcode block, there are four lines that start with a semicolon. The 1st, 3rd, and 4th lines have a single space after the semicolon and the 2nd line has two spaces after the semicolon.
  • Page 14 2. Click the Next button on the Welcome screen, then click the I Agree button on the License Agreement screen. 3. Use the le browser to select an install directory or accept the default directory (recommended). Click the Install button to continue.
  • Page 15 4. The program will start installing. 5. Click Close to complete the installation and launch the Cura program. 6. Click Settings > Printer > Add Printer...
  • Page 16 7. Click the Other option, then choose the MALYAN MA10 Mini entry. Click the Add Printer button to continue. 8. The Machine Settings screen will be displayed. Click the Close button to nish the Cura installation.

  • Page 17: Repetier-Host

    Repetier-Host You can also install Repetier-Host from the le on the included microSD™ card. The screenshots below show the proper Repetier-Host settings to use for this printer.

  • Page 18: Technical Support

    TECHNICAL SUPPORT MALYAN is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 19: Regulatory Compliance

    REGULATORY COMPLIANCE NOTICE FOR FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 20: Eu Declaration Of Conformity

    EU DECLARATION OF CONFORMITY MALYAN, Inc. declares the product described within this user guide or manual is in compliance with below applicable directives. The full text of the EU Declaration of Conformity is available at the following internet address: http://malyansys.com/product/ma10mini/...
