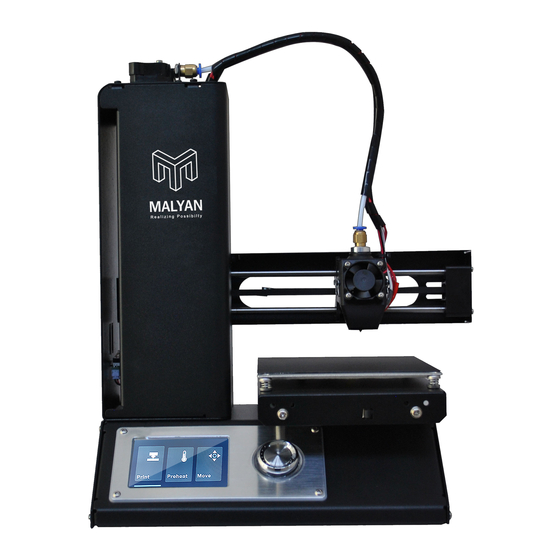

- Page 1 M200 V2 3D Printer User's Manual...
-
Page 2: Table Of Contents
CONTENTS Welcome ........................3 SAFETY WARNINGS AND GUIDELINES ............... 3 FEATURES ........................4 PACKAGE CONTENTS ....................5 PRODUCT OVERVIEW ....................6 SETUP .......................... 7 SOFTWARE INSTALLATION AND SETUP ..............10 SPECIFICATIONS ....................... 18 REGULATORY COMPLIANCE ..................19... -
Page 3: Welcome
Welcome Thank you for purchasing M200 V2 3d printer from Malyan! Wish you can enjoy your time with your imagination! For technical support, please contact us via email at support@malyansys.com SAFETY WARNINGS AND GUIDELINES Be careful not to damage the printing surface on the build plate. -
Page 4: Features
Do not expose this device to water or moisture of any kind. Do not place drinks or other containers with moisture on or near the device. If moisture does get in or on the device, immediately unplug it from the power outlet and allow it to fully dry before reapplying power. -
Page 5: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact us for a replacement. 1x 3D printer 1x Filament Rack 1x Plastic Scraper ... -
Page 6: Product Overview
PRODUCT OVERVIEW 1. Feed Mechanism 2. Filament Rack 3. Extruder 4. LCD Screen 5. USB port and memory card slot 6. Input Power Jack and Power Switch... -
Page 7: Setup
SETUP Perform the following steps to prepare the printer for use. 1. Remove the printer from its packaging and place it on a flat, stable surface with plenty of ventilation and a nearby AC power outlet. 2. Open the Accessories box and remove the Filament Rack. - Page 8 10. While the printer is heating, open your filament. Using a pair of scissors or side cutters, diagonally snip the end of the filament to make a point, as shown in the images below. 11. Using the control wheel, navigate to the Move menu, then select the Z Axis option and press the wheel.
- Page 9 15. Using the included plastic scraper, clean the extruded filament from the nozzle and build platform. 16. Using the control wheel, select the Print option from the main menu. The printer will read the contents of the memory card and display them on screen. Highlight the cat.gcode file, then press the control wheel to start printing the model.
-
Page 10: Software Installation And Setup
SOFTWARE INSTALLATION AND SETUP As you've seen, you can print a model directly from a gcode file on the memory card, you can download the gcode files you like from the Internet and print them directly. However, some users would like to create their own model using an open source program, such as Cura or Repetier-Host, which are pre-installed on the memory card that comes with the printer. - Page 11 3. Ensure that all boxes are checked, and then click Install button to continue.
- Page 12 4. Once the files have been extracted and the les have been extracted and the Cura installation is complete, the driver installation is complete, the driver installation wizard will launch. Click installation wizard will launch. Click Next button to continue. Then Then click Finish button to complete the driver installation.
- Page 13 6. Ensure that the box next to Ensure that the box next to the Start Cura 15.04.6 is checked, and then and then click the Finish button to launch the program. launch the program. 7. Select your language and click the elect your language and click the Next button to continue.
- Page 14 8. Choose the Other option, option, and then click the Next button to continue. button to continue. Select the Custom... option, then click option, then click the Next button to continue. 9. Change the settings to match those shown in the images below, then Change the settings to match those shown in the images below, then Change the settings to match those shown in the images below, then click Finish button to continue.
- Page 15 10. Then you might have to adjust the detail parameter to match your filament and the model you are going to printing. 11. Finally, using the included USB cable, plug one end into the USB port on the printer, then plug the other end into an available USB port on your computer. Watch the right hand corner of the screen.
- Page 16 Repetier-Host The screenshots below show the proper Repetier-Host settings to use for this printer in Repetier-Host .
-
Page 18: Specifications
SPECIFICATIONS Model M200 V2 Extruder System Single Maximum Extruder Temperature 260°C Maximum Build Plate Temperature 60°C Heated Plate Display Type Color LCD screen Printing Area 4.7" x 4.7" x 4.7" (120 x 120 x 120 mm) ABS, PLA, PETG, wood, copper fill, steel fill,... -
Page 19: Regulatory Compliance
Modifying the equipment without Malyan’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
