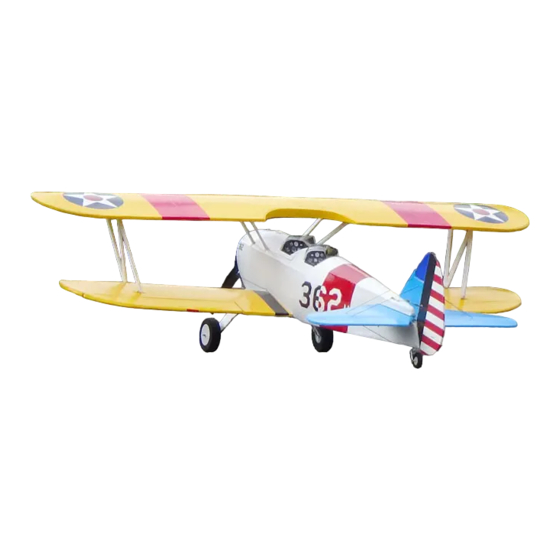

Paper Replika BOEING PT-17 STEARMAN Manual

1300mm
Specs :
1. Wingspan 1300mm / 51 inches
2. Flying weight : 1500 gram / 53 oz
3. Wing loading : 31.8 gram/dm2 - 10.4 oz./sq. ft.
4. Wing cube loading : 4.6
5. Wing Area : 47.2 dm2 / 732 sq.in
6. CG : 9 cm from Upper Wing LE
Electronics
- 35 brushless motor 650-1250 kv
- Tested with Hobbyking 3536 650kv
- ESC 50A
- Battery Lipo 3S 2200 - Li-ion 3S 3300 mah
- 4 plastic gear 9 gram servos
- Test with Propeller : 12x8 MA
Materials :
1. 5mm & 10mm Depron/ Polyfoam
2. 3mm Plywood
4. 3mm EVA Foam
5. 0.3mm Mica Plastic
6. 2X 80mm + 30mm foam wheel
7. 1.5 mm pushrods wire
8. 2.5 + 2 mm bicycle wheel spoke wire
9. Nylon thread
10. sewing thread
12. hot glue + CA glue + UHU glue + PVA glue
13. covering paper (oil paper)
14. spray paint can
Designed by Julius Perdana 2020
Model : 08/2020
Build Instructions :
1. paper-replika.com
2. youtube channel : Julius Perdana
