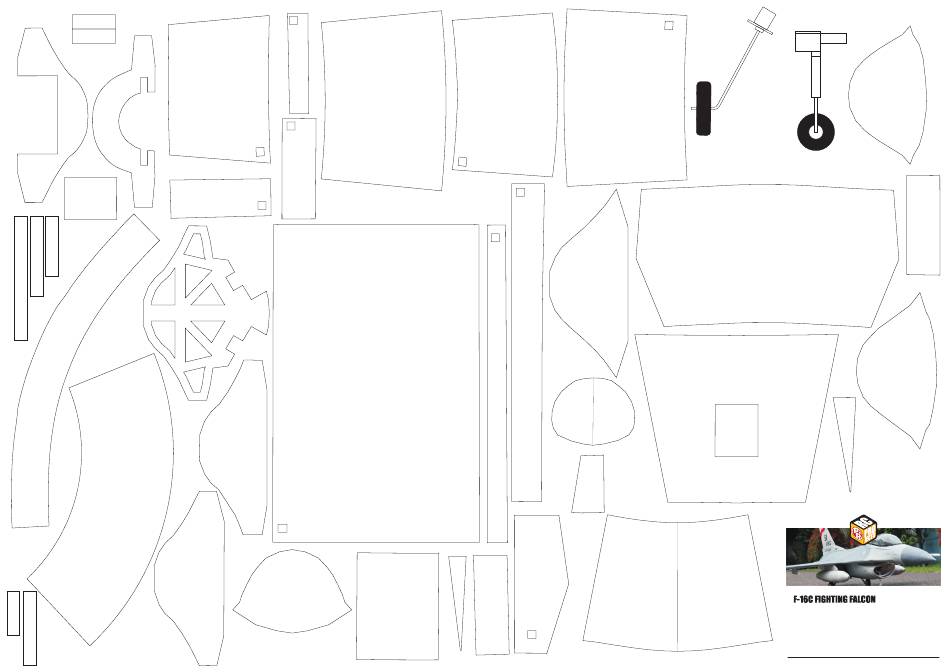

F5
FUSELAGE
PLYWOOD 9MM
F5
FUSELAGE
PLYWOOD 9MM
F2
FUSELAGE
POLYFOAM/ DEPRON 5MM
F3/F4
FUSELAGE
PLYWOOD 3MM
F33
LANDING GEAR BASE
PLYWOOD 9MM
F17
F18
F15
FUSELAGE
FUSELAGE
FUSELAGE
POLYFOAM/
POLYFOAM/
POLYFOAM/
DEPRON 5MM
DEPRON 5MM
DEPRON 5MM
3X
3X
3X
F10
FUSELAGE
POLYFOAM/
DEPRON 3MM
F11
FUSELAGE
POLYFOAM/
DEPRON 3MM
F16
FUSELAGE
POLYFOAM/ DEPRON 5MM
F28
F27
FUSELAGE
POLYFOAM/
FUSELAGE
DEPRON 5MM
POLYFOAM/
3X
DEPRON 5MM
3X
F7
FUSELAGE
POLYFOAM/
DEPRON 3MM
2X MIRRORED
F1
FUSELAGE
POLYFOAM/ DEPRON 3MM
M1
THRUST TUBE
PAPER CARD
F8
FUSELAGE
POLYFOAM/
DEPRON 3MM
2X MIRRORED
F6
FUSELAGE
POLYFOAM/ DEPRON 3MM
2X MIRRORED
F19
FUSELAGE
POLYFOAM/ DEPRON 3MM
+ PLYWOOD 3MM
2X
F13
FUSELAGE
POLYFOAM/ DEPRON 3MM
F12
FUSELAGE
POLYFOAM/ DEPRON 5MM
F31
FUSELAGE
POLYFOAM/ DEPRON 5MM
F21
FUSELAGE
POLYFOAM/ DEPRON 3MM
F20
FUSELAGE
POLYFOAM/
DEPRON 3MM
2X MIRRORED
F22
FUSELAGE
POLYFOAM/ DEPRON 5MM
F14
FUSELAGE
POLYFOAM/
DEPRON 3MM
2X MIRRORED
F48
F50
FUSELAGE
F24
POLYFOAM/
DEPRON 3MM
FUSELAGE
POLYFOAM/
2X MIRRORED
DEPRON 3MM
FUSELAGE
2X MIRRORED
POLYFOAM/ DEPRON 3MM
2X MIRRORED
F51
FUSELAGE
POLYFOAM/
DEPRON 3MM
F9
FUSELAGE
POLYFOAM/
DEPRON 3MM
F23
FUSELAGE
POLYFOAM/ DEPRON 3MM
F32
FUSELAGE
POLYFOAM/ DEPRON 3MM
F35
FUSELAGE
POLYFOAM/ DEPRON 5MM
F44
FUSELAGE
POLYFOAM/
DEPRON 3MM
2X MIRRORED
F34
FUSELAGE
POLYFOAM/ DEPRON 3MM
LANDING GEAR SIZE :
RETRACT/ FIXED
F30
FUSELAGE
POLYFOAM/ DEPRON 3MM
+ PLYWOOD 3MM
F47
FUSELAGE
POLYFOAM/
DEPRON 3MM
2X MIRRORED
F29
FUSELAGE
POLYFOAM/ DEPRON 3MM
+ PLYWOOD 3MM
F49
FUSELAGE
POLYFOAM/
DEPRON 3MM
2X MIRRORED
Model : 28/2021
1120mm
Specs :
Electronics
1. Wingspan 1120mm / 44 inches
- FMS 70mm 12 Blades EDF
2. Flying weight : 1910 grams/ 67.4 oz
- 80A ESC
3. Wing loading :54.6 gram/dm2 - 17.9 oz/sq.ft.
- Battery Lipo 3S 2200mah 70-95C X2 or 6S 3300mah 35C
4. Wing cube loading : 9.2
- 5 x 9 gram metal gear servos (micro servo)
5. Wing Area : 35 dm2 / 543 sq.in.
- 45mm, 65mm foam wheels
6. CG : 28.5 cm / 11.2 inch from TE (trailing edge)
- servoless retractable landing gear
Materials :
1. 5mm Foamboard/ Depron/ Polyfoam
2. 3mm + 9mm Plywood
Build Instructions :
3. 0.5mm Mica Plastic
1. paper-replika.com
4. hot glue, UHU glue, CA glue
2. youtube channel : Julius Perdana
5. laminating film
Designed by Julius Perdana 2021
paper-replika.com
