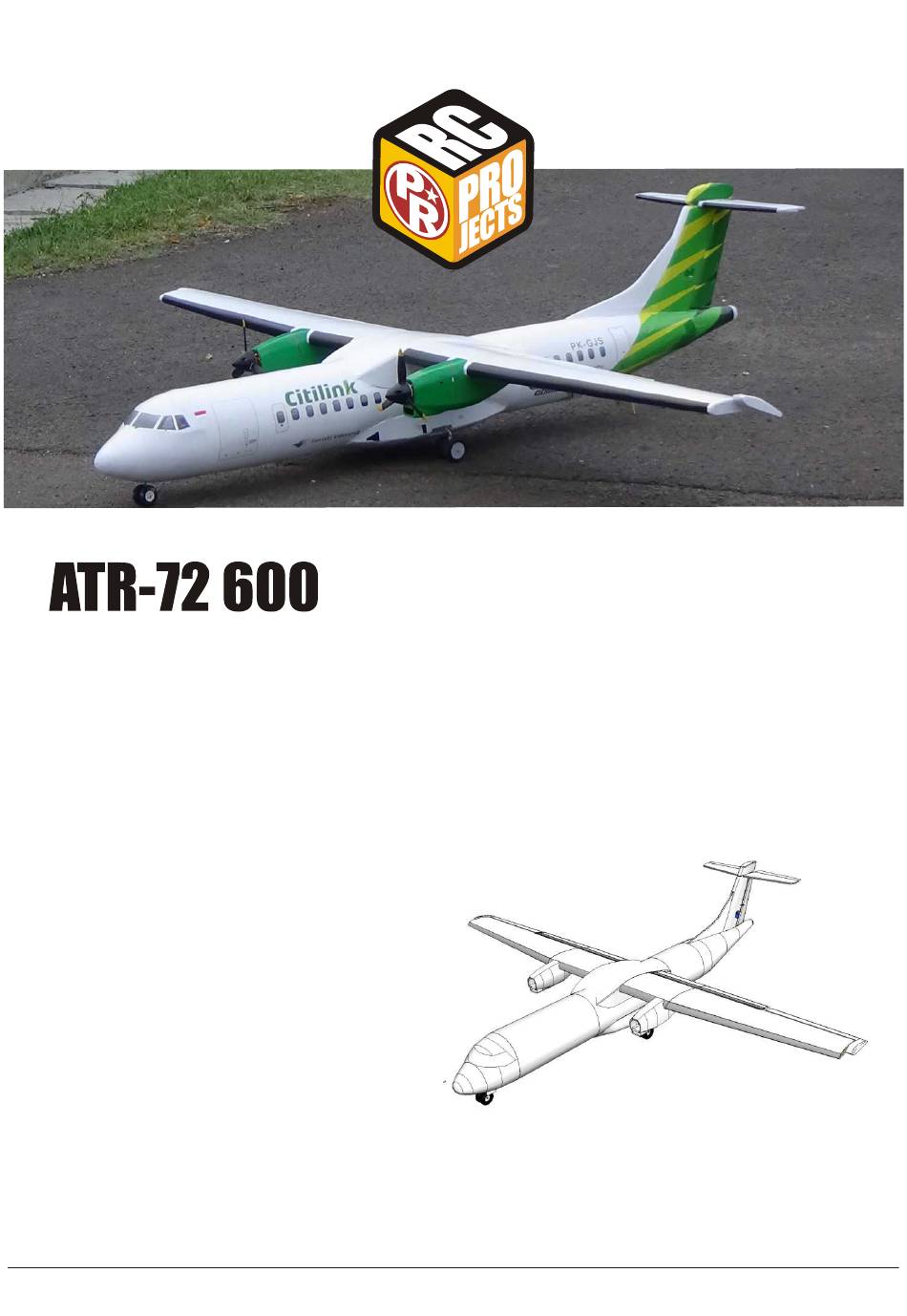

1800mm COMPLETE
Specs :
1. Wingspan 180 cm / 70.9 inches
2. Flying weight : 1800 gram / 63.5 oz
3. Wing loading : 46.5 g.dm2 / 15.2 oz/sq.ft
4. Wing cube loading : 7.5
5. Wing Area 38.7 dm2 - 600 sq.in
Electronics
- 2X Turnigy 2826 1400kv motor
- 2X ESC 40A
- 1X / 2X Battery Lipo 3S 2200mah / Li-ion 3S 3300 mah
- 4 metal gear 9 gram servos
- 3 plastic gear 9 gram servos
- Propeller : 7x4x3
Materials :
1.
5mm
Depron/ Polyfoam
2. 3mm Plywood
3. 0.3mm Mica Plastic
4. 2.5 mm + 3 mm wire / wheel spoke
Designed by Julius Perdana 2019
Model : 04/2019
Build Instructions :
1. paper-replika.com
2. youtube channel : Julius Perdana
