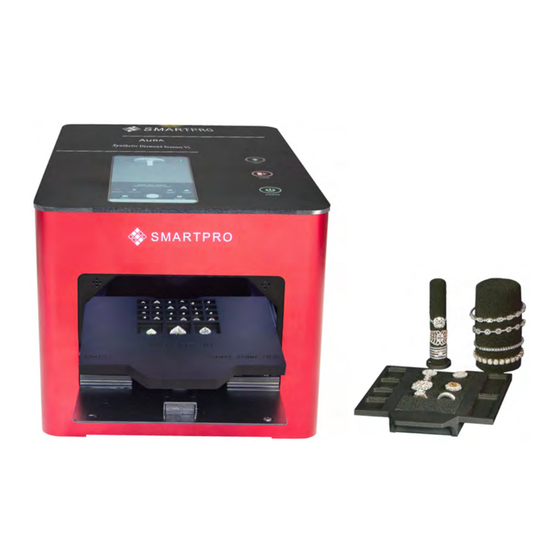

SmartPro Aura User Manual

Synthetic diamond scanner
Hide thumbs Also See for Aura:
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S MANUAL
v3.0
SmartPro Aura
Synthetic Diamond Scanner
V2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aura and is the answer not in the manual?

Questions and answers

Related Manuals for SmartPro Aura

Summary of Contents for SmartPro Aura

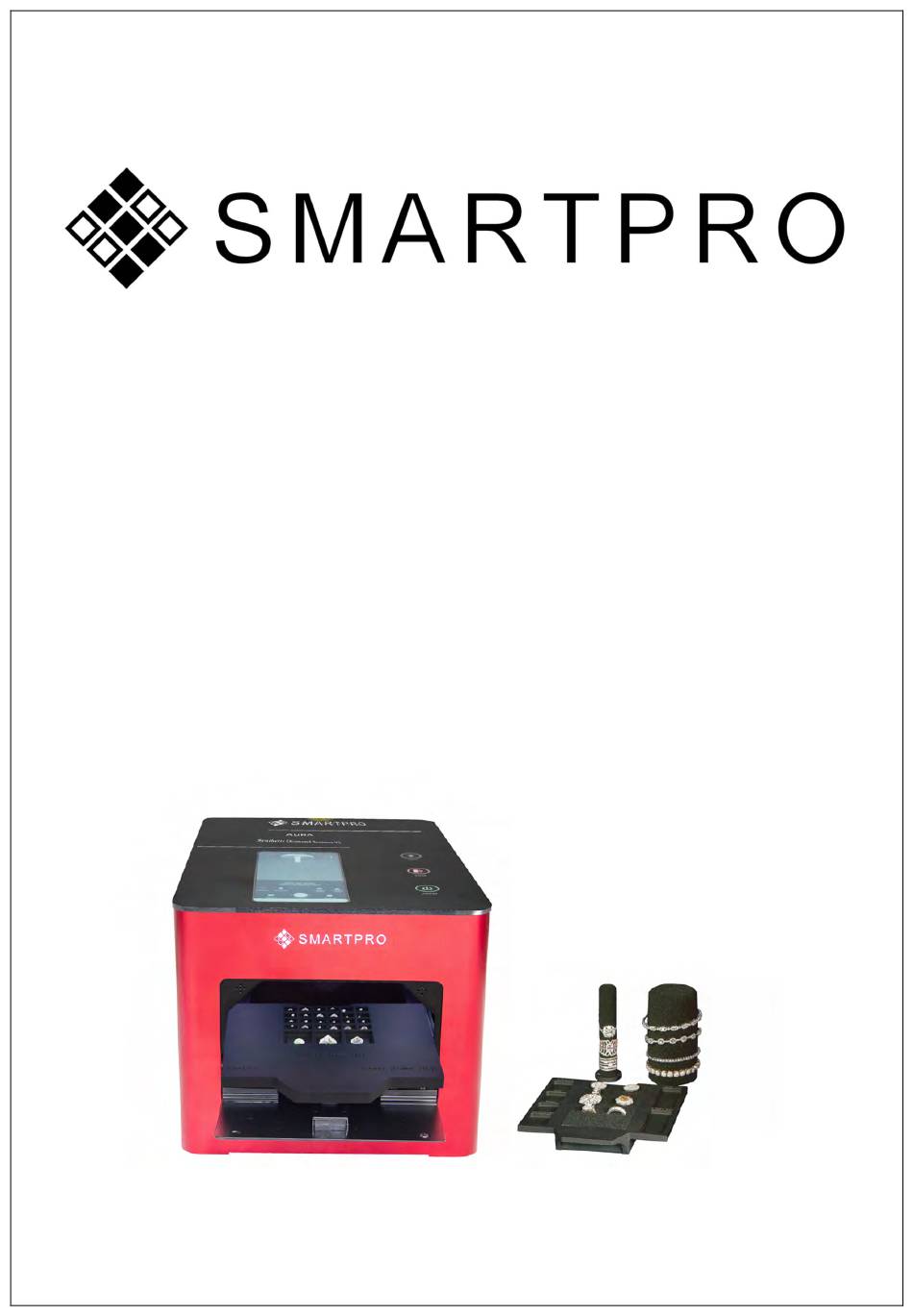

  • Page 1 USER’S MANUAL v3.0 SmartPro Aura Synthetic Diamond Scanner...

  • Page 3: Table Of Contents

    CONTENTS DISCLAIMERS, EXCLUSIONS, AND LIMITATIONS OF LIABILITY….. p. 3 ABOUT SMARTPRO AURA……………………………………………… p. 3 III. FEATURES AND ADVANTAGES……………………………………….. p. 4 PRODUCT SPECIFICATIONS…………………………………………… p. 4 TESTER OVERVIEW……………………………………………………… p. 5 ACCESSORIES……………………………………………………………. p. 8 VII. POWERING DEVICE……………………………………………………… p. 9 VIII. TESTER LIGHT INDICATORS…………………………………………… p. 10 CONTROL SETTINGS……………………………………………………..

  • Page 4: Disclaimers, Exclusions, And Limitations Of Liability

    Smartpro Aura referred to in this user manual is provided and/or sold on the “as is” basis. Except as required by applicable law, no warranties of any kind, expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 5: Features And Advantages

    III. FEATURES AND ADVANTAGES FEATURES  Able to test Mounted Jewelry and loose stones  Able to Detect as small as 0.002 ct. stones  Built-in high-end Smartphone with high camera resolution  Low current consumption  360-degree view for Rings and Jewelry ...

  • Page 6: Tester Overview

    Mobile Battery Auto-charging Ventilation Requirements Do not obstruct the ventilation holes TESTER OVERVIEW Tester Parts and Accessories A. Aura Carrying Bag B. Smartpro Aura Tester C. AC Power Cable D. Loose Stone Tray 1 (SPALST) E. Loose Stone Tray 2 (SPALST2) F.
  • Page 7 Tester Overview - 6 -...
  • Page 8 Mobile Screen Overview - 7 -...

  • Page 9: Accessories

    ACCESSORIES Loose Stone Tray – view size: 64 x 64 mm For Bulk, Loose Stones / Stones inside Transparent Plastic For Big and Separated Stones Tray Code: SPALST Tray Code: SPALST2 Ring / Jewelry Tray - 10 slots for ring and earrings. Ring and Earing slots Camera view...

  • Page 10: Powering Device

    Turning ON the AURA Box. i. Connect the Power Cable into the Inlet Power Socket at the backside of AURA and the other end of cable plug to the Power Outlet. ii. Switch ON the Inlet Power Switch. - 9 -...

  • Page 11: Tester Light Indicators

    Turning ON the built-in mobile. Click and hold the Mobile Switch at the right side of AURA until the mobile screen opens. VIII. TESTER LIGHT INDICATORS 1. UV Lamp Indicator i. No light – indicates that the UV Lamp is turned OFF.

  • Page 12: Control Settings

    CONTROL SETTINGS Users may control the Daylight ON and OFF as well as the UV Lamp to manually observe stones. Camera Focus and 360-view may also adjust for a better angle view. - 11 -...

  • Page 13: Testing / Detection

    TESTING / DETECTION There are many types of mounting of stones in Jewelries and some are selling loose. So we created a tester that can test in almost all types of settings. Here are the available Detection Options: Quick Test Mode –...
  • Page 14 Notes:  Do not place stones or Jewelry over the Detection Area (black foam area). Jewelry is Jewelry is placed placed over the within the detection area. detection area.  Arrange the Jewelries on the same height as possible to get a better camera focus for the best detection process.

  • Page 15: Test Results

    TEST RESULTS Quick Test Mode Results - 14 -...
  • Page 16 Test Result Analysis Stones with Red Marks = Synthetic / Lab Grown Diamond Stones without Red Marks = Natural Diamond / Unknown Stones Important: No red mark stones must compare with the given fluorescent reference images to confirm its type. Here are the Fluorescent Reference Images: Diamond Cubic Zirconia (CZ)
  • Page 17 Identifying Stones by Fluorescent Image and Short Phos. Image. 360 Detection The same process as Quick Test but using a Jewelry attachment to hold Rings and Jewelries. A 4 in 1 detection which the motor automatically rotates every 90 degrees and test. 4 detection results available.

  • Page 18: Test Certificate

    XII. TEST CERTIFICATE To show the test result professionally, Smartpro has made an auto-generated Test Certificate that will be found in the Preview Page after the detection process. This Certification may send directly to any email address by clicking the share button.
  • Page 19 e. Follow the same steps as for the Company Logo for changing the Company Details Logo. Customized Certificate Logo Sample: - 18 -...
  • Page 20 REGISTRATION Fill-up necessary details on registration page to have better information of the test results. This certificate may save in the gallery, print and share through email. - 19 -...
  • Page 21 OVERVIEW - 20 -...

  • Page 22: Sharing Images / Test Certificate

    XIII. SHARING IMAGES / TEST CERTIFICATE Share Icon Go to the Gallery and choose the image/file to share and tap the share Icon then enter the recipient email address. To send multiple images click and hold an image then the check box will appear on the upper left of each image, tap each check box to select.

  • Page 23: Image / Folder Gallery

    GALLERY / FOLDER GALLERY Image Gallery has available folders to save images from detection and all images will be saved automatically to their respective folderAll files from the older mobile app. version (v.2.2 and earlier) will be in the Old Files Folder. 1.
  • Page 24 3. Deleting Folders or Images In case the user wants to delete each image or folder, just click the delete icon between the share and print icons. Delete Icon For Multiple folders/images deletion, touch and hold an image/folder, choose the images/folders to be deleted and then touch the Delete icon on the upper right side of the screen.

  • Page 25: Settings Page

    6. User’s Manual – this includes the User’s Manual and some supporting files which may be useful in using the Smartpro Aura tester. 7. Customer Support – Used to send issues or inquiry to Smartpro sales representative. Fill-up the form with your Name, Email Address, Contact Number, and Problems or Issues details to be sent automatically to customercare@smartproinstrument.com...

  • Page 26: Safe Handling / Maintenance

    9. Reset Lamp’s Life-time (sec) – This is used to reset the lamp to its default value when replacing the new lamp. This requires a passcode from the Distributor or Manufacturer. 10. Advanced Settings, Unlock Phone, and BLE Name are used for Smartpro Technical Team. XVII.

  • Page 27: Xviii. Troubleshooting

     If mobile is unable to turn-on, let it charge its battery by turning ON the AURA Box power switch at the back of the tester. Let the mobile charge for some time before using it. How can I contact online support? ...

  • Page 28: Tester Thumbscrew Assembly

    TESTER THUMBSCREW ASSEMBLY There are 4 pcs. of Thumbscrews to support the tester. See the picture below on how to assemble. We thank you for purchasing SmartPro AURA. Enjoy! SmartPro Instrument Co., Ltd. 56/10 Moo 8 Nadi, Amphoe Mueang Samut Sakhon, Samut Sakhon, 74000 Thailand E MAIL: SALES@SMARTPROINSTRUMENT.COM...
  • Page 29 Smartpro Instrument Co., Ltd. www.smartproinstrument.com Copyright © 2022 SmartPro Instrument Co., Ltd. All rights reserved.
