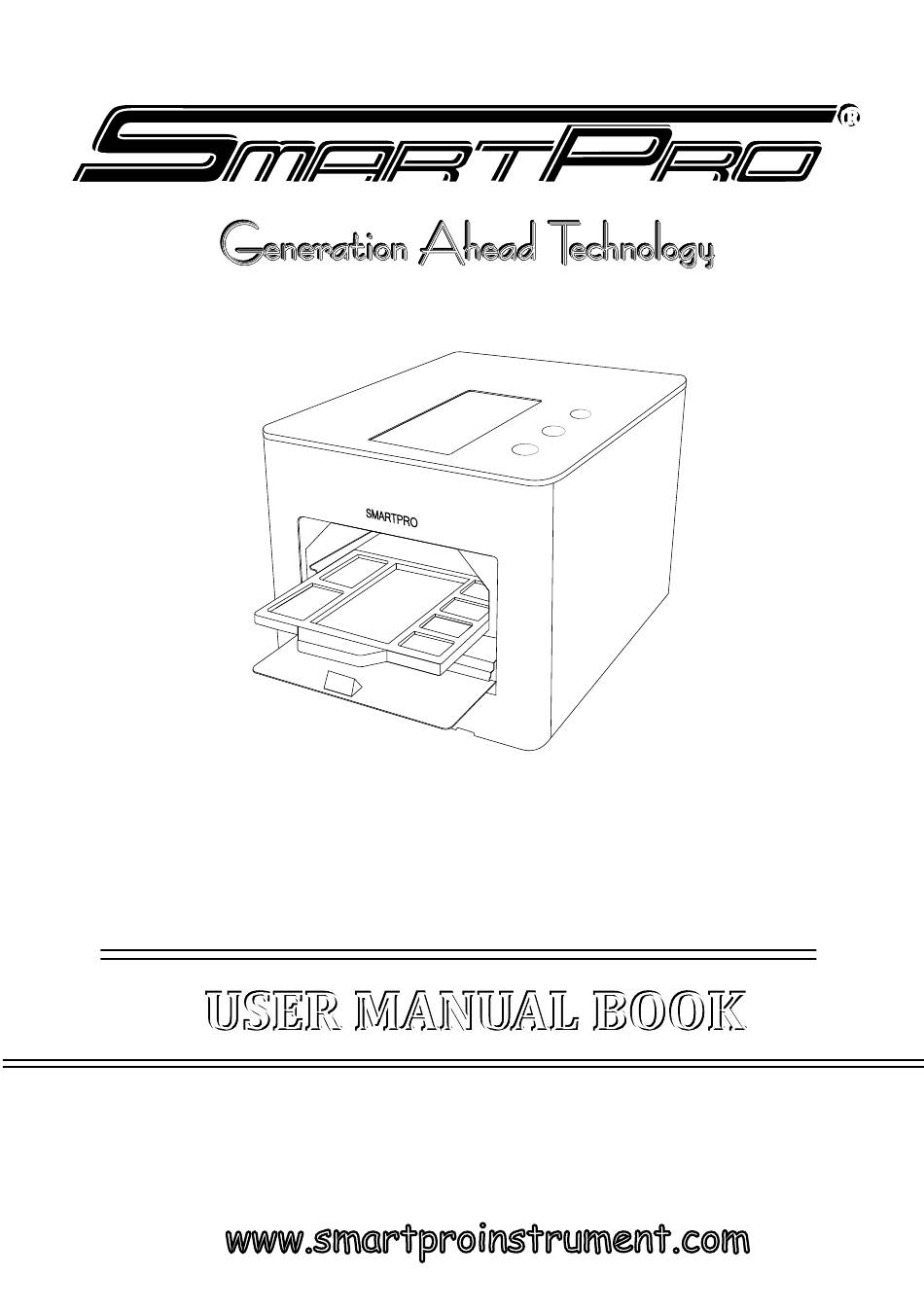

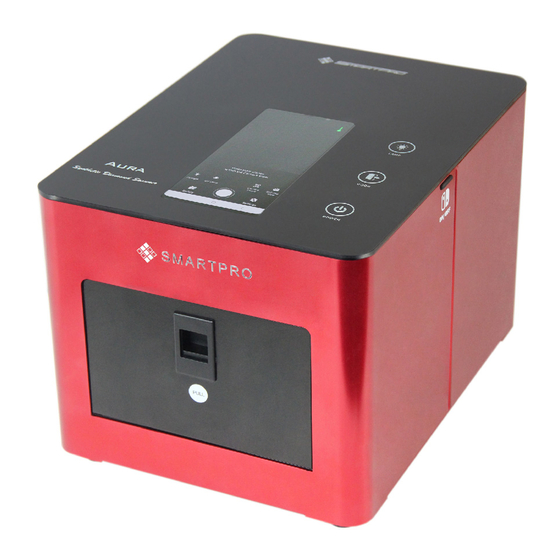

- Page 1 AURA AURA USER MANUAL BOOK USER MANUAL BOOK www.smartproinstrument.com...
-
Page 2: Table Of Contents
USER’S MANUAL v1.4.1 SmartPro Aura Synthetic Diamond Scanner CONTENTS DISCLAMERS, EXCLUSIONS AND LIMITATIONS OF LIABILITY ABOUT SMARTPRO AURA III. FEATURES AND ADVANTAGES PRODUCT SPECIFICATIONS TESTER OVERVIEW ACCESSORIES VII. POWERING DEVICE VIII. TESTER LIGHT INDICATORS CONTROL SETTINGS TESTING / DETECTION TEST RESULT VIEW MODE XII. -
Page 3: Of Liability
Smartpro Aura referred to in this user manual is provided and/or sold on “as is” basis. Except as required by applicable law, no warranties of any kind, expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 4: Features And Advantages
III. FEATURES AND ADVANTAGES 1. FEATURES Able to test Mounted Jewelry and loose stones Able to Detect as small as 0.05mm stones Built-in high-end Smartphone with high camera Resolution Low current consumption 360-degree view for Rings and Jewelry Test Result Sharing Manual Mode View Auto Detection Mode View 2. -
Page 5: Tester Overview
Estimated Maximum Count of Stones per test: 520 loose stones (5 pcs. per block) Time Duration per test Approximately 18 secs. (loose detection) Loose Stone Tray Size (camera view) 64 x 104 mm Tester Body Dimensions 230 x 301.5 mm Weight prox. - Page 6 2. MOBILE SCREEN OVERVIEW Mobile Temperature Indicator UV Lamp Camera Focus Control Control Daylight 360-degree Control ManualControl Pictrue Menu Settings Gallery Back Button Test/Capture Button...
-
Page 7: Accessories
ACCESSORIES 1. LOOSE STONE TRAY - VIEW SIZE: 64 x 104 MM Waiting for test slots Testing slots (camera view) DIAMOND FOR TEST Tested Diamond Slot Tested CVD Slot FOR TEST HPHT Tested HPHT Slot OTHER Tested other stone Slot Label guide on the tray 2. -
Page 8: Powering Device
3.2 Bracelet attachment VII. POWERING DEVICE 1. Turning ON the AURA Box. 1.1 Connect the Power Cable into the Inlet Power Socket at back side of AURA then the other side to the power Outlet. 1.2 Switch ON the Inlet Power Switch. -
Page 9: Tester Light Indicators
Note: if the UV lamp is turned ON then suddenly the Door opens, Lamp will automatically will turned OFF. 2. Door Indicator 2.1 No light – indicates that the door of the AURA box is fully closed. 2.2 Red light – indicates that the door of the AURA box is opened. -
Page 10: Control Settings
IX. CONTROL SETTINGS User may control light source for capturing images such as Daylight and fluores- cent image of stones. To have a better quality of images, user may adjust the following controls: 1. Daylight Icon – controls the Daylight LED source ON/OFF. 2. -
Page 11: Testing / Detection
I. TESTING / DETECTION There are many types of mounting styles of the stones in Jewelry and others are selling in loose. So we created a tester that is able to test Different settings. Here are the Detection Options that are available Test / Capture Button Loose Detection Options Jewelry Detection Options... - Page 12 Stones are nearly placed Stones are separated with each other. with each other. 1.2 Bulk Stones Detection – (This option is currently unavailable. This feature will be available soon.) 2. Jewelry Stones Detection 2.1 On Tray Detection – used to test mounted stones such as rings, earrings and bangles on testing tray.
-
Page 13: Test Result View Mode
Arrange the Jewelry on the same height as possible to get a better camera focus for the best detection process Jewelries are placed with the Jewelries are placed with not the same height. same height. Detection - used to test mounted stones such as rings, necklace and bangles that are attached to a built-in stepper motor to test in 360 2.3 360 Degrees Detection - used to test mounted stones such as rings, necklace and bangles that are attached to a built-in motor to rotate in 360... - Page 14 Boarder Color Equivalent : Diamond Yellow Blue HPHT Pink Undefined White View Mode Preview Image Touch for View Mode Summary Test Result Go to Test Certificate Touch for View Mode Save Detection Images to Gallery User can be able to zoom-in and zoom-out the Fluorescent Image Delete Test Result while the Daylight image will follow...
- Page 15 2. Jewelry Detection In this detection mode, Laboratory Grown stones will automatically be marked as red, while the other stones will be observed by the User by comparing the Stones being tested with the Reference Images. Here are the Reference Images: Diamond Cubic Zirconia (CZ) CVD Synthetic...
- Page 16 2.1 Jewelry On Tray Preview Image View mode Daylight Touch for Image View Mode Result Image Reference Images Slide the stones to see more images. Touch for View Mode 3. Jewelry Detection – 360 View The same detection as Jewelry on tray but uses a Jewelry attachment to hold Rings and Jewelries and a motor for the rotation.
-
Page 17: Test Certificate
XII. TEST CERTIFICATE In order to show the test result professionally, Smartpro has made a auto-generated Test Certificate that will be found in the Preview Page after the detection process. This Certification may send directly to any email address by clicking the share button. - Page 18 2. OVERVIEW Test Unique ID Fluorescent Image Test Result Test Results with counting and estimated stone diameter Details and Remarks Smartpro Website QR code...
-
Page 19: Sharing Images / Test Certificate
XIII. SHARING IMAGES / TEST CERTIFICATE Go to Gallery and choose the image / file you want to share and touch the share Icon then enter the Receiver’s email address. This needs an internet connection. Make sure that you turned ON the Wi-Fi and connect to the internet. -
Page 20: Image / Folder Gallery
XVI. IMAGE / FOLDER GALLERY Image Gallery has 3 Main folders to save images from detection and captured images which these images will be saved automatically to their respective folder. The Main folders are Jewelry Detection folder, Loose Detection folder, and Captured Images folder. - Page 21 2. SEARCH FOLDER Users can search folder by date like in the picture below: Type here the date to filter the folders. 3. DELETING FOLDERS OR IMAGES In case the user wants to delete each image or folder, just touch the delete icon on the image to delete.
- Page 22 3. Deleting Folders or Images In case user wants to delete each image or folder, just click the delete icon between the share and print icons. Delete Icon For Multiple folders/images deletion, touch and hold the image/folder and then choose the images/folders to be deleted, then touch the Delete Icon on upper right side of the screen to delete.
-
Page 23: Main Settings
2. If the tester will not going to be used for an extended amount of time, should to keep on its proper place. 3. Operating temperature of SP-Aura is designed to work in ambient temperatures between 32° and 95° F (0° and 35° C) and stored in temperatures between -4° and 113°... -
Page 24: Troubleshooting / Faqs
Check the fuse if broken inside the power switch. If mobile is unable to turn-on, let it charge its battery by turning ON the AURA Box power switch at the back of the tester. Let the mobile charge for some time before using. - Page 25 Copyright © 2014 SmartPro Instrument Co., Ltd. All rights reserved.
