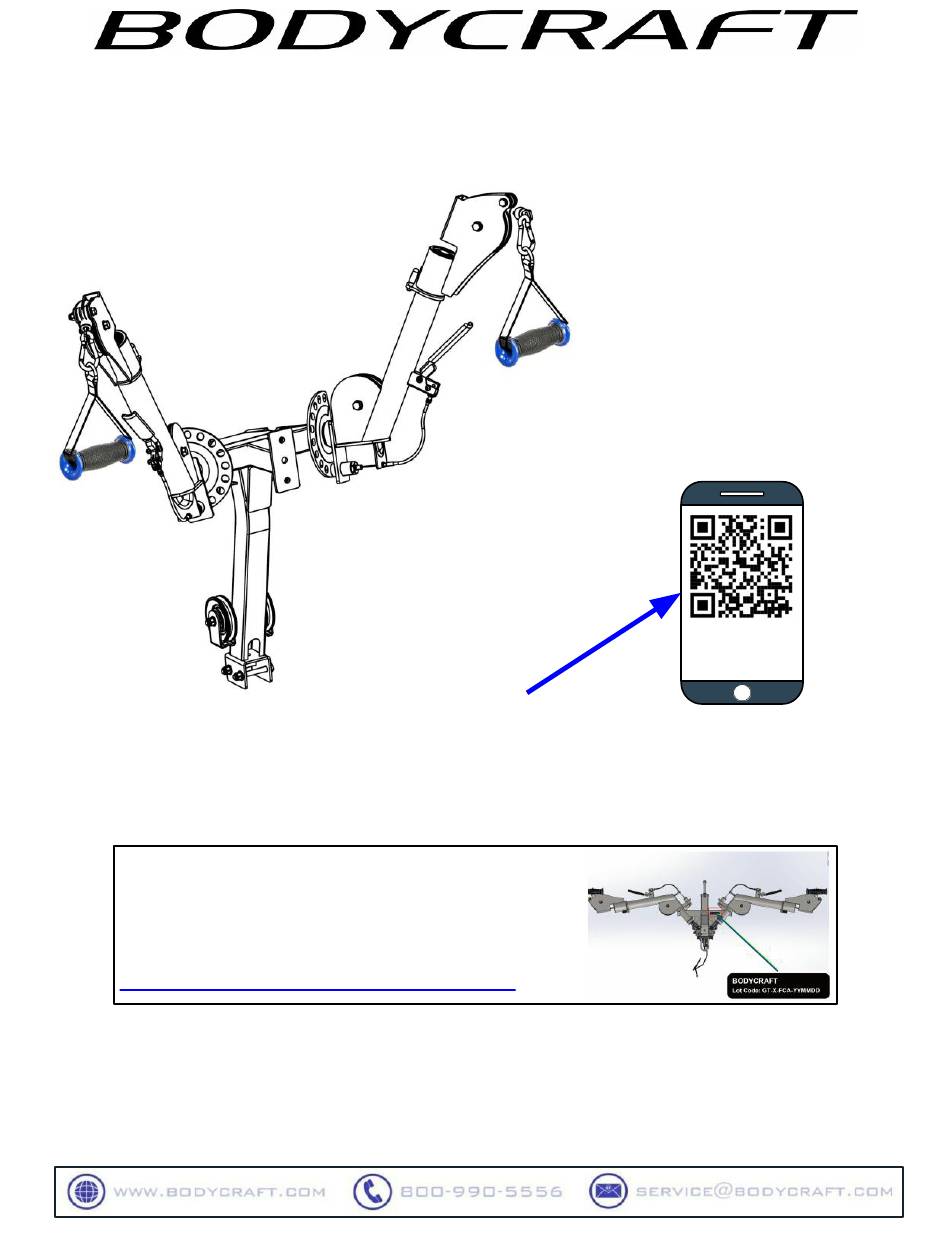

GT Functional Cable Arm Option
for the BODYCRAFT GT (Strength Training System)
Open your Camera
App and point it at
the QR Code
To see in
FULL COLOR
& additional information,
scan this QR code.
Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer's Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/
Owner's Manual
Advertisement
Table of Contents
Related Manuals for Recreation Supply BODYCRAFT GT-FCA (GTX)
Summary of Contents for Recreation Supply BODYCRAFT GT-FCA (GTX)
- Page 1 GT Functional Cable Arm Option for the BODYCRAFT GT (Strength Training System) Open your Camera App and point it at the QR Code To see in FULL COLOR & additional information, scan this QR code. Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _ Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________ Please register your products at:...
- Page 2 This page intentionally left blank...
- Page 3 Please call your local dealer or BODYCRAFT. BODYCRAFT (a division of Recreation Supply, Inc.) 7699 Green Meadows Dr. Lewis Center, OH 43035...
-
Page 4: Table Of Contents
Table of Contents, GT-FCA (GTX) NOTE: When you have downloaded the Owner’s Manual into a PDF reader, go directly to the desired page by touching words in this Table of Contents. Product Safety Information Page Product Safety ……………………………………………………………... Important Notes, Recommended Tools & Cleaners …………………….. -
Page 5: Product Safety
● Before beginning this or any other exercise program, consult your physician. This is especially important for individuals over the age of 35 or persons with preexisting health problems. Recreation Supply, Inc. assumes no responsibility for personal injury or property damage sustained by or through use of this product. -
Page 6: Important Notes, Recommended Tools & Cleaners
Important Notes, Recommended Tools & Cleaners , GT-FCA (GTX) Important Notes and Tips: Before assembly, read all instructions thoroughly and preview diagrams to help make the installation easier. 2. Make sure all parts are accounted for and in proper condition before beginning assembly. See the parts list. -
Page 7: Machine Dimensions, Room Layouts & Weight Ratios
Machine Dimensions, Room Layouts, & Weight Ratios, GT-FCA (GTX) Your BODYCRAFT GT Strength Training System with Options was designed to be placed in a corner. 200% with GT Press Arm attached to the FCA cables. Weight Ratios with Single Handle per side. -
Page 8: Assembly Parts & Hardware List
Assembly Parts, GT-FCA (GTX) Part # Assembly Parts List GT-X-FCA-301-ASM Frame, Support with Cable Arms (302) & Cable (311-ASM) - Assembly GT-X-FCA-306 Anti-Twist Cable Guide, for Cable #309 GT-X-FCA-309 Cable, Connect between Bottom Frame & Single Pulley Block, 1,850mm (72.8") L GT-X-FCA-310 Cable, Ab Crunch, 4,630mm (182.28") L GT-X-FCA-311-ASM Cable, Lt to Rt Cable Arms, Crimped Eyelet End &... -
Page 9: Shipping Box & What's Inside
Shipping Box & What’s Inside, GT-FCA (GTX) Large Box 1 of 1 Net Weight: 45.2 lbs (20.5 KGS) Gross Weight: 56 lbs (25.4 KGS) Box Size: 30.1” W x 16.9” L x 13.4” H (765mm W x 430mm L x 340mm H) BODYCRAFT reserves the right to make improvements at any time which may affect color, parts, materials, size, weight, or any other... -
Page 10: Product Assembly - How To Assemble The Gt-Fca (Gtx) Pre-Assembly Tips
Product Assembly - Preassembly Tips, GT-FCA (GTX) PREASSEMBLY TIP #1 – “Stage Right”. During the assembly process we will be stating Right, Left, Front, Back, Top, or Bottom. These all are in the perspective of the user in the machine facing outward with feet on the ground. See below images as examples. -
Page 11: Decision Point & Step 1
Product Assembly, GT-FCA (GTX), DECISION POINT & STEP 1a DECISION POINT GT-FCA (GTX) 1a If you currently have a GT Strength If you are simultaneously assembling the: Training System and are now adding GT Strength Training System the GT-FCA (GTX) Option: GT-FCA (GTX) Option Go to STEP 1b Go to STEP 1a below... - Page 12 Product Assembly, GT-FCA (GTX), STEP 1b - 1e OVERVIEW NOTE: Cable Arms #302 will be assembled together once Support Frame #301-ASM is attached to the GT base unit in STEP 1b - 1e. Support Frame #301-ASM comes as one full assembly with Cable #311-ASM pre-routed.
- Page 13 Product Assembly, GT-FCA (GTX), STEP 1b - 1c “Torque Time” TEP 1b: Install Support Frame NOTE: Shown without Cable Arms & Cable for easy to follow Frame Support #301-ASM installation to GT base unit, during this STEP. 17 ft-lbs (+/- 2 lbs) 17 ft-lbs (+/- 2 lbs) Recommended Tools:...
- Page 14 Product Assembly, GT-FCA (GTX), STEP 1d TEP 1d: Install Right & Left Cable Arms 3 ft-lbs (+/- 0.5 lbs) Cable Arms follow pre-routed #311-ASM Cable NOTE: Shown with Frame Support #301-ASM installed on GT base unit for easier installation of the Cable Arms with Cable #311-ASM pre-routed in the Frame Support.
- Page 15 Product Assembly, GT-FCA (GTX), STEP 1e TEP 1e: Adjustment for Right & Left Cable Arms’ Smooth Movement Recommended Tool 5/16” ALLEN WRENCH Fully tighten at this time to the Recommended Torque Specs Watch Assembly Video GT-FCA (GTX) STEP 1e...
- Page 16 Product Assembly, GT-FCA (GTX), DECISION POINT & STEP 1f DECISION POINT GT-FCA (GTX) 1f If you currently have a GT Strength If you are simultaneously assembling the: Training System and are now GT Strength Training System upgrading to GT-FCA (GTX) Ab Crunch Cable #310 GT-FCA (GTX) Option Please...
- Page 17 Product Assembly, GT-FCA (GTX), STEP 2a TEP 2a: Take off Pulleys P14 - P18 & GT-Ab Cable #37 NOTE: This STEP 2a is ONLY if you currently have a GT Strength Training System assembled and now adding the GT-FCA (GTX) Option. Recommended Tools 9/16 SOCKET &...
-
Page 18: Step 2 - Ab Crunch Cable (#310)
Product Assembly, GT-FCA (GTX), STEP 2 (Ab Crunch Cable #310) - OVERVIEW Ab Crunch Cable #310 4,630mm (182.28") L 68 & 321 3-1/2” Pulleys P14 - P18 & P24 Pulleys are numbered GREEN circles for installation routing. 4-1/2” Pulley P13 Pulleys are numbered GREEN circles for... - Page 19 Product Assembly, GT-FCA (GTX), STEP 2b - 2c Please Hand Tighten All Nuts & Bolts Until STEP 2j TEP 2b - 2c: Install Ab Crunch Cable (310) & Pulleys P13 - P14 Part # Assembly Parts List GT-X-FCA-310 Cable, Ab Crunch, 4,630mm (182.28") L Part # Assembly Hardware GT-X-076...
- Page 20 Product Assembly, GT-FCA (GTX), STEP 2d - 2f Please Hand Tighten All Nuts & Bolts Until STEP 2j TEP 2d - 2f: Install Pulleys P15, P24 & P16 Part # Assembly Parts List Spacer Sleeve, between Pulleys P5 & P16 on GT-X-043 Top Frame GT-X-068...
- Page 21 Product Assembly, GT-FCA (GTX), STEP 2g - 2i Please Hand Tighten All Nuts & Bolts Until STEP 2j TEP 2g & 2h: Install Pulleys P17 - P18 TEP 2i: Install Cable to Main Frame #1-ASM Part # Assembly Parts List GT-X-068 Pulley, 90mm (3-1/2") x δ26mm ID GT-X-071...
- Page 22 Product Assembly, GT-FCA (GTX), STEP 2j “Torque Time” STEP 2j: “Torque Time” ● Tighten all 3/8” Bolts to the recommended torque specs of 17 ft-lbs (+/- 2 lbs) Recommended Tools: 17 ft-lbs (+/- 2 lbs) TORQUE WRENCH w/ 9/16 SOCKET &...
-
Page 23: Step 3 - Connect Cable (#309)
Product Assembly, GT-FCA (GTX), STEP 3 (Connect Cable #309) - OVERVIEW Connect Cable #309 1,850mm (72.8") L 3-1/2” Pulley Pulleys are numbered GREEN circles for installation routing. NOTE: Actual color of Connect Cable #309 is black. Shown in the assembly STEPS in ORANGE for easy viewing... - Page 24 Product Assembly, GT-FCA (GTX), STEP 3a - 3c TEP 3a: Install Anti-Twist Cable Guide STEP 3b: Install Pulley P25 & Cable #309 17 ft-lbs (+/- 2 lbs) 17 ft-lbs (+/- 2 lbs) Recommended Tools TEP 3c: Install Cable to Main 9/16 SOCKET &...
-
Page 25: Step 4 - Lower Cable (#38)
Product Assembly, GT-FCA (GTX), STEP 4 (Lower Cable #38) - OVERVIEW Lower Cable #38 3,080mm (121.25") L 3-1/2” Pulleys P19 - P23 Pulleys are numbered GREEN circles for installation routing. NOTE: Actual color of Lower Cable #38 is black. Shown in the assembly STEPS in ORANGE for easy viewing... - Page 26 Product Assembly, GT-FCA (GTX), STEP 4a - 4b Please Hand Tighten All Nuts & Bolts Until STEP 4g TEP 4a - 4b: Install Lower Cable #38 & Pulleys P19 - P20 Part # Assembly Parts List GT-X-038 Cable, Lower, 3,080mm (121.25") L GT-X-068 Pulley, 90mm (3-1/2") x δ26mm ID Part #...
- Page 27 Product Assembly, GT-FCA (GTX), STEP 4c - 4e Please Hand Tighten All Nuts & Bolts Until STEP 4g TEP 4c: Install Pulley P21 TEP 4d-e: Install Pulleys P22 & P23 Part # Assembly Hardware GT-X-089 Washer, Flat, 3/8" - BLK Part # Assembly Parts List GT-X-102...
- Page 28 Product Assembly, GT-FCA (GTX), STEP 4f - 4g “Torque Time” TEP 4f: Install Cable Ball End to Leg Ext. Arm STEP 4g: “Torque Time” ● Tighten all 3/8” Bolts to the recommended torque specs of 17 ft-lbs (+/- 2 lbs) 17 ft-lbs (+/- 2 lbs) Recommended Tools:...
-
Page 29: Step 5 - Cable Arm Cable (#311)
Product Assembly, GT-FCA (GTX), STEP 5 (Cable Arms Cable #311-ASM) - OVERVIEW Cable Arm Cable #311-ASM 5,210mm (205.20") L 3-1/2” Pulley Pulleys are numbered GREEN circles for installation routing. NOTE: Actual color of Cable Arm Cable #311-ASM is black. Shown in the assembly STEPS in ORANGE for easy viewing... - Page 30 Product Assembly, GT-FCA (GTX), STEP 5a - 5b TEP 5a: Take off Anti-Twist Cable Guide TEP 5b: Install Pulley P26 & “Torque Time” 17 ft-lbs (+/- 2 lbs) Recommended Tools: TORQUE WRENCH w/ 9/16 SOCKET & 9/16 WRENCH Fully tighten at this time to the Recommended Torque Specs Part # Assembly Parts List...
- Page 31 Product Assembly, GT-FCA (GTX), STEP 6a - 6c TEP 6a-b: Take off the Blue “GT” Trim Panel and Flip to Back Side NOTE: When installing the “GTX” Stainless Part # Detailed Parts list for STEP 6a - 6b Steel Trim Panel: GT-X-008 Trim Panel, Blue, for Top of Press Arm Use the 10mm longer screws #342...
-
Page 32: Step 6 & Step 7 - Gtx Trim Panel & Adjust Cable Tension
Product Assembly, GT-FCA (GTX), STEP 7 TEP 7: Adjust the Cable for Correct Tension. End of Connect Cable #309 then secure the lock nut. Recommended Tools ADJUSTABLE WRENCHES Watch Assembly Video GT-FCA (GTX) STEP 7 - Adj. Cables Part # Assembly Parts List GT-X-FCA-309 Cable, Connect between Bottom Frame &... -
Page 33: Step 8 - Final Assembly Clean Up, Polish & Double Checks
Product Assembly, Final Assembly Clean up, Lube & Polish, GT-FCA (GTX) STEP 8a - 8b: Final Assembly Clean Up & Polish STEP 8a: Remove all Assembly Stickers, i.e. Part Numbers & Right / Left Circles ● Easy to remove with fingernail or plastic scraper ●... -
Page 34: Detailed Parts List
Detailed Parts List, GT-FCA (GTX) 1 of 2 Part # Detailed Parts list GT-X-FCA-301 Frame, Support GT-X-FCA-302 Frame, Cable Arm GT-X-FCA-303 Frame, Swivel Pulley GT-X-FCA-304 Lever, Left Clutch GT-X-FCA-305 Lever, Right Clutch GT-X-FCA-306 Anti-Twist Cable Guide, for Cable #309 GT-X-FCA-307 Spacer, between Cable Arm &... - Page 35 Detailed Parts List, GT-FCA (GTX) 2 of 2 Part # Detailed Parts list GT-X-FCA-328 Washer, Spring, 3/8" - BLK GT-X-FCA-329 Washer, Spring, φ5mm - Stainless Steel GT-X-FCA-330 Washer, Flat, φ6mm - Stainless Steel GT-X-FCA-331 Washer, Flat, φ5mm - Stainless Steel GT-X-FCA-332 Washer, Flat, 3/8″...
-
Page 36: Detailed Parts Exploded View
Detailed Parts, Exploded View, GT-FCA (GTX) Trim Panel, Stainless Steel Double Block Pulley Single Block Pulley 3-1/2″ Left Cable Arm 3-1/2″ 3-1/2″ 330 318 4-1/2″ 332 334 Inner Hex Screw #344 4-1/2″ 5/16″ x 1/4″ L - BLK 3-1/2″ 3-1/2″ 337 328 332 Accessories 3-1/2″... -
Page 37: Required Info Before Initiating A Service Case
Service Request Required Information BEFORE Initiating a Service Case The following information is needed to help expedite troubleshooting and to ensure the correct part(s) are sent if needed for a repair: What product / model # do you have? Unit serial number? Installed by a dealer or direct sale? Date of installation? Date of service issue? -
Page 38: Product Warranty
Product Warranty - Strength VALID FOR USA AND CANADA ONLY (Please consult with your local distributor for warranty info specific to your region). BODYCRAFT warrants its products to be free of defects in materials and workmanship for the time stated below to the original purchaser. -
Page 39: Product Warranty Registration
Warranty Registration - Strength Thank you for purchasing a BODYCRAFT product. To validate the product warranty the fast and easy way, please go on-line now to https://www.bodycraft.com/product-registration.html register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
