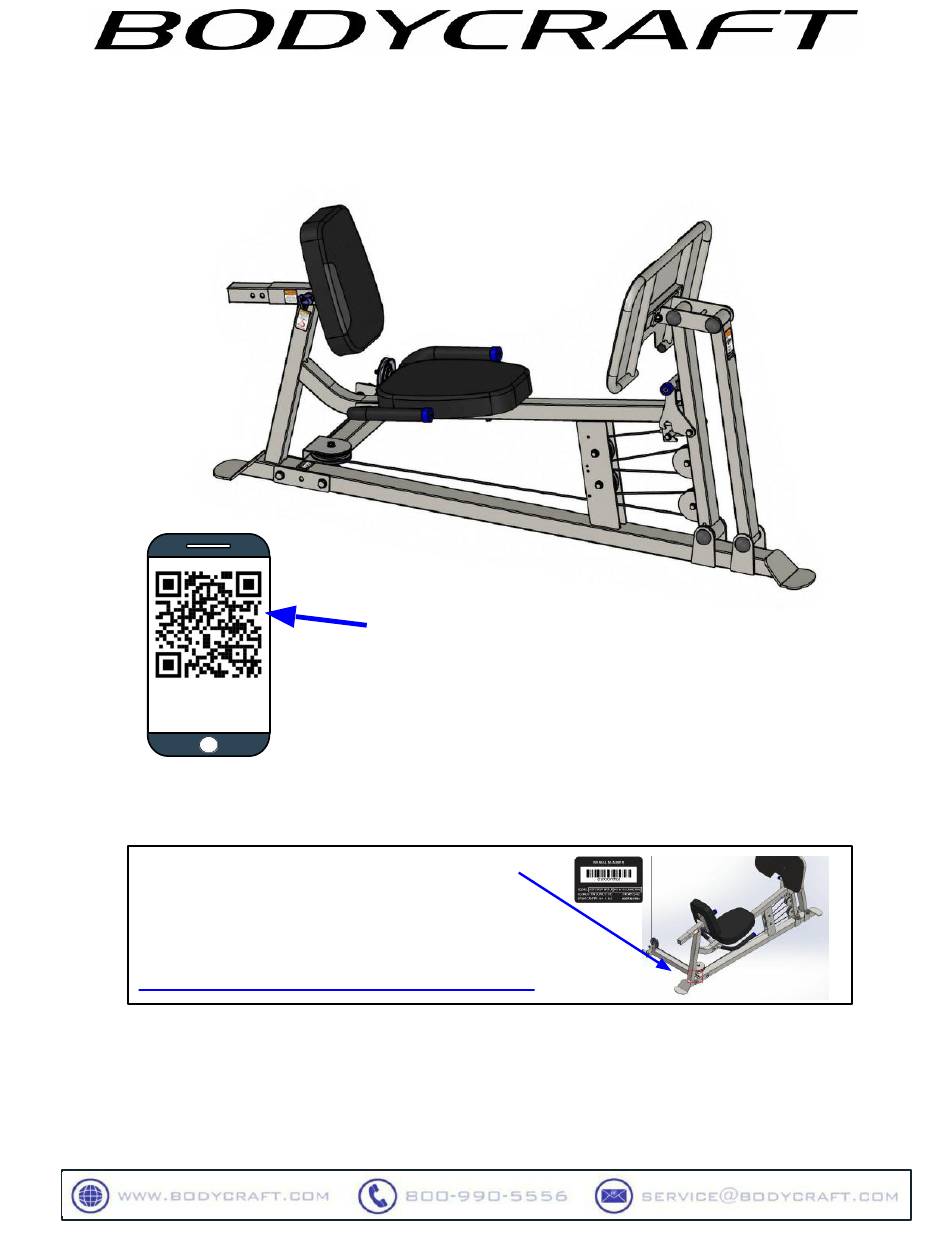

Leg Press Option
for the BODYCRAFT GT / GTX (Strength Training System)
To see in
FULL COLOR
& additional information,
scan this QR code.
Open your Camera
App and point it at
the QR Code
US Patent # 10,821,316
Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer's Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/
Owner's Manual
GT-X-LP v1.2
1
Advertisement
Table of Contents
Related Manuals for Recreation Supply BodyCraft GT-LP
Summary of Contents for Recreation Supply BodyCraft GT-LP
- Page 1 Leg Press Option for the BODYCRAFT GT / GTX (Strength Training System) To see in FULL COLOR & additional information, scan this QR code. Open your Camera App and point it at the QR Code US Patent # 10,821,316 Base Serial Number: _ _ _ _ _ _ _ _ _ _ _ _ _ Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________ Please register your products at:...
- Page 2 This page intentionally left blank...
- Page 3 Please call your local dealer or BODYCRAFT. BODYCRAFT (a division of Recreation Supply, Inc.) 7699 Green Meadows Dr. Lewis Center, OH 43035...
-
Page 4: Table Of Contents
Table of Contents, GT-LP Leg Press NOTE: When you have downloaded the Owner’s Manual into a PDF reader, go directly to the desired page by touching words in this Table of Contents. Product Safety Information Page Product Safety ……………………………………………………………... Important Notes, Recommended Tools & Cleaners …………………….. Warning Labels, Serial Number Placements……………….……………... -
Page 5: Product Safety
● Before beginning this or any other exercise program, consult your physician. This is especially important for individuals over the age of 35 or persons with preexisting health problems. Recreation Supply, Inc. assumes no responsibility for personal injury or property damage sustained by or through use of this product. -
Page 6: Important Notes, Recommended Tools & Cleaners
Important Notes, Recommended Tools & Cleaners , GT-LP (Leg Press) Important Notes and Tips: Before assembly, read all instructions thoroughly and preview diagrams to help make the installation easier. 2. Make sure all parts are accounted for and in proper condition before beginning assembly. See the parts list. -
Page 7: Warning Labels, Serial Number Placements
Warning Labels & Serial Number, GT-LP (Leg Press) Carefully read ALL Warning, Caution & Maintenance Schedule labels... -
Page 8: Machine Dimensions, Room Layouts & Weight Ratios
Machine Dimensions, Room Layouts, & Weight Ratios, GT-LP (Leg Press) Your BODYCRAFT GT Strength Training System with Options was designed to be placed in a corner. Weight Ratios 200% w/o hook engaged 300% with hook engaged for Turbo Feature... -
Page 9: Assembly Parts List
Assembly Parts, GT-LP (Leg Press) 1 of 2 Part # Assembly Parts List GT-X-LP-201 Frame, Connecting to GT-X base unit GT-X-LP-202-ASM Frame, Main Base - Assembly GT-X-LP-203-ASM Leg Press Support, Rear - Assembly GT-X-LP-204-ASM Frame, Seat Handle - Assembly GT-X-LP-205-ASM Back Pad Adjuster - Assembly GT-X-LP-206-ASM Foot Plate, with Black Diamond Plate - Assembly GT-X-LP-207-ASM Leg Press Support, Front - Assembly GT-X-LP-208... -
Page 10: Assembly Parts Hardware
Assembly Parts, Hardware, GT-LP (Leg Press) 2 of 2 Part # Assembly Hardware GT-X-LP-232 Bolt, Hex Head, 3/8″ x 1″ L - BLK GT-X-LP-233 Bolt, Hex Head, 3/8″ x 1-1/4″ L - BLK GT-X-LP-234 Bolt, Hex Head, 3/8″ x 2″ L - BLK GT-X-LP-235 Bolt, Hex Head, 3/8″... -
Page 11: Shipping Box & What's Inside
Shipping Box & What’s Inside, GT-LP (Leg Press) Large Box 1 of 1 Net Weight: 111.1 lbs (50.4 KGS) Gross Weight: 126.3 lbs (57.3 KGS) Box Size: 73.8” W x 26.8” L x 7.1” H (1,875mm W x 680mm L x 180mm H) BODYCRAFT reserves the right to make improvements at any time which may affect color, parts, materials, size, weight, or any other aspect. -
Page 12: Pre-Assembly Tips
Product Assembly - Preassembly Tips, GT-LP (Leg Press) PREASSEMBLY TIP #1 – “Stage Right”. During the assembly process we will be stating Right, Left, Front, Back, Top, or Bottom. These all are in the perspective of the user in the machine facing outward with feet on the ground. See below images as examples. -
Page 13: Step 1A Thru Step 3B - Main Assembly Procedures
Product Assembly, GT-LP (Leg Press), STEP 1a - 1b Please Hand Tighten All Nuts & Bolts Until STEP 2f TEP 1a - 1b: Install 1/2″ x 3-1/8″ Connecting Frame and Main Frame. 1/2″ x 3-1/8″ Part # Assembly Parts List GT-X-LP-201 Frame, Connecting to GT-X base unit GT-X-LP-202-ASM Frame, Main Base - Assembly... - Page 14 Product Assembly, GT-LP (Leg Press), STEP 2a - 2b Please Hand Tighten All Nuts & Bolts Until STEP 2f TEP 2a - 2b: Install Front & Rear Leg Supports TIP: Use a sm Allen Wrench to lower the Inner Spacer #211 during installation of Rear Support Assembly #203-ASM Flat notch through the...
- Page 15 Product Assembly, GT-LP (Leg Press), STEP 2c TEP 2c: Install Hook to Rear Support. Note: Fully tighten until the gap is closed. Then loosen, up to 1/8 so that the Hook (210-ASM) will move but has no play. Loosen or tighten so Hook (210-ASM) will stay in the up position when not used.
- Page 16 Product Assembly, GT-LP (Leg Press), STEP 2d Please Hand Tighten All Nuts & Bolts Until STEP 2f TEP 2d: Install Leg Press Upper Connector Flat notch through the right side to left side. Part # Assembly Parts List GT-X-LP-208 Leg Press Upper Connector GT-X-LP-209 Axle, w/ one side flat notch , 25mm OD x 1/2"...
- Page 17 Product Assembly, GT-LP (Leg Press), STEP 2e - 2f “Torque Time” TEP 2e: Install Foot Plate Part # Assembly Parts List Recommended Tools GT-X-LP-206-ASM Foot Plate, with Black Diamond Plate - Assembly Part # Assembly Hardware GT-X-LP-242 Bolt, Recessed Countersunk Head, 1/2" x 2" L - BLK 5/16”...
- Page 18 Product Assembly, GT-LP (Leg Press), STEP 3a Please Hand Tighten All Nuts & Bolts Until STEP 3c TEP 3a: Install Seat Handle Frame Lightly tighten the bottom bolt #232 first Part # Assembly Parts List GT-X-LP-204-ASM Frame, Seat Handle - Assembly Part # Assembly Hardware GT-X-LP-232...
- Page 19 Product Assembly, GT-LP (Leg Press), STEP 3b - 3c “Torque Time” 8 ft-lbs TEP 3b: Install (+/- 1 lbs) Back & Seat Pads 8 ft-lbs Use both back set of holes for Seat Pad #216 (+/- 1 lbs) STEP 3c: “Torque Time” Part # Assembly Parts List GT-X-LP-205-ASM Back Pad Adjuster - Assembly...
-
Page 20: Step 4A Thru 5 - Leg Press Cable Assembly & "Torque Time
Product Assembly, GT-LP (Leg Press), STEP 4 - OVERVIEW NOTE: Actual color of Leg Press Cable #217 is black. Shown in the assembly STEPS in ORANGE easy viewing. 4,850mm ( 191” ) Part # Assembly Parts List GT-X-LP-217 Cable, Leg Press, 4,850mm (191") 3-1/2”... - Page 21 Product Assembly, GT-LP (Leg Press), STEP 4a Please Hand All Nuts & Bolts Until STEP 5 TEP 4a: Install Cable w/ Spacers Part # Assembly Parts List GT-X-LP-212 Spacer, 10.5mm OD x 16mm ID x 46mm L - Chrome GT-X-LP-217 Cable, Leg Press, 4,850mm (191") Part # Assembly Hardware...
- Page 22 Product Assembly, GT-LP (Leg Press), STEP 4b - 4c Please Hand Tighten All Nuts & Bolts Until STEP 5 TEP 4b - 4c: Install Pulleys P35 & P36 (3-½”) Part # Assembly Parts List Bushing, Plastic, for GT-X-LP-213 Pulley to Frame Pulley, 90mm (3-1/2") GT-X-LP-227 x δ26mm ID...
- Page 23 Product Assembly, GT-LP (Leg Press), STEP 4d - 4e Please Hand Tighten All Nuts & Bolts Until STEP 5 TEP 4d - 4e: Install Pulleys P37 & P38 (3-½”) Part # Assembly Parts List Bushing, Plastic, for GT-X-LP-213 Pulley to Frame Pulley, 90mm (3-1/2") GT-X-LP-227 x δ26mm ID...
- Page 24 Product Assembly, GT-LP (Leg Press), STEP 4f - 4g Please Hand Tighten All Nuts & Bolts Until STEP 5 TEP 4f - 4g: Install Pulleys P39 (4-½”) & P40 (3-½”) Part # Assembly Parts List GT-X-LP-227 Pulley, 90mm (3-1/2") x δ26mm ID GT-X-LP-228 Pulley, 114mm (4-1/2") x δ26mm ID Part #...
- Page 25 Product Assembly. GT-LP (Leg Press), DECISION POINT & STEP 4h DECISION POINT If you are simultaneously assembling the: If you currently have a GT Strength GT Strength Training System Training System and are now adding the GT-LP Leg Press Option: GT-LP Leg Press Option Go to STEP 4h below Go to STEP 4i...
- Page 26 Product Assembly, GT-LP (Leg Press), STEP 4i Please Hand Tighten All Nuts & Bolts Until STEP 5 TEP 4i: Install Adjustable Stopper and Leg Press Cable Recommended Tool ADJUSTABLE WRENCH Screw in Adjustable Stopper 50% into the Top Connector Frame. Then screw in Cable (217) Bolt 50% into the Pulley Block.
- Page 27 Product Assembly, GT-LP (Leg Press), STEP 5 “Torque Time” STEP 5: “Torque Time” ● Tighten all 3/8” Bolts & Nuts from STEP 4a - STEP 4i to the recommended torque specs of 17 ft-lbs (+/- 2 lbs) 17 ft-lbs (+/- 2 lbs) Recommended Tools: TORQUE WRENCH w/ 9/16 SOCKET &...
-
Page 28: Step 6A Thru 6B - Assembly Domed Caps & Adj. The Cable
Product Assembly, GT-LP (Leg Press), STEP 6a - 6b TEP 6a: Install Plastic Domed Caps (Total of 8, on both right & left sides) Recommended Tool Part # Assembly Parts List RUBBER MALLET GT-X-LP-223 Cap, Plastic, Domed for 1/2" Bolt & Nut Ends TEP 6b: Adjust the Cable for Correct Tension. -
Page 29: Step 7 - Final Assembly Clean Up, Polish & Double Checks
Product Assembly, Final Assembly Clean up, Lube & Polish, GT-LP (Leg Press) STEP 7: Final Assembly Clean Up & Polish STEP 7a: Remove all Assembly Stickers, i.e. Part Numbers & Right / Left Circles ● Easy to remove with fingernail or plastic scraper ●... - Page 30 Detailed Parts List, GT-LP (Leg Press) 1 of 2 Part # Detailed Parts list GT-X-LP-201 Frame, Connecting to GT-X base unit GT-X-LP-202 Frame, Main Base GT-X-LP-203 Leg Press Support, Rear GT-X-LP-204 Frame, Seat Handle GT-X-LP-205 Back Pad Adjuster GT-X-LP-206 Foot Plate, with Black Diamond Plate GT-X-LP-207 Leg Press Support, Front GT-X-LP-208...
-
Page 31: Detailed Parts List
Detailed Parts List, GT-LP (Leg Press) 2 of 2 Part # Detailed Parts list GT-X-LP-232 Bolt, Hex Head, 3/8″ x 1″ L - BLK GT-X-LP-233 Bolt, Hex Head, 3/8″ x 1-1/4″ L - BLK GT-X-LP-234 Bolt, Hex Head, 3/8″ x 2″ L - BLK GT-X-LP-235 Bolt, Hex Head, 3/8″... -
Page 32: Detailed Parts Exploded View
Detailed Parts, Exploded View, GT-LP (Leg Press) Connecting Frame Spacers for w/ Pulleys Cable #217 3-1/2 Adjustable Stopper, between Top Connector Frame & Single Block Pulley Back Pad Adjuster 226 233 249 245 4-1/2 Foot Plate & Upper Connector Main Base 3-1/2 Frame 3-1/2... -
Page 33: Required Info Before Initiating A Service Case
Service Request Required Information BEFORE Initiating a Service Case The following information is needed to help expedite troubleshooting and to ensure the correct part(s) are sent if needed for a repair: What product / model # do you have? Unit serial number? Installed by a dealer or direct sale? Date of installation? Date of service issue? -
Page 34: Product Warranty
Product Warranty - Strength VALID FOR USA AND CANADA ONLY (Please consult with your local distributor for warranty info specific to your region). BODYCRAFT warrants its products to be free of defects in materials and workmanship for the time stated below to the original purchaser. -
Page 35: Product Warranty Registration
Warranty Registration - Strength Thank you for purchasing a BODYCRAFT product. To validate the product warranty the fast and easy way, please go on-line now to https://www.bodycraft.com/product-registration.html register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
