Power Supply Selection - E2S BExDTS110D Instruction Manual

Area Classification Dust:
Zone 21 Explosive dust air mixture likely to occur in
normal operation.
Zone 22 Explosive dust air mixture not likely to occur,
and if it does, it will only exist for a short time.
IP Rating: IP67
Equipment Category:
Ambient Temperature Range:
-50°C to +55°C Gas Groups IIA, IIB and IIC
-50°C to +70°C Gas Group IIA and IIB
6)
Sontel Location and Mounting
The location of the Sontels should be made with due regard to
the area over which the warning signal must be audible. And
they should only be fixed to services that can carry the weight
of the unit.
The Sontels should be securely bolted to a suitable surface
using the 7mm diameter boltholes in the stainless steel U
shaped mounting bracket (see figure 1). The angle can then be
adjusted in the direction that the sound is primarily required to
cover. This can be achieved by loosening the two large bracket
screws in the side of the unit, which allow adjustment in steps
of 18°. On completion of the installation the two large bracket
adjustment screws on the side of the unit must be fully
tightened to ensure that the unit cannot move in service.
Plastic Acoustic Horn
(Anti-static Plastic)

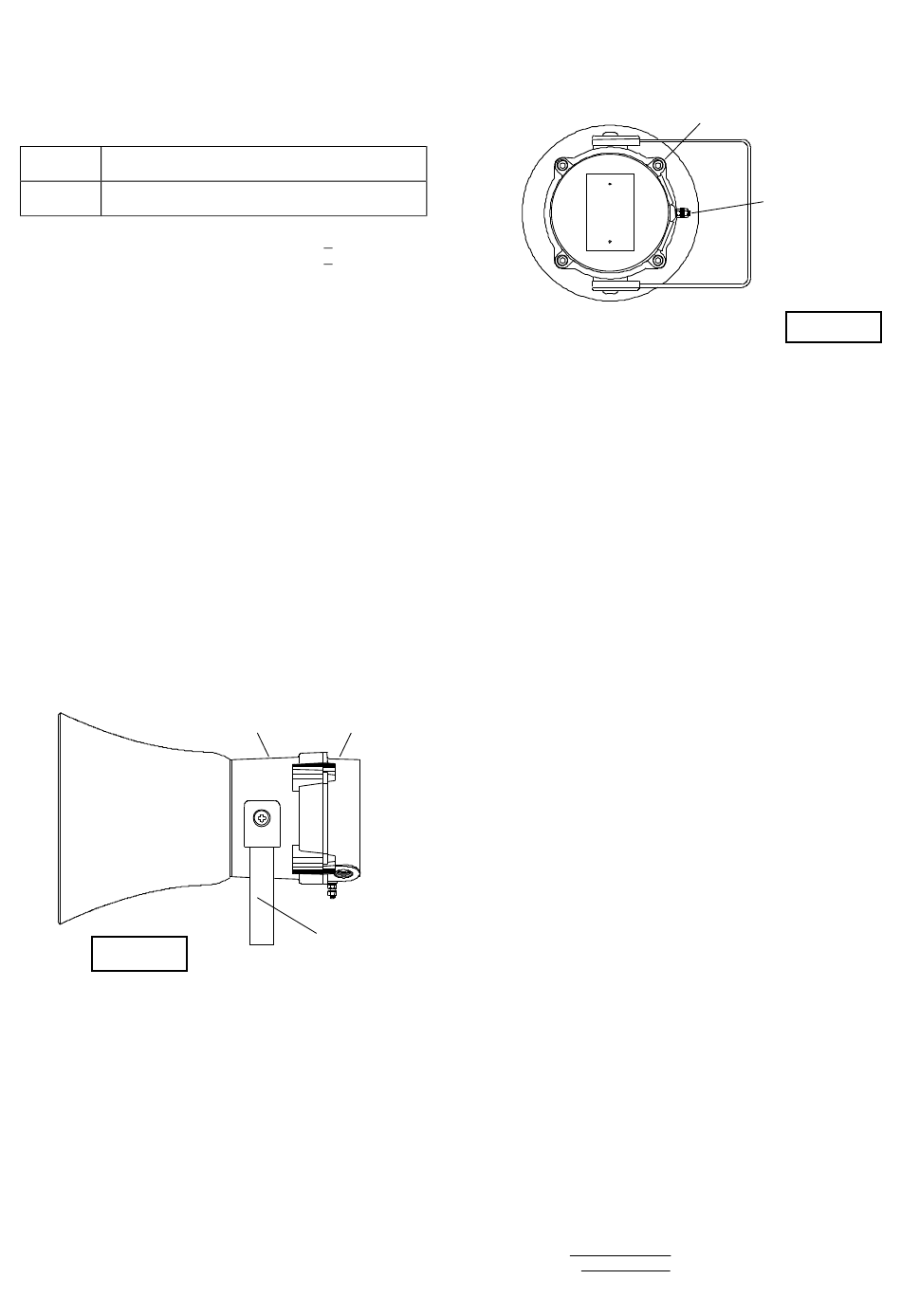

Figure 1
7)
Access to the Flameproof Enclosure
In order to connect the electrical supply cable and the
telephone line cable to the Sontel it is necessary to remove the
flameproof cover to gain access to the flameproof chamber.
To achieve this remove the four M6 hexagon socket head
screws (see figure 2) and withdraw the flameproof cover taking
extreme care not to damage the flameproof joints in the
process.
