E2S BExCS110-L1 Instruction Manual

1) Introduction

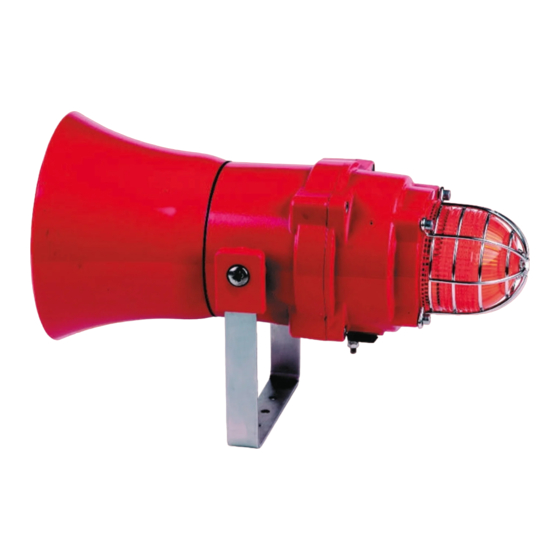

The BExCS110-L1D is a flameproof combined sounder / LED
beacon which is certified meet the requirements of the ATEX
directive 94/9/EC and the IECEx Scheme. The combined unit
produces both loud audio warning signals and visual warning
signals that can be used in hazardous areas where
potentially flammable atmospheres may be present. Thirty-
two different first stage audio alarm sounds can be selected
by internal switches, and each one can be externally
changed to a second or third stage alarm sound (see tone
table on Page 5). The sounder produces output levels in the
110dB(A) range. Nine different flash patterns can be selected
including a steady ON state and can also be remotely
switched to a second and third flash pattern (see flash pattern
table on page 5). The unit can be used in Zone 1 and Zone 2
areas with gases in groups IIA and IIB and with Temperature
Classifications of T1, T2, T3 and T4.
2) Marking
All units have a rating label, which carries the following
important information:-
BExCS110-L1D
Unit Type No.
Input Voltage: DC Units
AC Units
Ex d IIB T4 for T
Code:
KEMA 01ATEX2223X
Certificate No.
IECEx KEM 10.0025X
Epsilon x:
Equipment Group
and Category:
CE Marking:
Notified Body No.
"Warnings"
DO NOT OPEN WHEN AN EXPLOSIVE
GAS ATMOSPHERE IS PRESENT
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND
CABLE GLANDS (Rated 110ºC) AT
AMB. TEMPERATURES OVER 40ºC
Year of Construction /
Serial No.
3)
Type Approval Standards
The units have an EC Type examination certificate issued by
KEMA and have been approved to the following standards:-
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. IS 2446-P
INSTRUCTION MANUAL (ATEX / IECEx)
Flameproof Combined Sounder / LED Beacon
12V or 24V or 48V
230V or 115V
°
–50 C to +70
a
II 2G
0518
i.e. 10 / 1CS51000001
Issue C 23-04-10
BExCS110-L1D
EN60079-0:2006 IEC60079-0:2004 (Ed4)
EN60079-1:2007 IEC60079-1:2007 (Ed6)
4)
Installation Requirements
The unit must be installed in accordance with the latest
issues of the relevant parts of the EN60079 specifications or
the equivalent IEC specifications – Selection, Installation and
maintenance of electrical apparatus for use in potentially
explosive atmospheres (other than mining applications or
explosive processing and manufacture):-
EN60079-14:2008
IEC60079-14:2007 (Ed4)
EN60079-10:2003
IEC60079-10:2008 (Ed1)
The installation of the unit must also be in accordance with
any local codes that may apply and should only be carried
out by a competent electrical engineer who has the
necessary training.
5)
Zones, Gas Group, Category and Temperature
Classification
The BExCS110-L1D unit has been certified Ex d IIB T4 for T
°
–50 C to +70
°
C
locations with the following conditions:-
Area Classification:
Zone 1
Zone 2
Gas Groupings:
Equipment Category:
Temperature Classification:
Ambient Temperature Range:
Sheet 1 of 6
Electrical Installations in Hazardous
Areas (other than mines)
Classification of Hazardous Areas
°
C. This means that the units can be installed in
Explosive gas air mixture likely to occur in
normal operation.
Explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
Group IIA Propane
Group IIB Ethylene
2G
o
T1 400 C
o
T2 300 C
o
T3 200 C
o
T4 135 C
-50°C to +70°C
sales@e-2-s.com Tel: +44 (0)208 743 8880
www.e-2-s.com Fax: +44 (0)208 740 4200
General Requirements
