LINOVISION POE-Switch0504GD Quick Start Manual

Power Connection:
V V+
-
GND
12~48VDC
Functional Description
● 410/100/1000Base-TX+11000Base-FXor 10/100/1000Base-TX uplink
● 10/100/1000Mbps RJ45 Port Supports Ful/Hali-duplex, Auto-negotiation, AutoMD/MD
● Supports 802.3x Flow control
● PoE Optional,IEEE802.3af/at
● 9K Bytes Jumbo Frame
● Redundant Power Inputs
● Supports Wal-mount and DIN-Rail installation
● -40 ℃to 80° ℃(-40°Fto 176°F)operating temperature

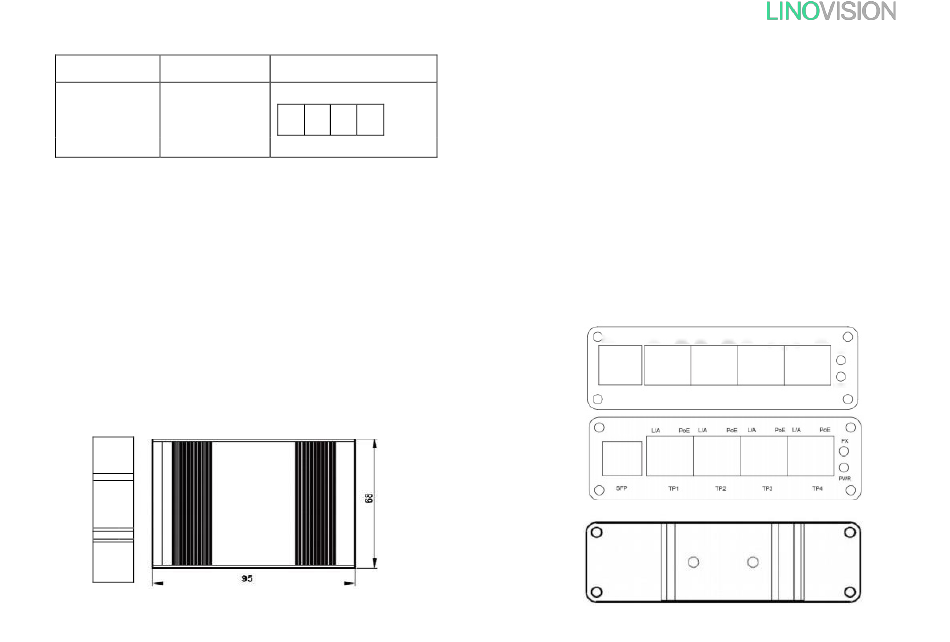

Dimensions Drawing of the Product(Unit:mm)
O
Power Input
O O O
12~48V
V- V+ V- V+
This quick start guide describes how to install and use the Hardened Etheret
switch. This is the Ethernet switch of choice for harsh environments
constrained by space.
Overview
This Series is 4 ports 10/ 100/1000Base-TX+ 1 port 1000Base-FX or
10/100/1000Base-TX uplink Hardened Ethernet switch. The Switch has 4 TP
ports and 1 fiber ports. TP(RJ45)supports 10/100/1000Base-T(X), FullHalf
duplex mode, and auto MDI/MDI-X connection; 1000Base-FX sup- ports 1 or, 2
core Single-mode or Multi-mode fiber. With its reliable design and ease of use
the product is a great choice for integrating networks consisting of network
devices such as IP cameras and wireless access points between remote
locations.
General
To ensure trouble free transportaton and storage,all products must be thoroughly
inspected, tested and properly packed before delivery. Checkthe product upon
receipt for any visible damage which may have been caused during shipment.
Physical Description
Front Panel
LA
LA
POE L/A
UPLNK TP1
Rear Panel
LA PoE
PE
PeE LA
SPD
PWR
TP2 TP3 TP4
