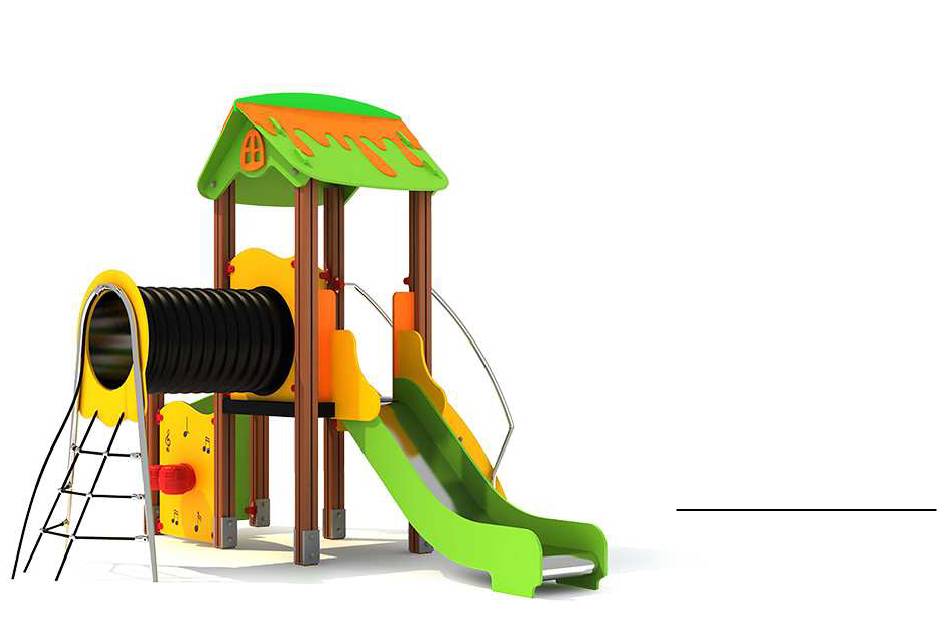

- Page 1 BENITO –Play JPIN01 Instrucciones de montaje Instructions de montage Assembly instructions...
- Page 2 Area de seguridad: 30,00 m² Safe area: Aire de sécurité 1000 Altura max. caida: Maximum drop high: 0,90 m Hauter maximale de chute: Nº usuarios: Number of users: Nombre d'utilisateurs: Edad: Age: Age: 2 / 23 BENITO –Urban –Light –Play –Covers...
- Page 3 3400 3390 3 / 23 BENITO –Urban –Light –Play –Covers...
- Page 4 IMPORTANT: for installation and foundation of the game are necessary The playing surface must be covered by a floor to avoid the impact, according tools usually employed in the construction. to standard EN 1176-1:2017 4 / 23 BENITO –Urban –Light –Play –Covers...
- Page 5 Agujero para poste Trou por le porteaux Hole for post 5 / 23 BENITO –Urban –Light –Play –Covers...
- Page 6 Inserte el hardware correspondiente y apriételo. Confirm the location of post foot plate, as shown in the diagram. Align the post foot plate connect holes with each of the posts. Insert corresponding hardware and tighten. 6 / 23 BENITO –Urban –Light –Play –Covers...
- Page 7 Inserte el hardware correspondiente y apriételo. Confirm the location of square deck, as shown in the diagram. Align the square deck holes with the holes on the posts. DIN125 M10 Insert corresponding hardware and tighten. 7 / 23 BENITO –Urban –Light –Play –Covers...
- Page 8 Inserte el hardware correspondiente y apriételo. Tapon/cap/bouchon Confirm the location of PE stair steps, as shown in the diagram. Align the steps with each of connect hole on the stair. Insert corresponding hardware and tighten. 8 / 23 BENITO –Urban –Light –Play –Covers...
- Page 9 Confirm the location of PE stair handrail, as shown M10x65 in the diagram. Align the PE stair handrail with corresponding holes on the post and the guardrail Insert corresponding hardware and tighten. 9 / 23 BENITO –Urban –Light –Play –Covers...
- Page 10 Inserte el hardware correspondiente y apriételo. Confirm the location of PE stair guardrail, as shown in the diagram. Align the guardrail with the post clamps and the connect hole on rail. Insert corresponding hardware and tighten. 10 / 23 BENITO –Urban –Light –Play –Covers...
- Page 11 Inserte el hardware correspondiente y apriételo. Confirm the crawl tunnel exit connect location, as shown in the diagram. Align the crawl tunnel exit connect holes with the post. Insert corresponding hardware and tighten. 11 / 23 BENITO –Urban –Light –Play –Covers...
- Page 12 Inserte el hardware correspondiente y apriételo. Confirm the location of crawl tunnel support, as shown in the diagram. Align the crawl tunnel support with the tunnel entrance connect hole. Insert corresponding hardware and tighten. 12 / 23 BENITO –Urban –Light –Play –Covers...
- Page 13 Inserte el hardware correspondiente y apriételo. M10x25 Confirm the PE clok panel location, as shown in the diagram. Align the PE clok panel connect holes with the posts. Insert corresponding hardware and tighten. 13 / 23 BENITO –Urban –Light –Play –Covers...
- Page 14 Inserte el hardware correspondiente y apriételo. DIN125 M10 M10x25 Confirm the PE dual drum panel location, as shown in the diagram. Align the PE dual drum panel holes with the posts. Insert corresponding hardware and tighten. 14 / 23 BENITO –Urban –Light –Play –Covers...
- Page 15 Inserte el hardware correspondiente y apriételo. Confirm the PE world map panel location, as shown in the diagram. Align the PE world map panel holes with the posts. Insert corresponding hardware and tighten. 15 / 23 BENITO –Urban –Light –Play –Covers...
- Page 16 Inserte el hardware correspondiente y apriételo. Confirm the location of PE top handrail, as shown in the diagram. Align the PE top handrail with corresponding holes with the posts. Insert corresponding hardware and tighten. 16 / 23 BENITO –Urban –Light –Play –Covers...
- Page 17 Inserte el hardware correspondiente y apriételo. Confirm the location of PE slide panel pipe, as shown in the diagram. Align the PE slide panel pipe connect hole with the posts. Insert corresponding hardware and tighten. 17 / 23 BENITO –Urban –Light –Play –Covers...
- Page 18 Inserte el hardware correspondiente y apriételo. Confirm the location of PE slide rail, as shown in the diagram. Align the PE slide rail connect hole with the panel pipe connect hole. Insert corresponding hardware and tighten. 18 / 23 BENITO –Urban –Light –Play –Covers...
- Page 19 Confirm the location of PE stianless slide, as shown in the diagram. Align the connect hole on the top of PE stainless slide with the corresponding holes on the deck. Insert corresponding hardware and tighten. 19 / 23 BENITO –Urban –Light –Play –Covers...
- Page 20 Inserte el hardware correspondiente y apriételo. Confirm the location of PE slide rail, as shown in the diagram. Align the PE slide rail connect hole with corresponding holes on the stainless slide. Insert corresponding hardware and tighten. 20 / 23 BENITO –Urban –Light –Play –Covers...
- Page 21 Inserte el hardware correspondiente y apriételo. Confirm the position of PE tree decoration, as shown in the diagram. Align the PE tree decoration connect holes with the posts. Insert corresponding hardware and tighten. 21 / 23 BENITO –Urban –Light –Play –Covers...
- Page 22 Inserte el hardware correspondiente y apriételo. Confirm the position of PE volcano gable roof, as shown in the diagram. Align the PE volcano gable roof connect holes with each of the posts. Insert corresponding hardware and tighten. 22 / 23 BENITO –Urban –Light –Play –Covers...
-
Page 23: Inspection Avant Utilisation
6.-Vérifiez que les massifs de scellement sont assez profonds. BENITO URBAN se reserva el derecho de modificar sin previo aviso la información contenida en este documento. | BENITO URBAN se réserve le droit de modifier ses produits sans préavis les informations contenues dans le présent document.
