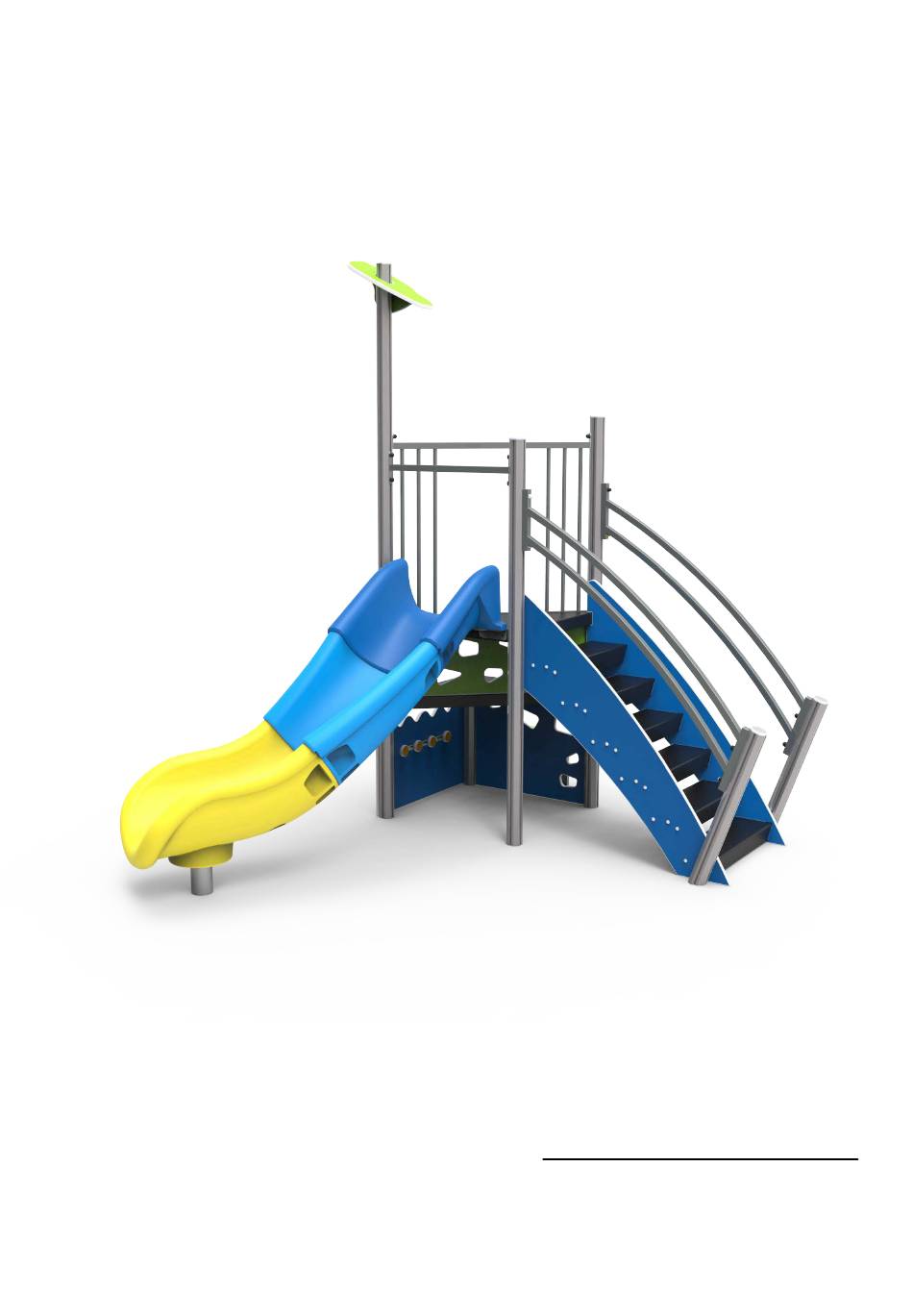

- Page 1 BENITO –Play Alu 2 JALU02 Instrucciones de montaje Instructions de montage Assembly instructions...
- Page 2 6148 1500 Area de seguridad: Safety area: 24 m2 Aire de sécurité: Altura max. caida: Maximum drop high: 1000 mm Hauter maximale de chute: Nº usuarios: Number of users: Nombre d'utilisateurs: Edad: Age: Age: JALU02 - ALU 2...
- Page 3 Make diggings as shown in below scheme. Into these diggings foundation plinths will take place. (NOTE: only once equipment is totally assembled). WARNING: Digging dimensions (if not shown): 40cm x 40cm. Dimensions taken from center to center of digging. Medidas/Dimensions: 130CM 75CM JALU02 - ALU 2...
- Page 4 10 CM Cuidadosamente cubrir el zócalo hasta nivelar con el suelo. NIVEL SUELO GROUND LEVEL Carefully cover plinth until reaching ground level playground. TIERRA SOIL 10 CM JALU02 - ALU 2...
- Page 5 ADVERTENCIA: CONSIDERAR EL ESPESOR DE LA SUPERFICIE DE GOMA SI SE INSTALARÁ. Connect decks to poles as per scheme on following pages. Check deck height from ground level. WARNING: CONSIDERER THICKNESS OF RUBBER SURFACE IF IT WILL BE INSTALLED. H100 JALU02 - ALU 2...
- Page 6 ARANDELA / WASHER DIN125 M8 TORNILLO / BOLT TUERCA / NUT DIN985 M8 ARANDELA / WASHER ARANDELA / WASHER DIN125 M8 DONUT / PLASTIC CAP DIN125 M8 TORNILLO / BOLT ARANDELA / WASHER DIN125 M8 TORNILLO / BOLT JALU02 - ALU 2...
- Page 7 TUERCA / NUT DIN985 M8 DIN125 M8 DONUT / PLASTIC CAP TORNILLO / BOLT INSERTAR EL PERNO | BOLT INSERTING TORNILLO / BOLT ARANDELA / DONUT / PLASTIC CAP WASHER DIN125 M8 TUERCA / NUT DIN985 M8 JALU02 - ALU 2...
- Page 8 TUERCA / NUT DIN985 M8 TORNILLO / BOLT TORNILLO / BOLT ARANDELA / DONUT / PLASTIC CAP ARANDELA / DONUT / PLASTIC CAP WASHER WASHER DIN125 M8 DIN125 M8 TUERCA / NUT DIN985 M8 TUERCA / NUT DIN985 M8 JALU02 - ALU 2...
- Page 9 RIMUOVERE I DADI PROCEDERE CON I DADI PRE-IMPOSTATI ALL’ASSEMBLAGGIO SCREW REMOVE NUTS INSERT THE THREADED ROD PROCEED ASSEMBLY WITH PRE-SET NUTS SUPERFICIE DE ANCLAJE ANCHORAGE SURFACE ARANDELA / WASHER DIN9021 M8 ARANDELA / WASHER DIN125 M8 JALU02 - ALU 2...
- Page 10 SI HAY ESTANCACIÓN DEL AGUA, LA INCLINACIÓN DEL TOBOGÓN DEBE SER MODIFICADA HASTA QUE ALCANCE EL FLUJO DE SALIDA CORRECTO. IF THERE’S WATER STAGNATION, INCLINATION OF SLIDE MUST BE MODIFIED UNTIL REACHING CORRECT OUTFLOW. INICIO PLATAFORMA SALIDA DE AGUA water outflow STARTING DECK NIVEL SUELO GROUND LEVEL TERRA 10 CM SOIL JALU02 - ALU 2...
