BENITO Four JPIN04 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
BENITO
–Play
Four
JPIN04
Instrucciones de montaje
Instructions de montage
Assembly instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Four JPIN04 and is the answer not in the manual?

Questions and answers

Related Manuals for BENITO Four JPIN04

Summary of Contents for BENITO Four JPIN04

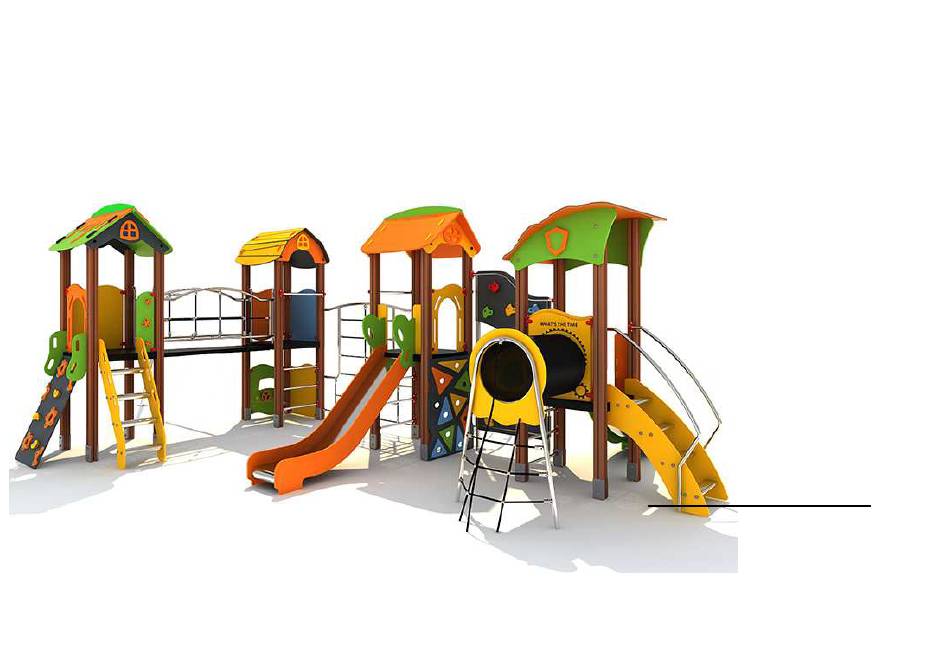

  • Page 1 BENITO –Play Four JPIN04 Instrucciones de montaje Instructions de montage Assembly instructions...
  • Page 2 Area de seguridad: 67,00 m² Safe area: 1500 Aire de sécurité Altura max. caida: Maximum drop high: 2,00 m Hauter maximale de chute: Nº usuarios: Number of users: Nombre d'utilisateurs: Edad: Age: Age: 2 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 3 5980 6770 3 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 4 IMPORTANT: for installation and foundation of the game are necessary The playing surface must be covered by a floor to avoid the impact, according tools usually employed in the construction. to standard EN 1176-1:2017 4 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 5 Agujero para poste Trou por le porteaux 2100 1310 Hole for post 3,30m x 4 3,00m x 4 3,30m x 4 3,30m x 4 5 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 6 Inserte el hardware correspondiente y apriételo. Confirm the location of post foot plate, as shown in the diagram. Align the post foot plate connect holes with each of the posts. Insert corresponding hardware and tighten. 6 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 7 Inserte el hardware correspondiente y apriételo. Confirm the location of square deck, as shown in the diagram. Align the square deck holes with the holes on the posts. DIN125 M10 Insert corresponding hardware and tighten. 7 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 8 Confirm the location of slab bridge exit rail, as shown in the diagram. Align the slab bridge exit rail connect part with corresponding holes on the posts and the deck. Insert corresponding hardware and tighten. 8 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 9 Inserte el hardware correspondiente y apriételo. Confirm the location of slab bridge handrail, as shown in the diagram. Align the slab bridge handrail connector with corresponding holes on the exit rail. Insert corresponding hardware and tighten. 9 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 10 Alinee el conector escalador PE con las columnas. Inserte el hardware correspondiente y apriételo. Confirm the location of PE climber, as shown in the diagram. Align the PE climber connector with the posts. Insert corresponding hardware and tighten. 10 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 11 Inserte el hardware correspondiente y apriételo. Confirm the location of square net climber, as shown in the diagram. Align the top rail of square net climber with the posts. Insert corresponding hardware and tighten. 11 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 12 Inserte el hardware correspondiente y apriételo. DIN7980 M10 Confirm the location of PE exit, as shown in the diagram. Align the PE exit connect hole with the posts. Insert corresponding hardware and tighten. 12 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 13 Inserte el hardware correspondiente y apriételo. Confirm the location of 4’ PE climber, as shown in the diagram. Align the 4’ PE climber connect hole with corresponding holes on the posts. Insert corresponding hardware and tighten. 13 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 14 Inserte el hardware correspondiente y apriételo. Confirm the location of PE climber rail, as shown in the diagram. Align the PE climber rail connect hle with corresponding holes on the posts. Insert corresponding hardware and tighten. 14 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 15 Inserte el hardware correspondiente y apriételo. Confirm the location of PE climber, as shown in the diagram. Align the hole on the top of PE climber with corresponding holes on the deck. Insert corresponding hardware and tighten. 15 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 16 Inserte el hardware correspondiente y apriételo. Confirm the location of PE top handrail, as shown in the diagram. Align the PE top handrail with corresponding holes with the posts. Insert corresponding hardware and tighten. 16 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 17 Inserte el hardware correspondiente y apriételo. Confirm the location of PE climber bar, as shown in the diagram. Align the PE climber bar with corresponding holes on the posts. Insert corresponding hardware and tighten. 17 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 18 Inserte el hardware correspondiente y apriételo. Confirm the location of arch net climber, as shown in the diagram. Align the arch net climber connector with corresponding holes on the deck. Insert corresponding hardware and tighten. 18 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 19 Confirm the location of PE 4’ stair handrail, as shown in the diagram. Align the PE 4’ stair handrail connect hole with corresponding holes on the posts. Insert corresponding hardware and tighten. 19 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 20 Align the hole on the top of PE 4’ stair guardrail DIN125 M8 with corresponding holes on the posts and the handrail. Insert corresponding hardware and tighten. 20 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 21 Tapon/cap/bouchon Confirm the location of PE 4’ stair steps, as shown in the diagram. Align the PE 4’ stair steps with the connect hole on the stair. Insert corresponding hardware and tighten. 21 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 22 Inserte el hardware correspondiente y apriételo. Confirm the location of PE stair steps, as shown in the diagram. Align the steps with each of connect hole on the stair. Insert corresponding hardware and tighten. 22 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 23 Confirm the location PE stair handrail, as shown in Donut the diagram. M10x65 Align the PE stair handrail with corresponding holes on the post and the guardrail. Insert corresponding hardware and tighten. 23 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 24 Inserte el hardware correspondiente y apriételo. Confirm the location of PE stair guardrail, as shown in the diagram. Align the guardrail with the post clamps and the connect hole on rail. Insert corresponding hardware and tighten. 24 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 25 Inserte el hardware correspondiente y apriételo. Confirm the crawl tunnel exit connect location, as shown in the diagram. Align the crawl tunnel exit connect holes with the post. Insert corresponding hardware and tighten. 25 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 26 Inserte el hardware correspondiente y apriételo. Confirm the location of crawl tunnel support, as shown in the diagram. Align the crawl tunnel support with the tunnel entrance connect hole. Insert corresponding hardware and tighten. 26 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 27 Inserte el hardware correspondiente y apriételo. M10x25 Confirm the PE clok panel location, as shown in the diagram. Align the PE clok panel connect holes with the posts. Insert corresponding hardware and tighten. 27 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 28 Inserte el hardware correspondiente y apriételo. M10x25 Confirm the PE thermometer panel location, as shown in the diagram. Align the PE thermometer panel connect holes with the posts. Insert corresponding hardware and tighten. 28 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 29 Inserte el hardware correspondiente y apriételo. M10x25 Confirm the PE music panel location, as shown in the diagram. Align the PE music panel connect holes with the posts. Insert corresponding hardware and tighten. 29 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 30 Inserte el hardware correspondiente y apriételo. DIN125 M10 M10x25 Confirm the PE dual drum panel location, as shown in the diagram. Align the PE dual drum panel holes with the posts. Insert corresponding hardware and tighten. 30 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 31 Inserte el hardware correspondiente y apriételo. M10x25 Confirm the PE car panel location, as shown in the diagram. Align the PE car panel connect holes with the posts. Insert corresponding hardware and tighten. 31 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 32 Inserte el hardware correspondiente y apriételo. Confirm the location of PE top handrail, as shown in the diagram. Align the PE top handrail with corresponding holes with the posts. Insert corresponding hardware and tighten. 32 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 33 Inserte el hardware correspondiente y apriételo. Confirm the location of PE slide panel pipe, as shown in the diagram. Align the PE slide panel pipe connect hole with the posts. Insert corresponding hardware and tighten. 33 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 34 Inserte el hardware correspondiente y apriételo. Confirm the location of PE slide rail, as shown in the diagram. Align the PE slide rail connect hole with the panel pipe connect hole. Insert corresponding hardware and tighten. 34 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 35 Confirm the location of PE stianless slide, as shown in the diagram. Align the connect hole on the top of PE stainless slide with the corresponding holes on the deck. Insert corresponding hardware and tighten. 35 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 36 Inserte el hardware correspondiente y apriételo. Confirm the location of PE slide rail, as shown in the diagram. Align the PE slide rail connect hole with corresponding holes on the stainless slide. Insert corresponding hardware and tighten. 36 / 38 BENITO –Urban –Light –Play –Covers...
  • Page 37 Inserte el hardware correspondiente y apriételo. Confirm the position of PE volcano gable roof, as shown in the diagram. Align the PE volcano gable roof connect holes with each of the posts. Insert corresponding hardware and tighten. 37 / 38 BENITO –Urban –Light –Play –Covers...

  • Page 38: Inspection Avant Utilisation

    6.-Vérifiez que les massifs de scellement sont assez profonds. BENITO URBAN se reserva el derecho de modificar sin previo aviso la información contenida en este documento. | BENITO URBAN se réserve le droit de modifier ses produits sans préavis les informations contenues dans le présent document.
