Hardware Installation

CPU

Overview
The system board is equipped with a surface mount mPGA478P
CPU socket.
Installing the CPU
1. Make sure the PC and all other peripheral devices connected to
it has been powered down.
2. Disconnect all power cords and cables.

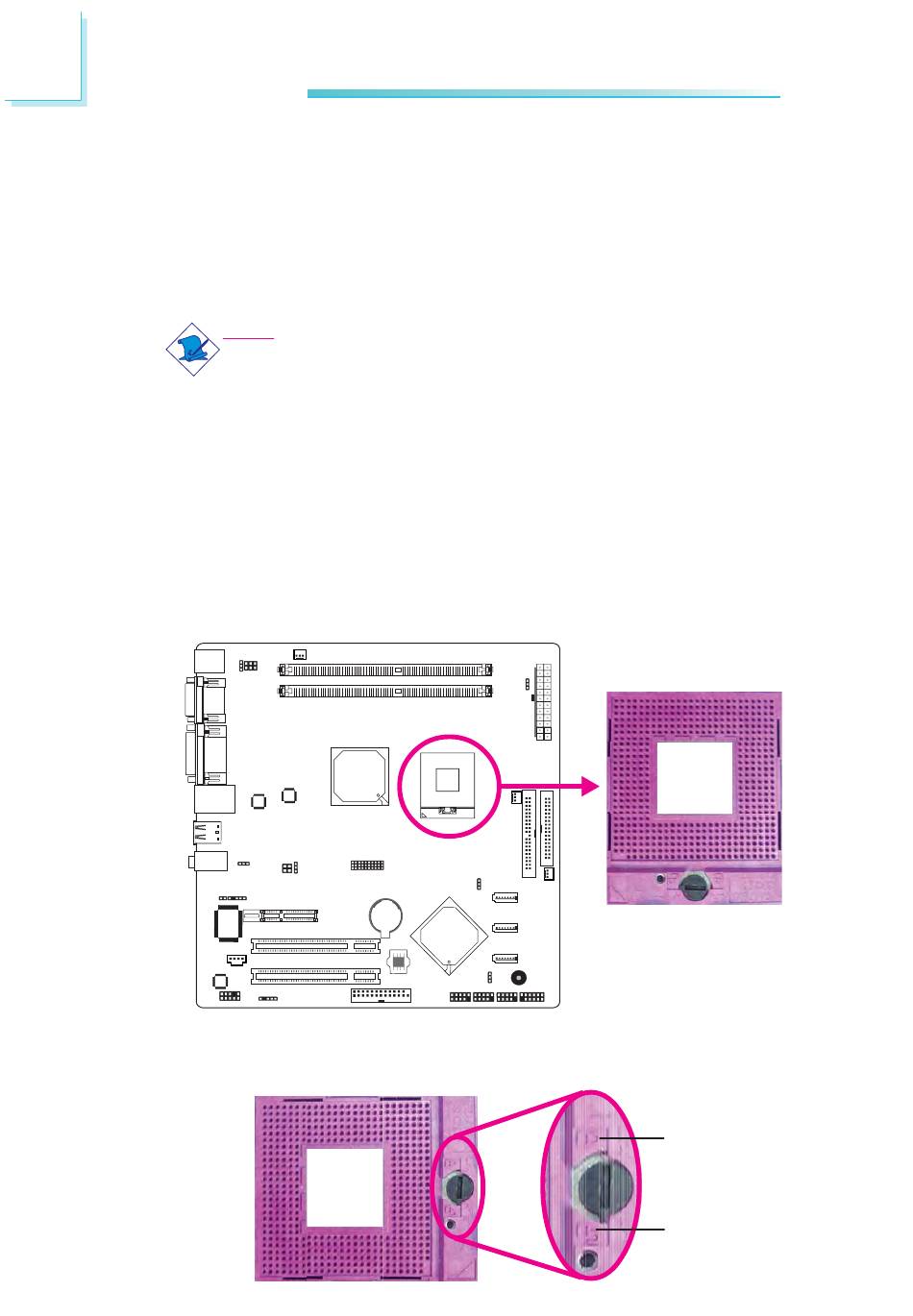

3. Locate the mPGA478P socket on the system board.
4. Use a screwdriver to turn the screw to its unlock position.
18
Note:
The system board used in the following illustrations may not re-
semble the actual one. These illustrations are for reference only.
1
Lock
Unlock
