SONBEST SM3710V2 User Manual

Dc0-10v voltage type duct type temperature and humidity sensor
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
http://www.sonbus.com/

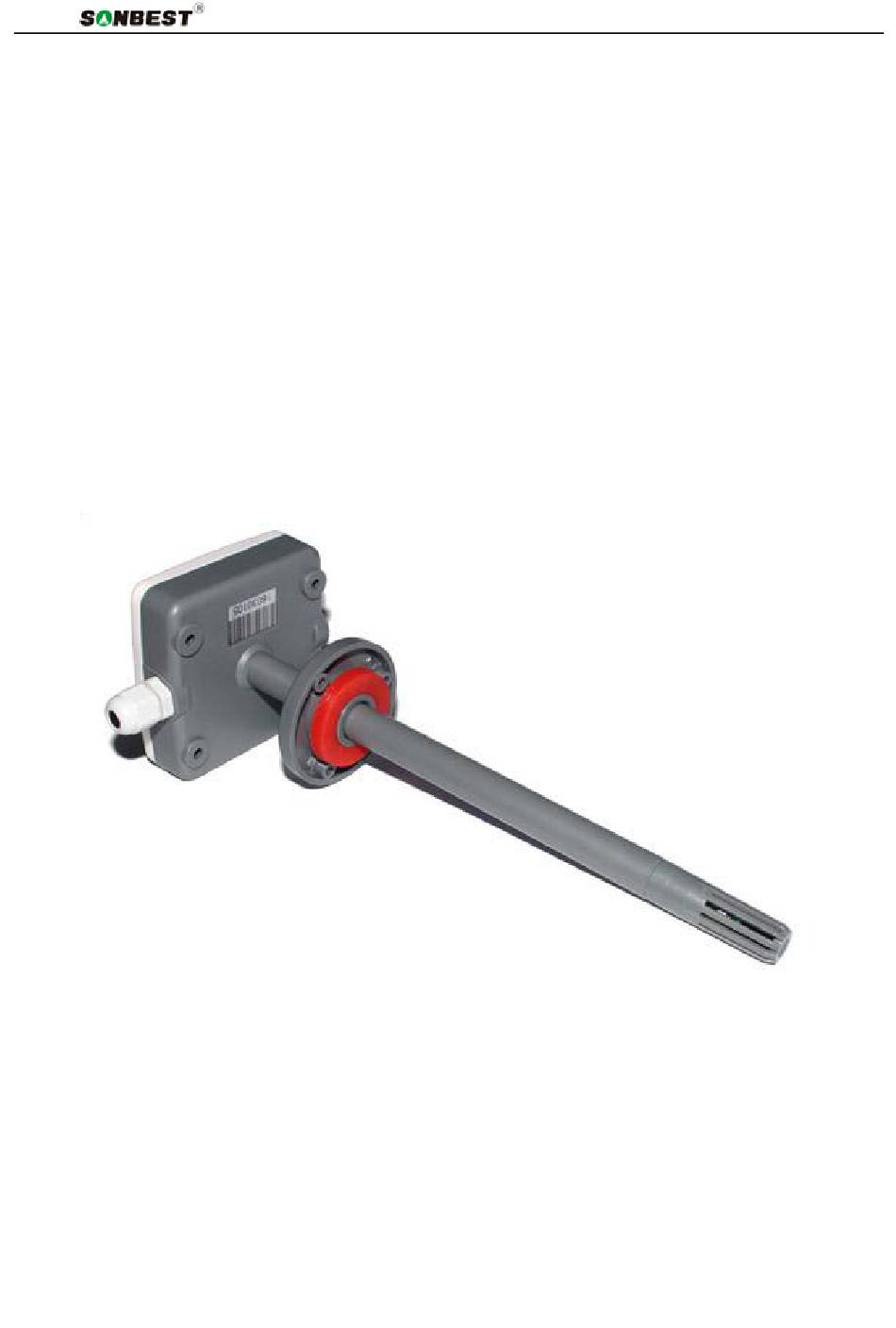

SM3710V2 Us er Ma nual
SM3710V2
DC0-10V voltage type duct type temperature and humidity
sensor
User Manual
File Version: V21.4.25
SM3710V2 using the standard DC0 ~ 10V voltage output signal,easy access to PLC， DCS and other
instruments or systems for monitoring temperature,humidity state quantities.The internal use of
high-precision sensing core and related devices to ensure high reliability and excellent long-term
stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and
other output methods.
best Industrial Co., Ltd
Page1
Sha nghai Son

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM3710V2 and is the answer not in the manual?

Questions and answers

Related Manuals for SONBEST SM3710V2

Summary of Contents for SONBEST SM3710V2

  • Page 1 User Manual File Version: V21.4.25 SM3710V2 using the standard DC0 ~ 10V voltage output signal,easy access to PLC， DCS and other instruments or systems for monitoring temperature,humidity state quantities.The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
  • Page 2 SM3710V2 Us er Ma nual Technical Parameters Technical parameter Parameter value Brand SONBEST Temperature measuring range 0~50℃/-20~80℃/-40~60℃ ±0.3℃ @25℃ Temperature measuring accuracy Range change mode DIP switch Humidity measuring range 0~100%RH ±3%RH @25℃ Humidity accuracy Output Interface DC0~10V Power...
  • Page 3 SM3710V2 Us er Ma nual Blue Temperature output In the case of broken wires, wire the wires as shown in the figure. If the product itself has no leads, the core color is for reference. How to use? 1. temperature and DC0-10Vvoltage computing relationship The product comes standard with 0~50°C/-20~80°C/-40~60°C multi-range.
  • Page 4 SM3710V2 Us er Ma nual As shown in the above formula, when measuring 5V, current DC0 -10Vvoltage is 25℃。 2. humidity and DC0-10Vvoltage computing relationship For example, the range is 0~100%RH, the analog output is 0~10V DC0 -10Vvoltage signal, humidity...
