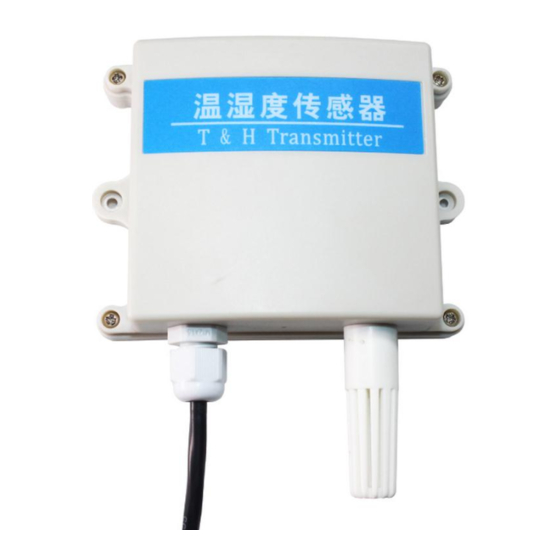

SONBEST SM2113B User Manual

Rs485 temperature and humidity sensor
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
http://www.sonbus.com/

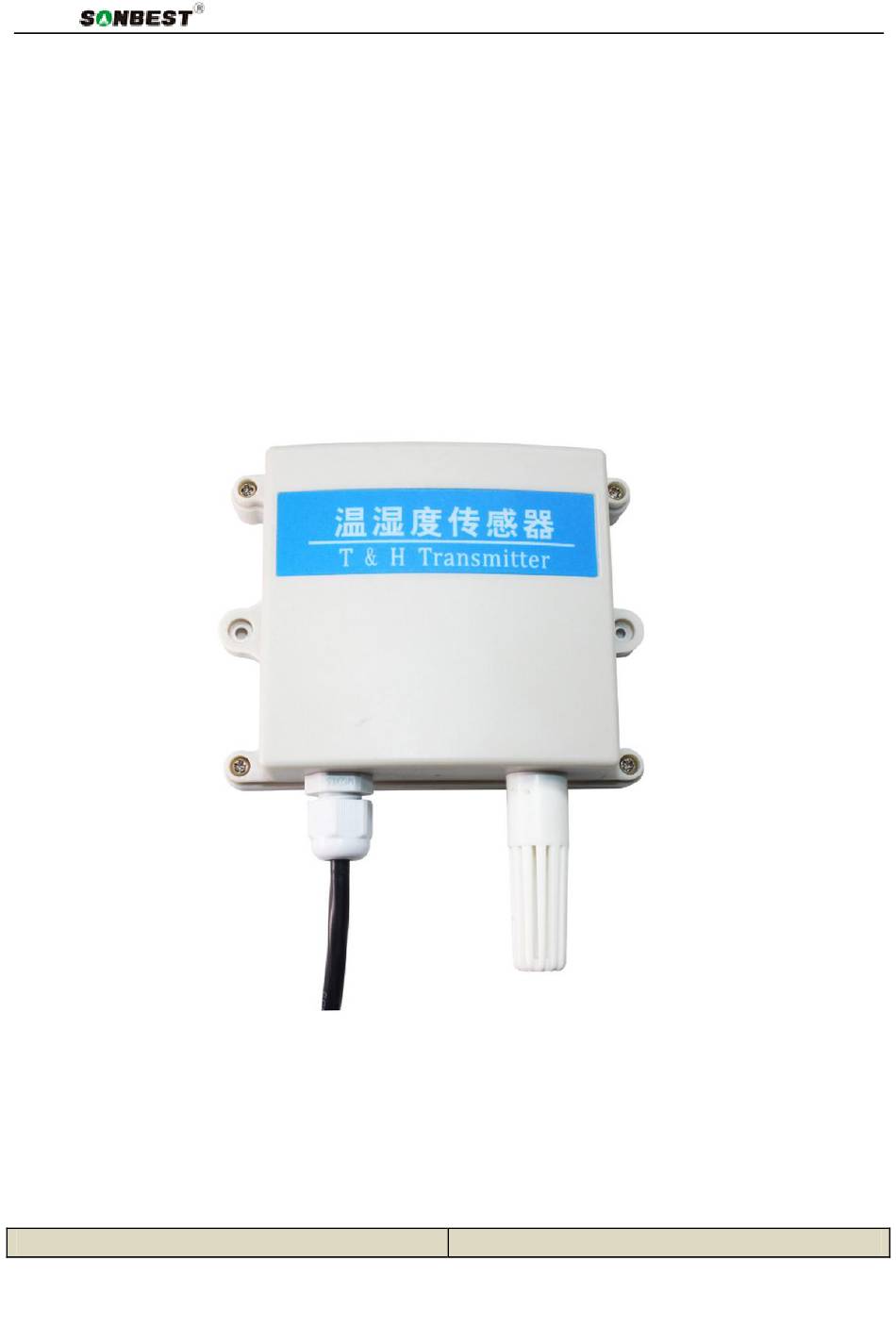

SM2113B Us er Ma nual
SM2113B
RS485 temperature and humidity sensor
User Manual
File Version: V21.3.24
SM2113B using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and
other instruments or systems for monitoring temperature,humidity state quantities.The internal use of
high-precision sensing core and related devices to ensure high r eliability and excellent long-term
stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and
other output methods.

Technical Parameters

Technical parameter
Parameter value
best Industrial Co., Ltd
Page1
Sha nghai Son

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM2113B and is the answer not in the manual?

Questions and answers

Related Manuals for SONBEST SM2113B

Summary of Contents for SONBEST SM2113B

  • Page 1 User Manual File Version: V21.3.24 SM2113B using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and other instruments or systems for monitoring temperature,humidity state quantities.The internal use of high-precision sensing core and related devices to ensure high r eliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
  • Page 2 SM2113B Us er Ma nual Brand SONBEST Temperature measuring range -30℃~80℃ ±0.5℃ @25℃ Temperature measuring accuracy Support sensor SHT20 Channels Input bus Humidity measuring range 0~100%RH ±3%RH @25℃ Humidity accuracy Communication Interface RS485 Default baud rate 9600 8 n 1...
  • Page 3 SM2113B Us er Ma nual Communication Protocol The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device is shipped, the default baud rate is 9600, 8, n, 1 1.
  • Page 4 SM2113B Us er Ma nual Device ID Function id Start Address Destination CRC16 00 66 00 02 E8 14 After the change is successful, the device will return information: 02 06 00 66 00 02 E8 27 , its format...
  • Page 5 SM2113B Us er Ma nual For the correct query command, the device will respond, for example the response data is: 01 03 02 00 64 B9 AF, the format of which is as shown in the following table: Device ID...
