SM2130B-PM25 Us er Ma nual

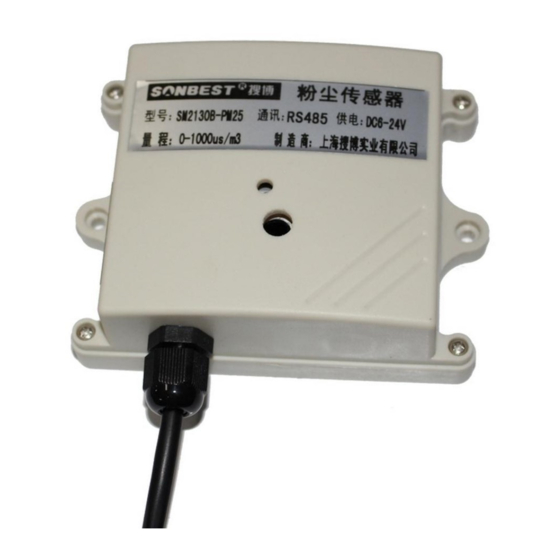

SM2130B-PM25
RS485 interface PM2.5 dust sensor
User Manual
File Version: V21.3.24
SM2130B-PM25 using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS
and other instruments or systems for monitoring PM2.5 state quantities.The internal use of high -precision
sensing core and related devices to ensure high reliability and excellent long-term stability,can be
customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output
methods.
Technical Parameters
Technical parameter
Parameter value
best Industrial Co., Ltd
Page1
Sha nghai Son
Advertisement
Table of Contents
Related Manuals for SONBEST SM2130B-PM25
Summary of Contents for SONBEST SM2130B-PM25
- Page 1 User Manual File Version: V21.3.24 SM2130B-PM25 using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and other instruments or systems for monitoring PM2.5 state quantities.The internal use of high -precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
- Page 2 SM2130B-PM25 Us er Ma nual Brand SONBEST PM2.5 range 0~999ug/m3 ±15% or ±10ug/m3 max @25℃ PM2.5 accuracy Communication Interface RS485 Default baud rate 9600 8 n 1 Power DC9~24V 1A Running temperature -40~80° C Working humidity 5%RH~90%RH Wiring instructions Any incorrect wiring can cause irreversible damage to the product.
- Page 3 SM2130B-PM25 Us er Ma nual 40105 00 68 mode read/write 40106 00 69 protocol read/write 1~10 3 read and modify device address (1) Read or query device address If you don't know the current device address and there is only one device on the bus, you can use the command FA 03 00 64 00 02 90 5F Query device address.
- Page 4 SM2130B-PM25 Us er Ma nual For example, changing the baud rate from 9600 to 38400, ie changing the code from 3 to 5, the command is: 01 06 00 67 00 05 F8 1601 03 00 66 00 01 64 15 .
- Page 5 SM2130B-PM25 Us er Ma nual Address:Building 8,No.215 North east road,Baoshan District,Sha nghai,China Web: http://www.sonbest.com Web: http://www.sonbus.com SKYPE: soobuu Email: sale@sonbest.com Tel: 86-021-51083595 / 66862055 / 66862075 / 66861077 best Industrial Co., Ltd Page5 Sha nghai Son...
