SM3568B Us er Ma nual

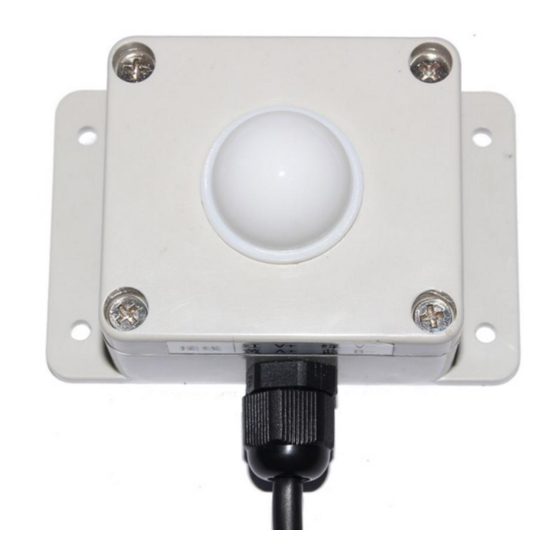

SM3568B
RS485 interface irradiance sensor
User Manual
File Version: V21.3.24
SM3568B using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and
other instruments or systems for monitoring Radioactivity state quantities.The internal use of high -precision
sensing core and related devices to ensure high reliability and excellent long-term stability,can be
customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output
methods.
Technical Parameters
Technical parameter
Parameter value
best Industrial Co., Ltd
Page1
Sha nghai Son
Advertisement
Related Manuals for SONBEST SM3568B
Summary of Contents for SONBEST SM3568B
- Page 1 User Manual File Version: V21.3.24 SM3568B using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and other instruments or systems for monitoring Radioactivity state quantities.The internal use of high -precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
- Page 2 SM3568B Us er Ma nual Brand SONBEST Radioactivity measuring range 0~2000W/M2 ±7% Radioactivity allow deviation ±5% Repeatability test Radioactivity detection chip Import digital Wavelength range 380nm~730nm Communication Interface RS485 Default baud rate 9600 8 n 1 Power DC9~24V 1A Running temperature -40~80°...
- Page 3 SM3568B Us er Ma nual 40102 00 65 total points read/write 1~20 40103 00 66 Device ID read/write 1~249 40104 00 67 baud rate read/write 40105 00 68 mode read/write 40106 00 69 protocol read/write 1~10 3 read and modify device address...
- Page 4 SM3568B Us er Ma nual 00 03 F8 45 coded according to baud rate, 03 is 9600, ie the current device has a baud rate of 9600. (2)Change the baud rate For example, changing the baud rate from 9600 to 38400, ie changing the code from 3 to 5, the command is: 01 06 00 67 00 05 F8 1601 03 00 66 00 01 64 15 .
- Page 5 SM3568B Us er Ma nual specifications and product descriptions may be modified at any time without notice. Contact Us Company: Shanghai Sonbest Industrial Co., Ltd Address:Building 8,No.215 North east road,Baoshan District,Shanghai,China Web: http://www.sonbest.com Web: http://www.sonbus.com SKYPE: soobuu Email: sale@sonbest.com Tel: 86-021-51083595 / 66862055 / 66862075 / 66861077 best Industrial Co., Ltd...
