JLL R200 Instruction Manual

Rowing machine storage

Hide thumbs Also See for R200:

Download this manual

INSTRUCTION GUIDE

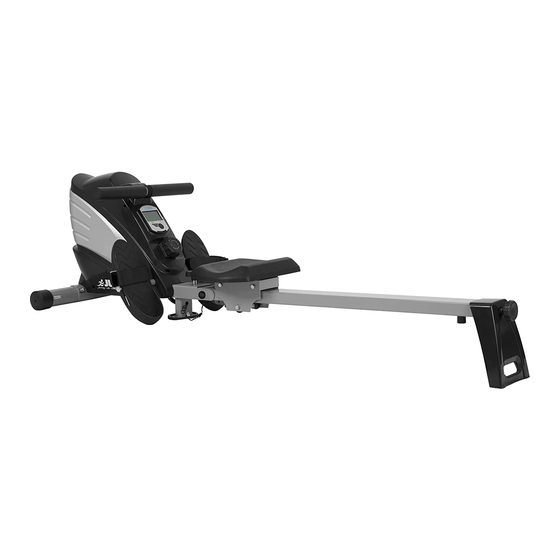

R200 ROWING MACHINE STORAGE

Need help?

Do you have a question about the R200 and is the answer not in the manual?

Page 1 INSTRUCTION GUIDE R200 ROWING MACHINE STORAGE...
Page 2 The contents of this manual are subject to change without notice to improve quality. © 2023 JLL Fitness Ltd JLL Fitness Ltd owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of JLL Fitness Ltd is prohibited.
Page 3 CONTENTS - Folding Instructions p. 4 - Contact Details p. 7...
Page 4: Folding Instructions
FOLDING INSTRUCTIONS Please follow the steps below for how to fold your rowing machine for maximum space efficiency: STEP 1 Start by unscrewing the large round flat knob closest to the base. This will be an M10 Knob, part no. 2 in your manual. STEP 2 Pull the spring loaded knob on the side of the slideway.
Page 5 STEP 3 Once the spring loaded knob is being pulled out, you can then fold up your slideway. STEP 4 Re-attach the M10 knob you first removed to the underside of the slideway.
Page 6 STEP 5 Remove the M10 knob from the end of the protective guard. STEP 6 Fold down the guard and re-attach the M10 knob to secure it.
Page 7: Contact Details
CONTACT DETAILS For any technical queries, product defects or damage or delivery questions please contact us using the details below: Tel: 0121 328 7507 Email: info@jllfitness.co.uk Live Chat: WWW.JLLFITNESS.CO.UK...
