1.0 SAFETY INFORMATION
•
The provision of the electrical supply and the connection of the unit to the electrical
supply must be carried out by a qualified electrician in accordance with latest edition of
the wiring regulations.
•
Isolate from power supply before removing any covers. During installation or
maintenance ensure all covers are fitted before switching on the mains supply.
•
All-pole disconnection from the mains as shown in the wiring diagram must be
incorporated within the fixed wiring and shall have a minimum contact separation of
3mm in accordance with latest edition of the wiring regulations.
•
This unit must be earthed.
•
Ducting must be securely fixed with screws to the spigot to prevent access to live
parts. Duct runs terminating close to the fan must be adequately protected by suitable
guards.
•
Precautions must be taken to avoid the back-flow of gases into the room from the open
flue of gas or other fuel-burning appliances.
•
This appliance should not be used by children or persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have
been given supervision or instruction concerning the safe use of the appliance by a
person responsible for their safety. Children shall not play with the appliance. Cleaning
and user maintenance shall not be carried out by children.
•
Other relevant safety information including that related to PPE, transportation,
installation, maintenance and operation can be found in the following instructions.
1.1 Hazard Symbols
GENERAL WARNING
Signifies a general warning regarding hazard specified by supplementary
information.
ELECTRIC SHOCK
This unit must be completely electrically isolated before any panels are
removed. Check mains supply and control connections.
ROTATING PARTS
This unit contains fast moving rotational parts which may start automatically. It
is the sole responsibility of the installer to adequately guard these components.
REFER TO INSTRUCTION MANUAL
Read and understand the installation and maintenance manual before
installing, operating or maintaining this product.
Nuaire | Western Industrial Estate | Caerphilly | CF83 1NA | nuaire.co.uk

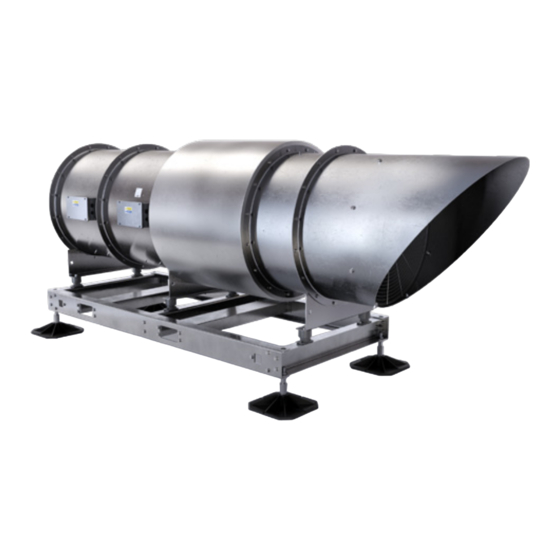

AxTân
Fire-Rated Axial Skid Assembly
Installation Manual
04. 04. 23. Document Number 672064
