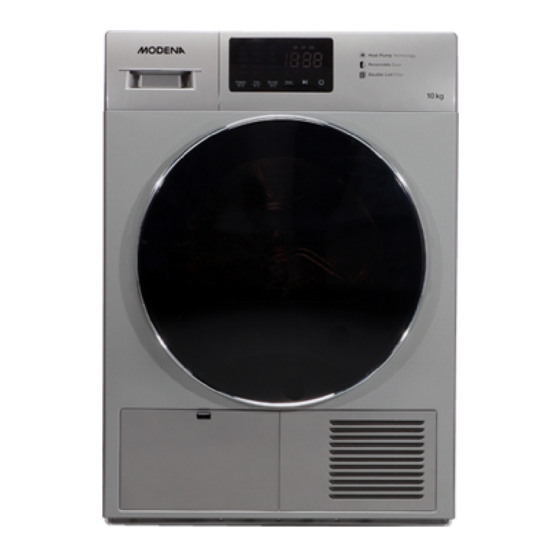

- Page 1 User Manual Book Dryer Efficace Series ED 8107 G...
-
Page 3: Table Of Contents
Cleaning the Humidity Sensor Cleaning the Door Winter Freezing Treatment Part 6: Troubleshooting Error Code Part 7: Specification This guide book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance trhough www.modena.com... -
Page 4: Part 1: Safety Information
PART 1: SAFETY INFORMATION Safety Precaution When installing, maintaining and using the dryer, please read these instructions carefully and operate with caution so as to make full use of the functions of the dryer and prolong the service life of the dryer. The Company shall not be liable for any loss caused by improper use. - Page 5 Please install the product in a This product is only applicable to place where the plug can be 220V. To ensure your safety, you easily plugged in and out when must use a three-core socket cleaning the product or store the and be careful to check that your product for a long time.
- Page 6 Please protect the power cord. Please grab the body when Do not place the power cord removing the plug. Do not pull carelessly so it is not trampled the cable as it may result in fire on, pressed, or clamped by other or electric shock caused by a objects.
- Page 7 Do not sprinkle the water directly Please be careful not to allow to the product during cleaning. pets or children to enter in the May result in short circuits or machine. May cause death due electric shocks. to suffocation or other injury. Do not put wet clothes that have If there is a dirt on the power not been spun or squeezed.
- Page 8 Do not attempt to repair the If there is a gas leak, open the air dryer by yourself or allow ventilation immediately and do inexperienced and unqualified not touch the power plug. personnel to do so. May cause Possible sparks leading to serious damage to the dryer and explosions or fires.
- Page 9 Please manage your If the product produces abnormal surroundings to prevent pets, sound, taste, smoke and other rats, insects, etc. from entering phenomenon, please contact the the product. Risk of damage to call center. May cause fire or power cords or fires. electric shock.
- Page 10 Do not place objects on top of This product is only used for the product because of the high drying. Using the product for temperature on the top and door other purposes may cause when the product is running. abnormal vibrations and may Please do not place objects on it, result in damage to product, which may cause deterioration or...
-
Page 11: Grounding Instruction
Grounding Instruction • This appliance must be grounded. When malfunction or breakdown occurs, grounding will reduce the risk of an electric shock by conducting the electric current to the ground. This appliance is equipped with a grounding-equipped conductor cord and a grounding plug. -
Page 12: Part 2: Name Of Parts
PART 2: NAME OF PARTS Control panel Water container Door Lint filter Cooling air inlet Adjustable foot Heat exchanger cover PART 3: INSTALLATION GUIDE Pre-Installation Consideration In order to avoid unnecessary fire, electric shock or personal injury hazards, all electrical wiring and grounding must be set in accordance with the national electrical standards. -
Page 13: Door Installation
• After installing the equipment in the desired position, adjust the horizontal foot of the dryer if the ground is uneven (do not insert wood chips or any other items under the foot). • Avoid direct sunlight and ensure that the room has good ventilation. •... - Page 14 Unscrew 5 screws with Hinge Hinge a phillips screwdriver and separate the mounting brackets (A) and (B) at the left and right of the clothes dryer door. Switch door hinge, part Hinge (B) and part (A) and tighten 5 screws with a phillips screwdriver.
-
Page 15: Adjusting The Leg
Adjusting the Leg Use a leveling tool to confirm that the dryer is installed horizontally. If not, adjust the horizontal foot as required. Connecting the Drain Hose If you don't want to use water container or if the dryer is stacked on the washer, you can connect a drain hose to the product. - Page 16 Plug the provided long drain hose into (A) pump outlet and make it fixed. Put the other side of the hose into floor drain. ATTENTION! • When connecting the drains, make sure that the highest point of the hose does not exceed the product top cover. •...
-
Page 17: Part 4: How To Use
PART 4: HOW TO USE Pre-Use Check Before first use, please check the following: Make sure that the power plug is plugged in 2. If you opt to use drain hose, please make sure that the drain hose is installed properly 3. -
Page 18: Cloth Classification
Cloth Classification • Please confirm the laundry label and select the drying mode as recommended. • Drying times and level depending on the type of clothing. • Do not dry the clothes that will shrink. • Please classify the clothes according to their type, size, color and material. - Page 19 Pull off power plug. Clean the filter and empty the Water container. ATTENTION! • Please make sure the filter is clean before usage • Please classify the clothes that will be dried • Do not drink the condensation water • Make sure no clothes between the door and the rubber sealing ring...
-
Page 20: Control Panel
Control Panel Power The power key switches the machine on and off. If the dryer is turned on and left idle for 5 minutes, the power is automatically switched off. Press the power key for 3 seconds to turn the machine off. Start/Pause Press this key to start or pause the drying process. - Page 21 Time Apply to Warm air and Cool air programs, adjust the programs duration. Buzzer Mute Setting Method: The buzzer function can be turned on or off by pressing the Time key for 3 seconds. Program Press the key to select the drying program. Child lock setting method: During operation, Child Lock the child lock function can be activated by...
-
Page 22: Drying Programs
Drying Programs Please follow the table below for optimum drying experience Rated Program Capacity Type of Clothes (kg) Cotton, linen, or blended fabrics Quick Two or three shirts Cotton Cotton and linen fabrics Baby Care Baby clothes and small clothes Synthetic Synthetic or blended fabrics Bedding... -
Page 23: Part 5: Maintenance
PART 5: MAINTENANCE Please make sure that the appliance is unplugged before performing cleaning or maintenance. Remove the power plug from electrical socket after power is switched off for safety. Do not touch with wet hands. dangerous substance such as gasoline, bleach, etc. -
Page 24: Emptying The Water Container
Emptying the Water Container Use both hands to hold and pull out the water container. Pour the water out and put it back on its place. ATTENTION! • Do not drink the condensed water • After usage, please empty the water container •... -
Page 25: Cleaning The Filter
Cleaning the Filter In order to reduce drying time and save energy, please clean the filter before and after use. Open the door and pull the filter up and out. Pull the internal filter up and out. Clean each filters with a brush and wash it with clean water. -
Page 26: Cleaning The Heat Exchanger
Cleaning the Heat Exchanger It is recommended to clean the heat exchanger once a month. Too much dust on the heat exchanger can cause product performance to degrade. Open the heat exchanger cover under the machine. (Open the lid by pressing it with your hand and pulling it outward) Rotate the two locking fasteners Pull out the handle... -
Page 27: Cleaning The Cooling Air Inlet
ATTENTION! • The surface of the heat exchanger is sharp, do not clean directly by hand. Please wear protective gloves. • Do not clean it too hard. Exerting pressure on the heat exchanger can cause the fins to deform. • Please do not sprinkle water directly to the heat exchanger Cleaning the Cooling Air Inlet If dust accumulates at the air inlet on... -
Page 28: Cleaning The Door
Cleaning the Door Dust or fluff may accumulate inside the door. Please clean with a soft cloth and brush. Note: Do not remove the rubber seal from the door! Winter Freezing Treatment If the temperature is below zero degrees Celsius and your dryer is frozen, the display will show "E1"... -
Page 29: Part 6: Troubleshooting
When not in use for a longtime It is recommend that you leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors forming within the appliance. Moving the appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. -
Page 30: Error Code
Problem Possible Cause Recommended Action Distortion of • • Improper Some clothes can be washed, but not clothes laundry properly dried. handling • Check the laundry washing mark on the clothes before drying Lint on the • • Dirty filter. Check if the filter is cleaned before placing clothes •... - Page 31 Code Meaning Possible Causes Air temperature sensor error Compressor temperature sensor Unplug and wait for a while before restarting. If the error problem occurs repeatedly, contact the call center Condenser exhaust pipe temperature sensor error Compressor failure System or motor Clean the filter and restart.
-
Page 32: Part 7: Specification
PART 7: SPECIFICATION Model ED 8107 G Type Freestanding Dry capacity (kg) Color Grey No. of programs Control panel Touch Ambient operating temperature (°C) 5-35 Delay start 1-24 hours Power Input (Watt) Voltage & Frequency 220V~50Hz Refrigerant R134a/390g Product dimension P x D x T (mm) 598×660×850 Product weight (kg) S = Stainless, R = Red, C = Cream, O = Orange, N = Green, U = Blue, W = White, V = Silver,... - Page 33 09/21 PT MODENA INDONESIA Jl. Industri Raya I Blok D-8, Jatiuwung, Tangerang 15135...
