User
Manual Book

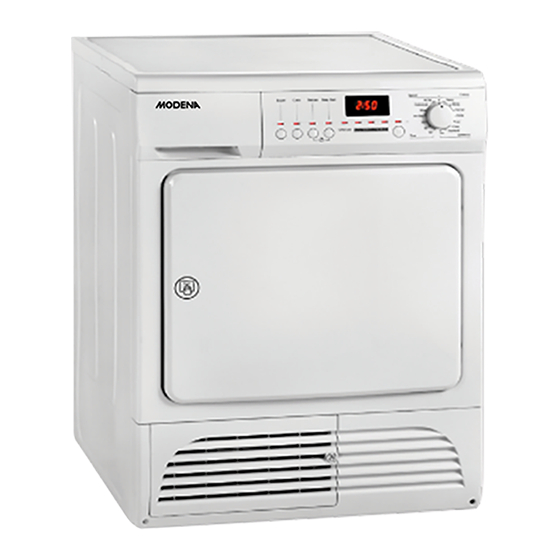

Electric Dryer
ED 850
ED 771 WAM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED 850 and is the answer not in the manual?

Questions and answers

Related Manuals for Modena ED 850

Summary of Contents for Modena ED 850

  • Page 1 User Manual Book Electric Dryer ED 850 ED 771 WAM...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PART 1: NAME OF PARTS ..................4 ED 850 ......................... 4 ED 771 WAM ......................5 PART 2: INSTALLATION..................6 PART 3: HOW TO USE .................... 9 ED 850 ....................... 10 ED 771 WAM ...................... 18 PART 4: INTERNATIONAL TEXTILE LABEL (ITCL) SYMBOLS ......19 PART 5: MAINTENANCE ..................

  • Page 4: Part 1: Name Of Parts

    PART 1: NAME OF PARTS ED 850 1. Control Panel 2. Condensed Water Container / Drain Box 3. Filter 4. Door 5. Condenser Door 6. Condenser 7. Feet...

  • Page 5: Ed 771 Wam

    ED 771 WAM 1. Control panel 2. Drum Light 3. Filter. 4. Adjustable Feet 5. Thermostat Reset Button 6. Side Vent Outlet 7. Vent Pipe Cover 8. Rear Vent Outlet...

  • Page 6: Part 2: Installation

    PART 2: INSTALLATION • Make sure the air hole on the front and the back part of the tumble dryer is not closed. • The back part of the tumble dryer will be very hot when it is turned on. •...
  • Page 7 50 C and higher than 350 C because it will affect the dryer performance. Water Output (ED 850) Condensed water is not always needed to be thrown away to the tank, if possible, the condensed water can also be drained directly.
  • Page 8 2. To set the height, it can be done by rotating the front part of the leg: to lower the unit, it can be done by rotating the leg counterclockwise. To heighten it, do the opposite rotation until the unit is not vibrating anymore when it is used.

  • Page 9: Part 3: How To Use

    PART 3: HOW TO USE Preparation Before Operating the Tumble Dryer 1. Make sure the electric source is in accordance with the installation guide. 2. Remove the polystyrene block and safety foam inside the drum. 3. Before it is used for the first time, it is recommended to clean the inside of the drum by putting several pieces of moist cloth to the inside of the drum and then dry it for 30 minutes.
  • Page 10 19. For maximum result of drying, spin or squeeze the laundry first before handing it to the tumble dryer. ED 850...
  • Page 11 Buzzer Button Button # 1 If the buzzer button is activated, there will be a sound/bell signal in the end of every program. Quick Button Button # 2 This function can reduce the drying time for 10 minutes. Delicate Button Button # 3 “Delicate”...
  • Page 12 Operation • Open the door of the tumble dryer, then put in the clothes that will be dried one by one, make sure the clothes do not get stuck on the door or the filter. • Choose the needed program by rotating the program knob. •...
  • Page 13 Buzzer Button After turning on the unit, buzzer will not be activated if you do not choose any operation. Buzzer function can be activated or non-activated during the process. By pressing the “Buzzer” button, the bell will ring, and buzzer indicator light will turn on. When the buzzer is active, there will be a sound signal in cases such as the following: - When pressing any button.
  • Page 14 Indicator light on display screen (ED 850). Indicator Light Will turn on after the drying usage, this is to remind you to clean the condenser.
  • Page 15 Indicator light on control panel This light shows these functions: “Child Lock” indicator light (ED 850): This light shows that the program is locked. “Drying” indicator light. This light shows that the drying process is operating. “Cooling” indicator light. This light shows that the cooling process is operating.
  • Page 16 “Child Lock” function (ED 850) When the machine is turned on, press the “Delicate” button and “Delay Start” together for some seconds, then the system will lock everything. To stop this function, press the same button together for some seconds.
  • Page 17 Thermostat Reset If during the operation the heating element doesn’t work, maybe the manual thermostat is disconnected. First, turn the program selector knob to “Air Dry” position, and start the Start Button. Approximately 20 minutes later, press the thermostat reset button. Thermostat...

  • Page 18: Ed 771 Wam

    ED 771 WAM : Buzzer Signals/sounds end of drying cycle : Gentle Reduces drying intensity (recommended for delicate items) : Overdry Protection Lamp The indicator lamp lights up when a humidity Controlled program is selected, to indicate the working protection function. Function is not active in time controlled programs 20’,30’, 40’,60’,90’, and “...
  • Page 19 Start/Pause Button The drying program is started by pressing this button. The indicator lamp flashes during the selection phase and lights up during drying. Filter The indicator lamp lights up when the filter needs cleaning. Clean the filter at the end of every cycle. Program Sequence Operation •...
  • Page 20 Automatic Controlled Drying This automatic drying is applicable for Cottons, Synthetics, Anti-bacterial of drying programs. The tumble dryer will detect the moisture level of the cloth that will be dried and automatically adjust the drying time according to the chosen drying program.
  • Page 21 When pressing any button At the end of the program If you press the “Buzzer” button once more when the buzzer is on, the buzzer will be switched off. Select Gentle The option can be selected in the following sections: “Cottons”, “Synthetics”.
  • Page 22 IMPORTANT If the drying program must be stopped before it reaches the end, before putting out the laundry, we recommend you rotate the program chooser knob to “air dry” position and wait until the cooling process is done. This is to avoid the heat piling in the machine.

  • Page 23: Part 4: International Textile Label (Itcl) Symbols

    PART 4: INTERNATIONAL TEXTILE LABEL (ITCL) SYMBOLS Pay attention to the drying symbol code that is attached to the cloth label. To take care of your clothes, it is better for you to pay attention to the drying code symbol before drying it with the machine. The explanation of the symbols is as follows: Can be dried using the tumble Drying...

  • Page 24: Part 5: Maintenance

    PART 5: MAINTENANCE MODENA tumble dryer is specially designed for long term usage thus it does not need complex maintenance. However, some maintenance procedures below are recommended for your tumble dryer maintenance. Before doing the maintenance, make sure that the unit is not connected to the electrical source.
  • Page 25 WARNING Dryer must always be used with the filter Emptying the water container (ED 850): Water container holds all the water from the condenser. The water container needs to be emptied after each use. If not, it will decrease the performance of the dryer.
  • Page 26 1. Pull the water container 2. Take the water out Cleaning out the water condenser (ED 850): The condenser is a very important part in the process of drying. Thus it requires special attention. It is recommended that you clean the condenser three or four times in a year.
  • Page 27 In the process, the temperature sensor measures the humidity level of the clothing. So, the sensor surface should always be in a clean condition. Replacing the lamp (ED 850): 1. Open the door of the unit, remove the screws inside the drum lights and remove the lamp cover.

  • Page 28: Part 6: Precautions

    PART 6: PRECAUTIONS Important Safety Information should always be noticed when using this dryer: Clothes with metal accessories are not allowed to be dried with dryer. Dryer will be damaged if the metal accessories are detached off when drying. Please use the drying rack to dry clothes with metal accessories.
  • Page 29 Do not plug in or out the The machine must be power plug to the socket connected to a power extension lead. with wet hands. supply with an efficient grounding, according to the law. After usage, it is expose advisable machine directly under Do not pull the cable to to disconnect the...

  • Page 30: Part 7: Problems And Solving

    PART 7: PROBLEMS AND SOLVING Do a checking for these problems below before contacting our call center if there is problem in the operation: Check: Are the heater settings correct? Are the timer settings correct? Is the filter / lint filter has been cleaned? Dirty filters will hinder the air circulation.
  • Page 31 1. The error code table in appendix to find the problems. If the problem cannot be identified or resolved, immediately contact MODENA call center. Before contacting MODENA call center, check the record unit model, serial number and date of purchase of units: The call center will require this information.

  • Page 32: Part 8: Specifications

    PART 8: SPECIFICATIONS Model ED 850 ED 771 WAM Tumble Dryer Tumble Dryer Type of dryer (Condenser) (Vented) Dryer capacity (kg) Color White White Drying time (min) Ideal load for Cotton (kg) Ideal load for Synthesis (kg). Drum Material Stainless...

  • Page 33: Appendix: Drying Loads Recommendations

    Cotton, linen: drum is full but not too tightly packed; Synthetic material: do not fill the drum more than half-full; Delicate fabrics and wool do not fill the drum more than a quarter full. Clothing weight (ED 850) The following weights are indicative: Bathrobe...
  • Page 34 For clothes and underwear. 3/4 kg Specials To refresh clean clothes which are unused for a long Air Dry 2/8 kg 6/7 kg time. Note: to dry bath robes and towels, the maximum weight should not exceed 6 kilos (ED 850).

  • Page 35: Appendix: Error Code

    Appendix: Error Code The following error codes that probably appear on the display of the tumble dryer: Error POSSIBLE MALFUNCTION SOLUTION Code CAUSE 1. Does the sensor malfunction? 1. Replace the 2. Is the plug temperature sensor plugged in sensor 2.
  • Page 36 1. Is the plug plugged in 1. Re-plug in the firmly? plug door open 2. Is the Micro- 2. Replace the switch Micro-switch malfunctioned? 1. Is the condenser installed properly? Re-install 2. Is the Micro- condenser properly condenser switch and replace the malfunctioned? Micro-switch 3.
  • Page 37 11/20...
