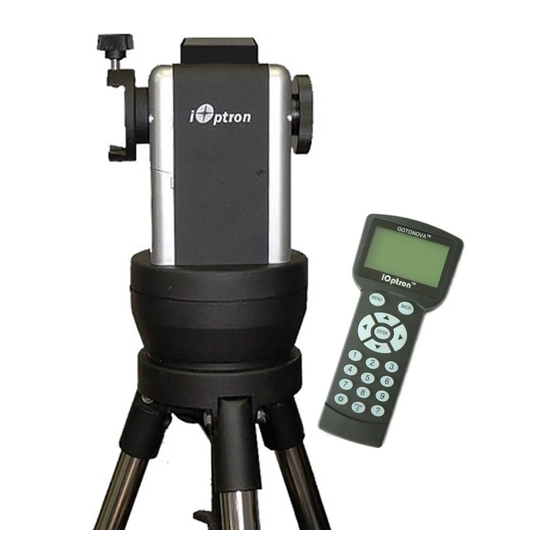

SmartStar® CubePro™ GOTO AltAz Mount with GPS
#8200
FEATURES
•
Alt‐Azimuth Mount– The Cube™‐‐ The only mount of its kind for ultimate rotation
•
Includes the GoToNova
•
130,000 object database with 256 user‐defined objects
•
The largest LCD screen on the market with 8 lines and 21‐character Hand Control with backlit
LED buttons.
•
USB Port for PC Laptop control and firmware upgrades (ASCOM protocol)
•
Metal worm & gear for increased stability & performance
•
Drive motor with 9‐speed setting for precise tracking
•
Dual‐axis Servomotor
•
Standard‐equipment AC adaptor (Optional DC adaptor available)
•
1‐inch full height tripod with metal hinges
•
Built‐in 32‐Channel GPS
•
12 lb. payload
PACKAGE CONTENTS
•
Telescope Mount (with built‐in GPS)
•
AC Adaptor with cord
•
#8401 Hand Controller
•
Controller Cable
•
Tripod
•
Tripod bolt (with black shaft) and Tray Lock
•
Tripod Tray
•
1.5 kg Counterweight
ONLINE CONTENTS (click under "Support" menu) www.iOptron.com
•
Manuals
(you will need to refer to the manual for details on set‐up and operation).
•
Tips for set up
•
Hand controller firmware upgrades (check online for latest version)
•
Reviews and feedback from other customers
iOptron Corp. | 6F Gill Street | Woburn, MA 01801 USA | (781) 935‐2800 | Toll Free (866) 399‐4587 | www.iOptron.com
TM
Controller. The most intuitive controller on the market.
Advertisement
Related Manuals for iOptron SMARTSTAR CUBEPROTM 8200
Summary of Contents for iOptron SMARTSTAR CUBEPROTM 8200
- Page 1 Dual‐axis Servomotor • Standard‐equipment AC adaptor (Optional DC adaptor available) • 1‐inch full height tripod with metal hinges • Built‐in 32‐Channel GPS • 12 lb. payload PACKAGE CONTENTS • Telescope Mount (with built‐in GPS) • AC Adaptor with cord • #8401 Hand Controller • Controller Cable • Tripod • Tripod bolt (with black shaft) and Tray Lock • Tripod Tray • 1.5 kg Counterweight ONLINE CONTENTS (click under “Support” menu) www.iOptron.com • Manuals (you will need to refer to the manual for details on set‐up and operation). • Tips for set up • Hand controller firmware upgrades (check online for latest version) • Reviews and feedback from other customers iOptron Corp. | 6F Gill Street | Woburn, MA 01801 USA | (781) 935‐2800 | Toll Free (866) 399‐4587 | www.iOptron.com Controller. The most intuitive controller on the market. ...
- Page 2 Quick Set‐up Note: This is a brief outline for getting started. Please refer to the full manual at www.iOptron.com for details. 2) Up 1)South iOptron Corp. | 6F Gill Street | Woburn, MA 01801 USA | (781) 935‐2800 | Toll Free (866) 399‐4587 | www.iOptron.com Step 1. Extend tripod legs to full extension. Step 2. Attach mount to tripod using the long bolt (#7). Slide tray on bottom of shaft. Then screw on round black knob (#9). Step 3.
- Page 3 • • • • iOptron Corp. | 6F Gill Street | Woburn, MA 01801 USA | (781) 935‐2800 | Toll Free (866) 399‐4587 | www.iOptron.com (add or subtract 60 minutes per time zone) New York City is 300 minutes “behind” UT Los Angeles is 480 minutes “behind” UT Rome is 60 minutes “ahead” of UT Sydney is 600 minutes “ahead” of UT...
- Page 4 Inner support /Tripod bolt. Tray Tray lock 10. Counterweight (not shown)* *To install counterweight remove Altitude Lock (#4). Screw bar onto threads. Then place counterweight onto end of bar. Secure the counterweight by tightening down with screw. iOptron Corp. | 6F Gill Street | Woburn, MA 01801 USA | (781) 935‐2800 | Toll Free (866) 399‐4587 | www.iOptron.com Step 11. Select and Slew to an object The mount is now ready to GOTO and track objects. Go to: Menu>Select and Slew Press ENTER. Step 12.
