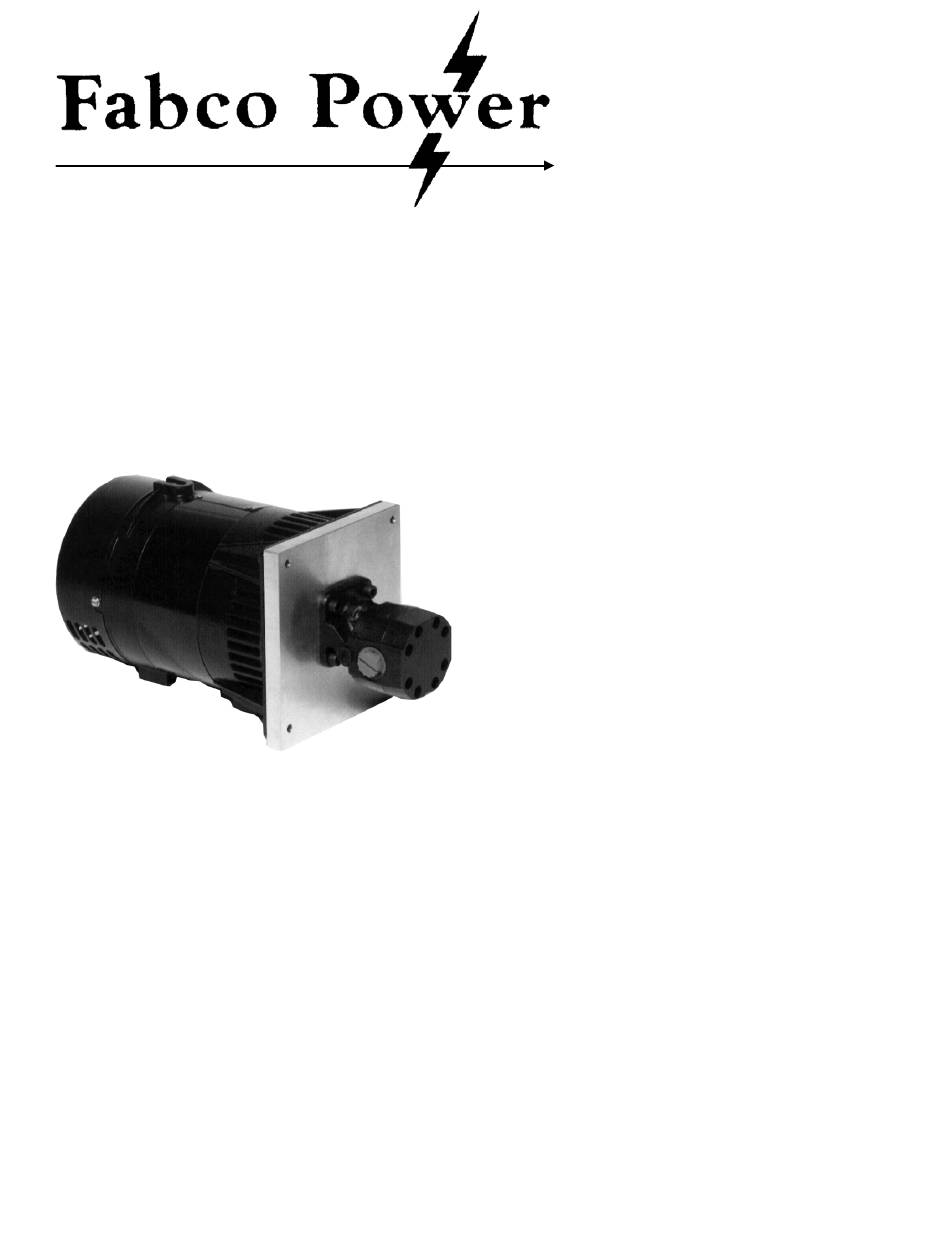

Setting the Standard in Mobile Power

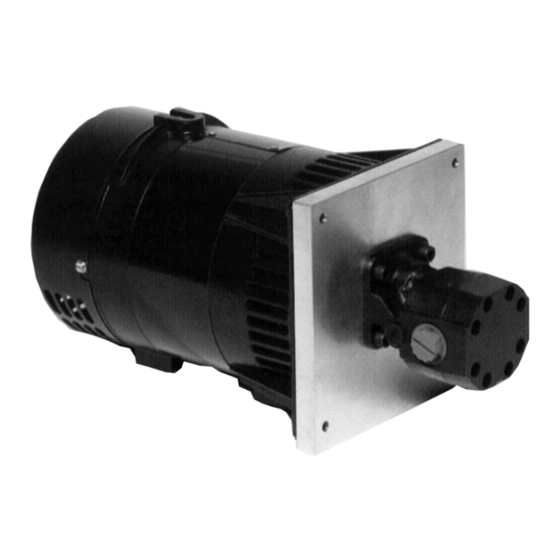

Instruction Manual for Model
HYDRO - 300CX - 4.5 – 60HZ-G
HYDRAULIC GENERATOR
Manufacturing of: Vehicle Mounted Generators • Hydraulic Generators
P.O. Box 582 • Chester, NY 10918 • 845-469-9151 • Fax: 845-469-7871 • Web Site/E-mail: www.fabcopower.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDRO 300CX-4.5-60HZ-G and is the answer not in the manual?

Questions and answers

Related Manuals for Fabco Power HYDRO 300CX-4.5-60HZ-G

Summary of Contents for Fabco Power HYDRO 300CX-4.5-60HZ-G

  • Page 1 Setting the Standard in Mobile Power Instruction Manual for Model HYDRO - 300CX - 4.5 – 60HZ-G HYDRAULIC GENERATOR Manufacturing of: Vehicle Mounted Generators • Hydraulic Generators P.O. Box 582 • Chester, NY 10918 • 845-469-9151 • Fax: 845-469-7871 • Web Site/E-mail: www.fabcopower.com...
  • Page 2 Fabco Power Instruction Manual GENERAL INFORMATION MODEL: HYDRO 300CX – 4.5 – 60HZ-G GENERATOR .... BRUSHLESS GENERATOR .... 3600 (50 Hz) GENERATOR VOLTAGE .... 120 or 120/240 MOTOR STARTING .... 300% SURGE VOLTAGE REGULATOR .... INHERENT OUTPUT .... 3000 WATTS CONTINUOUS 3500 WATTS PEAK AT 100°F OIL TEMPERATURE...

  • Page 3: Installation Tips

    Fabco Power Instruction Manual RECOMMENDATIONS MODEL: HYDRO 300CX-4.5-60HZ-G HIGH PRESSURE LINE ......½ inch LOW PRESSURE LINE ......¾ inch FLOW RATE .......... 4.5 GPM FOR BEST RESULTS KEEP HYDRAULIC OIL TEMPERATURE BETWEEN 80°F AND 120°F. DO NOT EXCEED 175°F.
  • Page 4 Fabco Power Instruction Manual Initial Installation and Start-Up Be sure you set the hydraulic flow (GPM) to the generator at Approximately 62.5 HZ or 3750 RPM with NO electrical load on the generator. By using this setting you will have approximately 60HZ (cycles) or 3600 RPM when you are running at full rated load.

  • Page 5: Technical Information

    Fabco Power Instruction Manual TECHNICAL INFORMATION These self-excited and self-regulating generators, although overall dimensions have been reduced to a minimum, are designed for high-level electrical performance and the maximum in operating reliability. PRELIMINARY CHECKS: Before touching the machines, perform a thorough and in depth visual inspection, checking that components are correctly connected up and that no cables or terminals are broken or loose.

  • Page 6: Troubleshooting

    Fabco Power Instruction Manual TROUBLE SHOOTING PROBLEMS CAUSES REMEDIES Low Speed 1. Check RPM and set at nominal ALTERNATOR EXCITATION FAILURE value. Faulty capacitor 2. Check and replace. Faulty winding 3. Check that winding resistance is as shown in the tables.

  • Page 7: Parts Breakdown

    Fabco Power Instruction Manual PARTS BREAKDOWN HYDO 300CX-4.5-60HZ-G No. PART # DESCRIPTION 572325 Rear End Cover 572326 Rear End Casting 572586 Stator 572238 Drive End Casting 572585 Rotor 572330 Fan 572064 Rear Bearing 572154 Rubber Mounts 572206 Flow Control Cartridge 6gpm 572583 Hyd.Motor...
  • Page 8 Fabco Power Instruction Manual HYDRAULIC MOTOR HOSE HOOK-UP Fabco Power • Page 8 •...
  • Page 9 Fabco Power Instruction Manual • Page 9 •...
