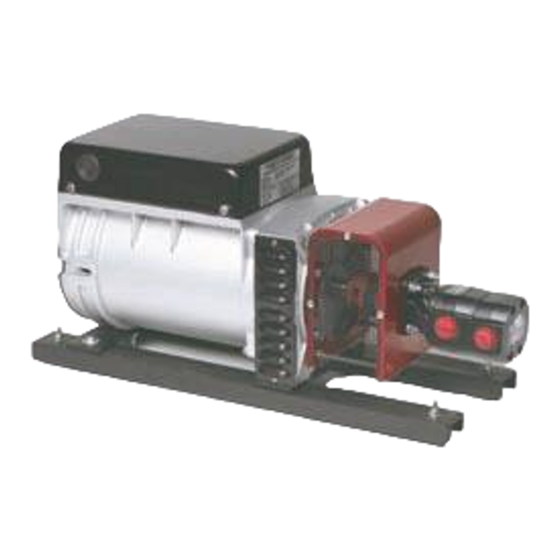

- Page 1 Setting the Standard in Mobile Power Instruction Manual for Model HYDRO 350X-50HZ 2 WIRE Hydraulic Generator Manufacturing of: Vehicle Mounted Generators • Hydraulic Generators P.O. Box 582 • Chester, NY 10918 • 845-469-9151 • Fax: 845-469-7871 • Web Site/E-mail: www.fabcopower.com...
- Page 2 Fabco Power Instruction Manual GENERAL INFORMATION MODEL: HYDRO 350X-50HZ GENERATOR .... BRUSHLESS GENERATOR .... 3000 (50 Hz) GENERATOR VOLTAGE .... 120 or 120/240 MOTOR STARTING .... 300% SURGE VOLTAGE REGULATOR .... INHERENT OUTPUT .... 3500 WATTS CONTINUOUS AT 100°F OIL TEMPERATURE HYDRAULIC MOTOR ....
-
Page 3: Installation Tips
Fabco Power Instruction Manual RECOMMENDATIONS MODEL: HYDRO 350X-50HZ HIGH PRESSURE LINE ......½ inch LOW PRESSURE LINE ......¾ inch FLOW RATE .......... 8 to 25 GPM (8 GPM IDEAL) FOR BEST RESULTS KEEP HYDRAULIC OIL TEMPERATURE BETWEEN 80°F AND 120°F. - Page 4 Fabco Power Instruction Manual Initial Installation and Start-Up Be sure you set the hydraulic flow (GPM) to the generator at Approximately 52.5 HZ or 3150 RPM with NO electrical load on the generator. By using this setting you will have approximately 50HZ (cycles) or 3000 RPM when you are running at full rated load.
-
Page 5: Technical Information
Fabco Power Instruction Manual TECHNICAL INFORMATION These self-excited and self-regulating generators, although overall dimensions have been reduced to a minimum, are designed for high-level electrical performance and the maximum in operating reliability. Before touching the machines, perform a thorough and in depth visual... -
Page 6: Electrical Connections
Fabco Power Instruction Manual 350X 50HZ TWO WIRE ELECTRICAL CONNECTIONS CONNECT NEUTRAL TO GROUND IF USING GFCI OUTLETS NEUTRAL (WHITE) 240 VOLT OPERATION RED OR BLACK WIRE 15 AMP 25 AMP OVERLOAD OV25 ERLOAD SELF RE-SETTING SELF RE-SETTING RED OR... -
Page 7: Parts Breakdown
Fabco Power Instruction Manual PARTS BREAKDOWN HYDRO 350X50 hz No. PART # DESCRIPTION 572262 Louvered Panel 572308 Frame For Stator 572182 Drive End Bell 3 a 572265 Screen 572235 Front Bearing 572184 Fan 572307 Rotor 572064 Rear Bearing 572186 User Terminal Board... -
Page 8: Troubleshooting
Fabco Power Instruction Manual TROUBLE SHOOTING PROBLEMS CAUSES REMEDIES ALTERNATOR EXCITATION Low Speed 1. Check RPM and set at nominal FAILURE value. Faulty capacitor 2. Check and replace. Faulty winding 3. Check that winding resistance is as shown in the tables. - Page 9 Fabco Power Instruction Manual FIXED DISPLACEMENT TYPE GEAR PUMP TYPICAL HYDRAULIC SCHEMATIC 1. HYDRAULIC PUMP 2. PRESSURE RELIEF VALVE 3. CONTROL VALVE 4. PRIORITY FLOW CONTROL* 5. GENERATOR HYRAULIC MOTOR 6. CASE DRAIN LINE** 7. RETURN LINE FILTER 8. OIL COOLER 9.
- Page 10 Fabco Power Instruction Manual BRUSHLESS GENERATOR WIRING • Page 10 •...
- Page 11 Fabco Power Instruction Manual HYDRAULIC MOTOR HOSE HOOK-UP Fabco Power • Page 11 •...
- Page 12 Fabco Power Instruction Manual • Page 12 •...
- Page 13 Fabco Power Instruction Manual • Page 13 •...
