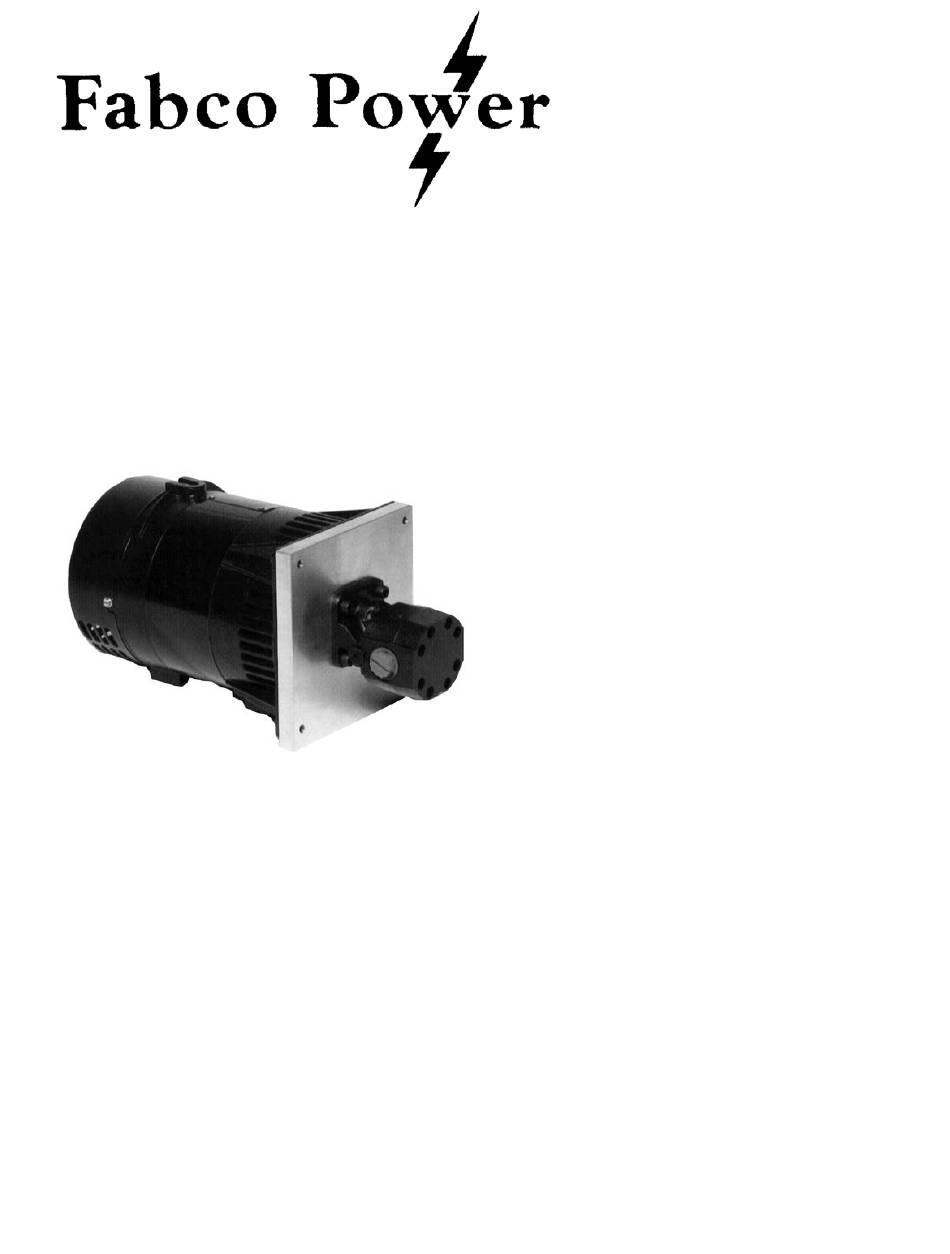

- Page 1 Setting the Standard in Mobile Power Instruction Manual for Model HYDRO 300C Hydraulic Generator Manufacturing of: Vehicle Mounted Generators • Hydraulic Generators P.O. Box 582 • Chester, NY 10918 • 845-469-9151 • Fax: 845-469-7871 • Web Site/E-mail: www.fabcopower.com...
- Page 2 Fabco Power Instruction Manual GENERAL INFORMATION MODEL: HYDRO 300C GENERATOR .... BRUSHLESS GENERATOR .... 3600 (60 Hz) GENERATOR VOLTAGE .... 120 or 120/240 MOTOR STARTING .... 300% SURGE VOLTAGE REGULATOR .... INHERENT OUTPUT .... 3000 WATTS CONTINUOUS 4000 WATTS PEAK AT 100°F OIL TEMPERATURE...
-
Page 3: Installation Tips
Fabco Power Instruction Manual RECOMMENDATIONS MODEL: HYDRO 300C HIGH PRESSURE LINE ......½ inch LOW PRESSURE LINE ......¾ inch FLOW RATE .......... 8 to 25 GPM (8 GPM IDEAL) FOR BEST RESULTS KEEP HYDRAULIC OIL TEMPERATURE BETWEEN 80°F AND 120°F. - Page 4 Fabco Power Instruction Manual Initial Installation and Start-Up Be sure you set the hydraulic flow (GPM) to the generator at Approximately 62.5 HZ or 3750 RPM with NO electrical load on the generator. By using this setting you will have approximately 60HZ (cycles) or 3600 RPM when you are running at full rated load.
-
Page 5: Technical Information
Fabco Power Instruction Manual TECHNICAL INFORMATION These self-excited and self-regulating generators, although overall dimensions have been reduced to a minimum, are designed for high-level electrical performance and the maximum in operating reliability. PRELIMINARY CHECKS: Before touching the machines, perform a thorough and in depth visual inspection, checking that components are correctly connected up and that no cables or terminals are broken or loose. -
Page 6: Troubleshooting
Fabco Power Instruction Manual TROUBLE SHOOTING PROBLEMS CAUSES REMEDIES Low Speed 1. Check RPM and set at nominal ALTERNATOR EXCITATION FAILURE value. Faulty capacitor 2. Check and replace. Faulty winding 3. Check that winding resistance is as shown in the tables. -
Page 7: Parts Breakdown
Fabco Power Instruction Manual PARTS BREAKDOWN HYDRO 300C PART # DESCRIPTION 572235 Rear End Cover 572326 Rear End Casting 572327 Stator 572238 Drive End Casting 572329 Rotor 572330 Fan 572064 Rear Bearing 572154 Rubber Mounts 572579 Motor 8gpm No Flow Control... - Page 8 Fabco Power Instruction Manual HYDRAULIC MOTOR HOSE HOOK-UP Fabco Power • Page 8 •...
- Page 9 Fabco Power Instruction Manual FIXED DISPLACEMENT TYPE GEAR PUMP TYPICAL HYDRAULIC SCHEMATIC 1. HYDRAULIC PUMP 2. PRESSURE RELIEF VALVE 3. CONTROL VALVE 4. PRIORITY FLOW CONTROL* 5. GENERATOR HYRAULIC MOTOR 6. CASE DRAIN LINE** 7. RETURN LINE FILTER 8. OIL COOLER 9.
- Page 10 Fabco Power Instruction Manual • Page 10 •...
- Page 11 Fabco Power Instruction Manual • Page 11 •...
- Page 12 Fabco Power Instruction Manual • Page 12 •...
- Page 13 Fabco Power Instruction Manual • Page 13 •...
- Page 14 Fabco Power Instruction Manual • Page 14 •...
- Page 15 Fabco Power Instruction Manual • Page 15 •...
